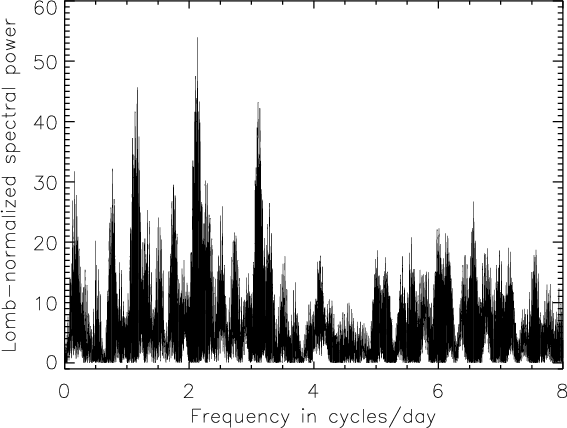

$\begin{figure} \par\includegraphics[angle=90,width=8cm,clip]{7355f1.ps} \end{figure}$ Figure 1: Lomb periodogram for the 2005FY₉'s relative photometry showing several peaks (in cycles per day). The highest peaks are at 2.134 cycles/day (P=11.24 h), 2.103 cycles/day (P=11.41 h), and 1.167 cycles/day (P=20.57 h), which appears to be an alias.
Open with DEXTER

In the text

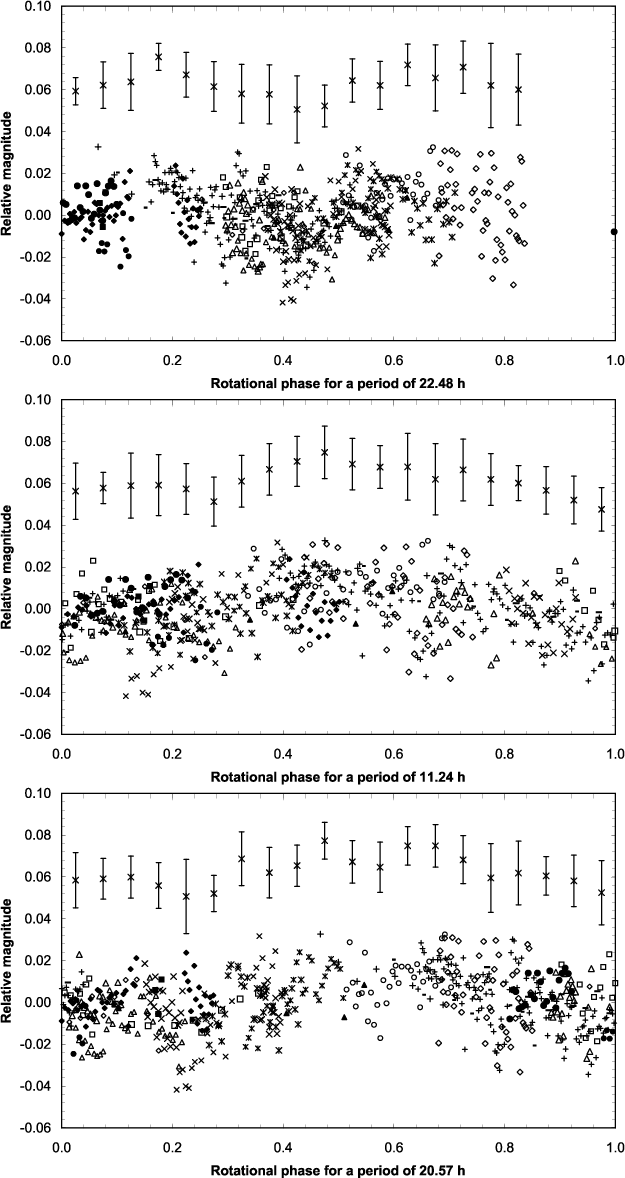

$\begin{figure} \par\includegraphics[angle=-90,width=8.8cm,clip]{7355f2a.eps} \in... ...2b.eps} \includegraphics[angle=-90,width=8.8cm,clip]{7355f2c.eps} \end{figure}$ Figure 2: Lightcurves (relative magnitudes vs. rotational phase) for the three possible periods. Top: for a 22.48 h period. Middle: for a 11.24 h period. Bottom: for a 20.57 h period. The plots also show the phase curves obtained by median-averaging the actual photometric data in rotational phase bins of 0.05 and displaced +0.06 mags in the y-axis. Error bars (standard deviation of the data in the phase bins) are shown in the median plots. The different symbols in the plots correspond to different observing dates.
Open with DEXTER

In the text

$\begin{figure} \par\includegraphics[angle=90,width=8cm,clip]{7355f1.ps} \end{figure}$	Figure 1: Lomb periodogram for the 2005FY₉'s relative photometry showing several peaks (in cycles per day). The highest peaks are at 2.134 cycles/day (P=11.24 h), 2.103 cycles/day (P=11.41 h), and 1.167 cycles/day (P=20.57 h), which appears to be an alias.
