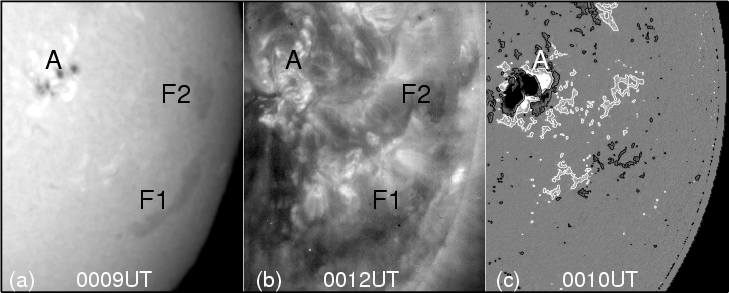

$\begin{figure} \par\includegraphics[width=11.2cm,clip]{5471f01.eps} \end{figure}$ Figure 1: Various features observed on the solar disk near the west limb by different instruments early on October 26, 2003: a) H $\alpha$ image at 00:09 UT, b) EIT 195 Å image at 00:12 UT, c) MDI longitudinal magnetogram at 00:10 UT - the white (black) patches represent positive (negative) polarities, contour levels at $\pm$ 60 Gauss. The active region AR 10484 with $\beta -\gamma -\delta$ magnetic configuration is indicated by A, and the two filaments by F1 and F2, respectively.
Open with DEXTER

In the text

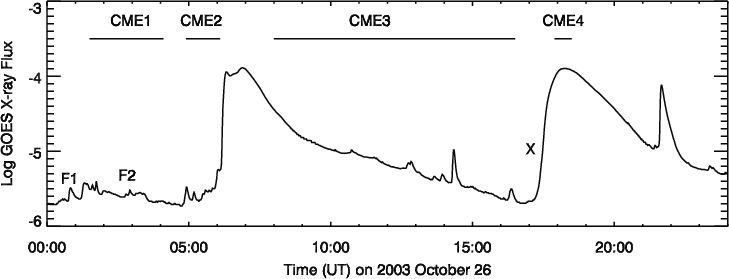

$\begin{figure} \par\includegraphics[width=11.2cm,clip]{5471f02.eps} \end{figure}$ Figure 2: Plot of the GOES X-ray flux in the lower energy channel (1-8 Å) versus time on October 26, 2003. The horizontal solid lines mark the time interval when the CMEs are visible in the field of view of LASCO C2. The onset time of the eruption of filaments F1 and F2, as well as that of the X1.2 X-ray flare are indicated by F1, F2, and X respectively. No on-disk activity associated with CME3 was detected.
Open with DEXTER

In the text

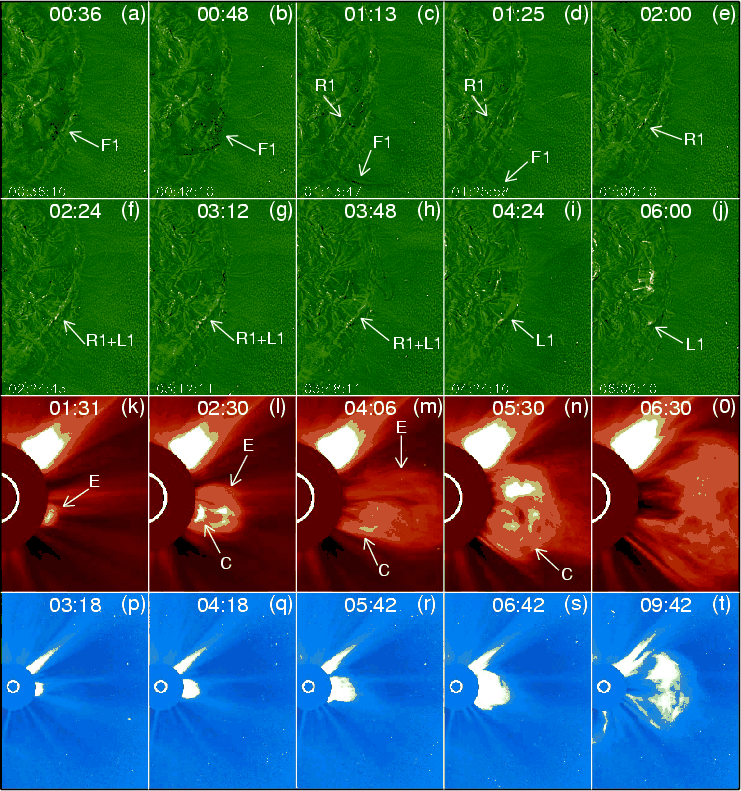

$\begin{figure} \par\includegraphics[width=11.4cm,clip]{5471f03.eps} \end{figure}$ Figure 3: EIT and LASCO C2/C3 time sequence of Event 1. The EIT 195 Å images ( upper two rows) show the eruptive process of filament F1 (indicated by arrow F1) in the lower corona. The WICE technique was used to enhance fine structures of filaments and flare ribbons. When the filament F1 reached certain height, flare-ribbons appeared at the two sides of the place where F1 used to sit (indicated by the arrow R1). They later connected themselves by loops (indicated by the arrow L1). The LASCO C2 and C3 white light images ( lower two rows) show the development of CME1 between 2 and 30 $R_{\odot }$ . The leading edge of CME1 is pointed out with the arrow E, while the core is indicated by the arrow C.
Open with DEXTER

In the text

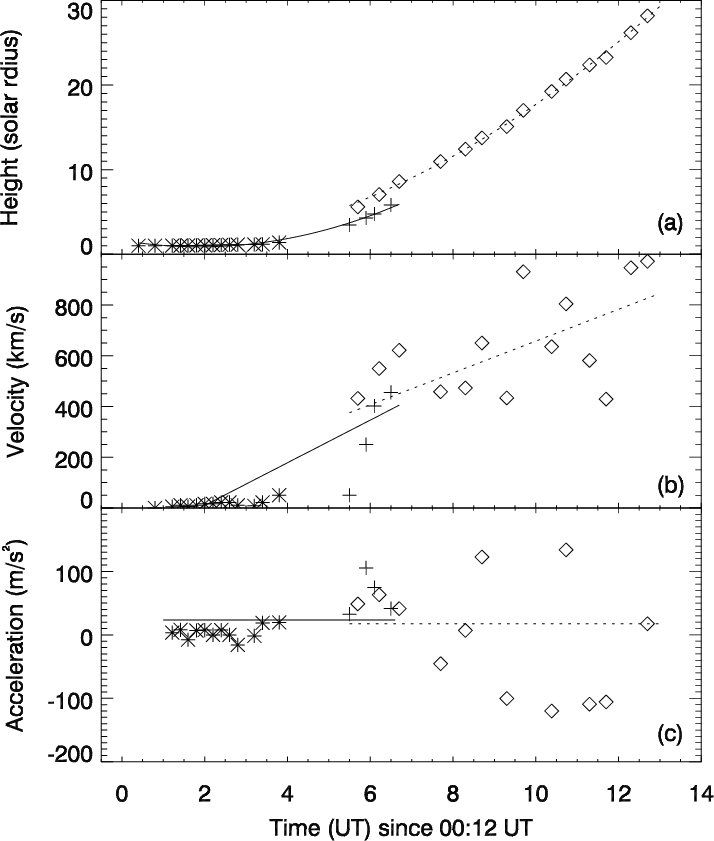

$\begin{figure} \par\includegraphics[width=9cm,clip]{5471f04.eps} \end{figure}$ Figure 4: a) Height-time, b) velocity-time, and c) acceleration-time profiles of CME1 leading edge ( $\diamondsuit$ ) in the C2 FOV, and filament F1 in the FOV of i) EIT 195 Å ( $\ast$ ); ii) H $\alpha$ ( $\bigtriangleup$ ); and iii) LASCO C2 (core of CME1, +) images. The solid line indicates the fitting result to the F1 height-time data according to Eq. (1), the dashed line indicates the quadratic fitting based on Eq. (1) to the CME1 height-time data for a₃=0. The time of t=0 for fittings is 00:00 UT.
Open with DEXTER

In the text

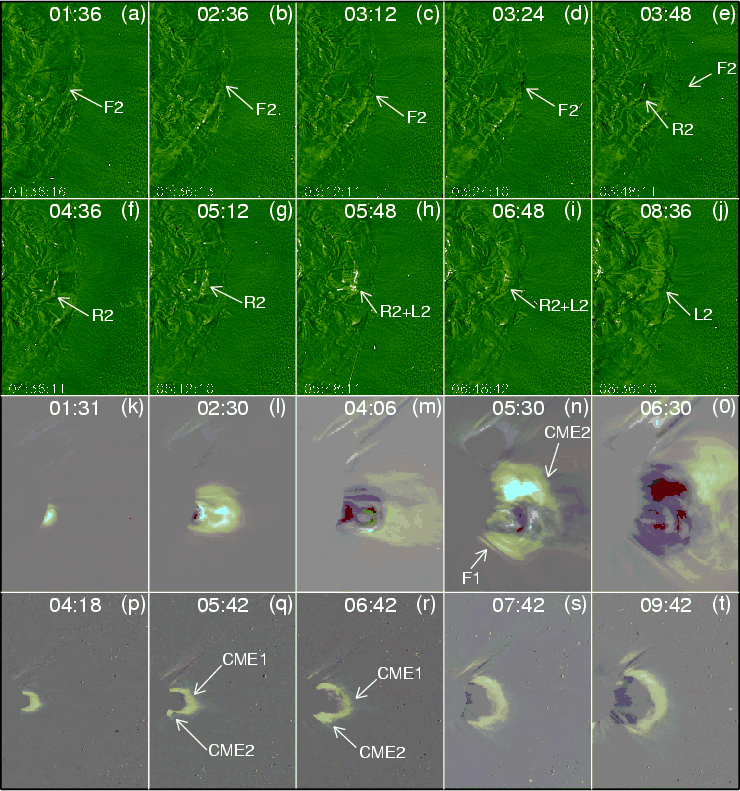

$\begin{figure} \includegraphics[width=11.4cm,clip]{5471f05.eps} \end{figure}$ Figure 5: EIT and LASCO C2/C3 time sequence of Event 2. The EIT 195 Å images ( two upper rows) show the eruption of filament F2 (indicated by the arrow F2) in the lower corona. Two flare ribbons (indicated by the arrow R2) and a group of post-flare loops (indicated by the arrow L2) appeared near the location where the F2 sat. The LASCO C2 and C3 running difference images ( two lower rows) show how CME2 (arrow marked CME2) expanded and interacted with the core of CME1 (arrow marked F1) and the leading edge of CME1 (arrow marked CME1).
Open with DEXTER

In the text

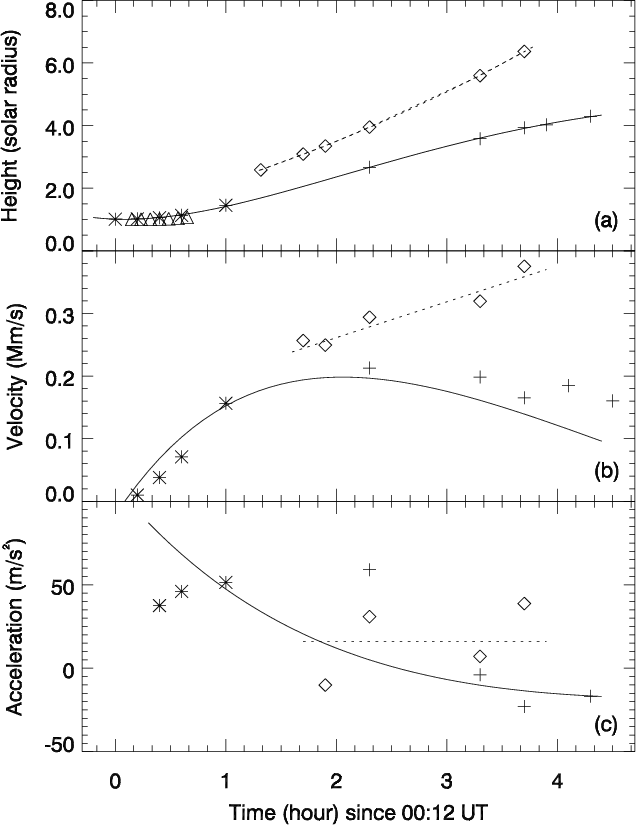

$\begin{figure} \includegraphics[width=11cm,clip]{5471f06.eps} \end{figure}$ Figure 6: a) Height-time, b) velocity-time, and c) acceleration-time profiles of 1) F2 in the FOV of i) EIT 195 Å ( $\ast$ ); and ii) C2 (core of CME2, +); and 2) the leading edge of CME2 in the FOV of C2 and C3 images ( $\diamond$ ). The solid (dashed) lines specify the quadratic fitting to the F2 (the leading edge of CME2) height-time data. The time t=0 corresponds to 00:12 UT.
Open with DEXTER

In the text

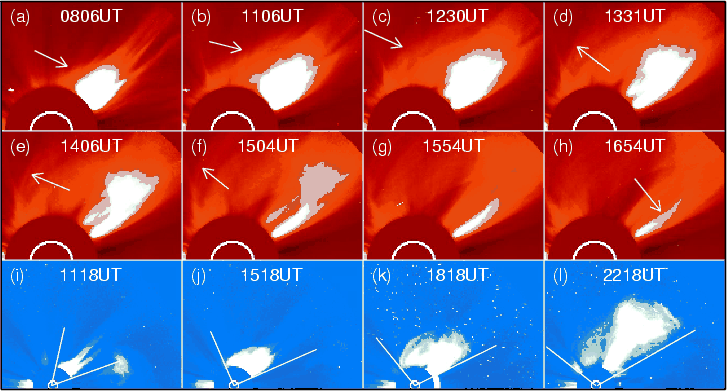

$\begin{figure} \includegraphics[width=11.2cm,clip]{5471f07.eps} \end{figure}$ Figure 7: LASCO C2 ( upper two rows) and C3 ( bottom row) time sequence of the disruption of a helmet streamer on October 26, 2003. The white arrows in a)- f) indicate the expanding part (leg) of the streamer, while the shape and profile of the other leg remained almost unchanged (white arrow in h)). The angular span of the CME-associated magnetic arcade is marked by two straight lines in the C3 frames.
Open with DEXTER

In the text

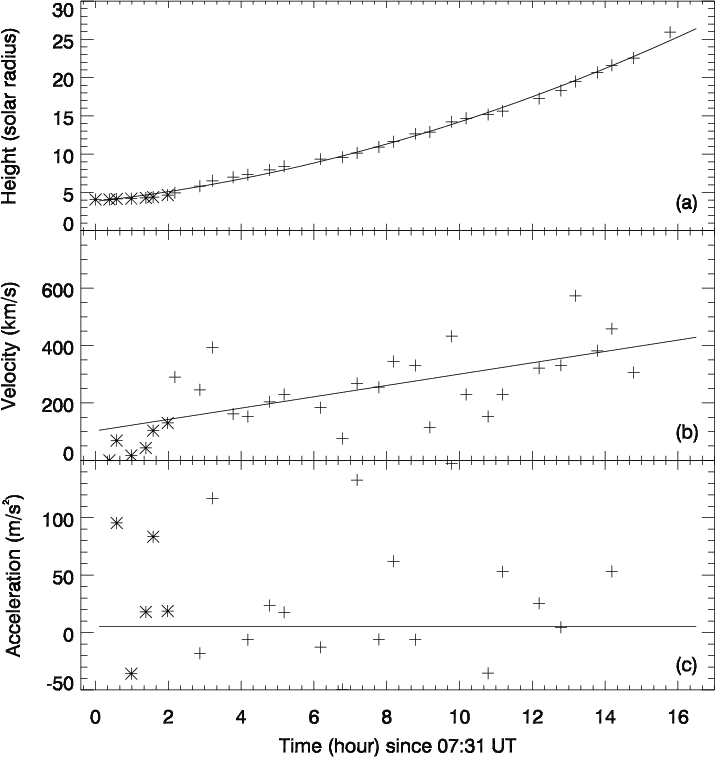

$\begin{figure} \includegraphics[width=11cm,clip]{5471f08.eps} \end{figure}$ Figure 8: a) Height-time, b) velocity-time, and c) acceleration-time profile of CME3 appearing in FOV of C2 ( $\ast$ ) and C3 (+), respectively. The solid line in indicates the quadratic fitting result on the basis of Eq. (1) for a₃=0 with t=0 corresponding to 07:31 UT.
Open with DEXTER

In the text

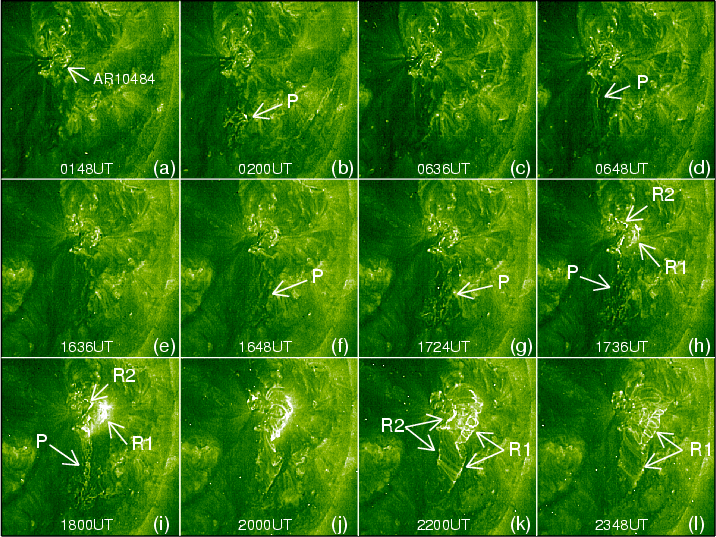

$\begin{figure} \includegraphics[width=11cm,clip]{5471f09.eps} \end{figure}$ Figure 9: Time sequence of the X1.2 X-ray flare on AR 10484 as recorded in EIT 195 Å. The images have been contrast-enhanced with the WICE technique. a)- d) The sudden brightenings (arrow P) indicate small scale activity during more than ten hours prior to the X1.2 flare. e)- f) The small scale eruption-like activity appeared about half hour before the X1.2 flare occurred. g)- l) The evolution of flare ribbons (indicated by arrow R1 and R2 ) after the X-ray flare.
Open with DEXTER

In the text

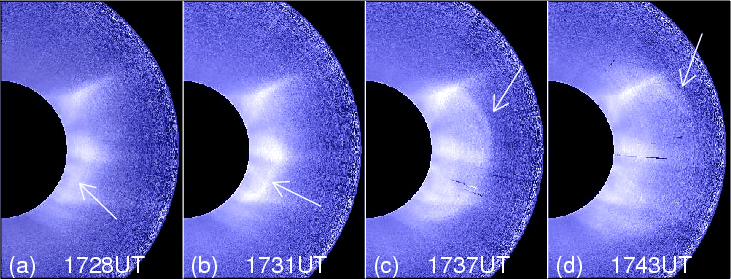

$\begin{figure} \includegraphics[width=11.2cm,clip]{5471f10.eps} \end{figure}$ Figure 10: Time sequence of the CME (CME4) associated with the X1.2 flare as recorded by the MK4 coronagraph. The white arrows indicate the leading edge of CME4. a) The leading edge started to form at 17:28 UT. b) The leading edge of CME4 clearly formed at 17:31 UT. c) The angular span of CME4 increased significantly within 6 min. d) The angular span of CME4 reached about ${117}^{\circ }$ .
Open with DEXTER

In the text

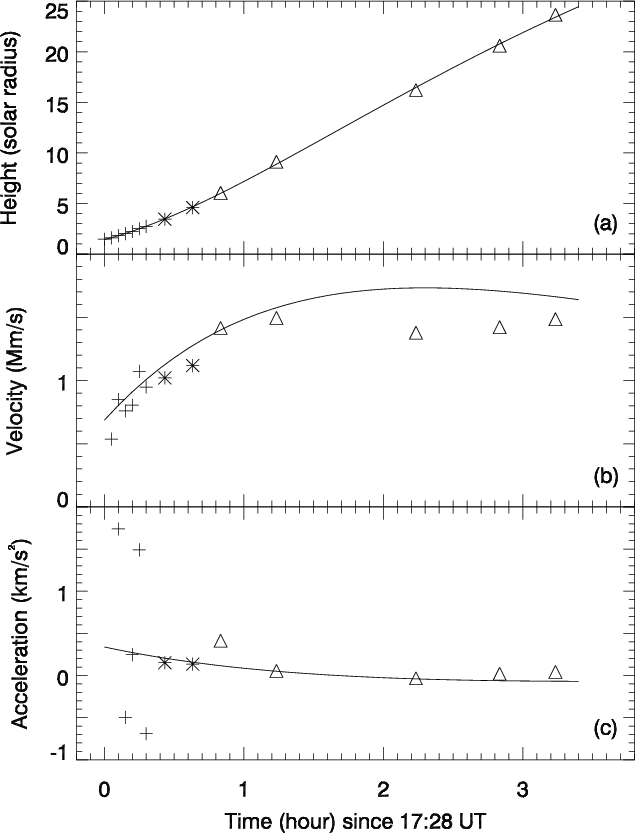

$\begin{figure} \par\includegraphics[width=9cm,clip]{5471f11.eps} \end{figure}$ Figure 11: Time-profiles of the altitude a), velocity b) and acceleration c) of the CME4 leading edge appearing in FOV of MK4 (+), C2 ( $\ast$ ) and C3 ( $\triangle$ ), respectively. The solid curves indicate the fitting result to the data according to Eq. (1).
Open with DEXTER

In the text

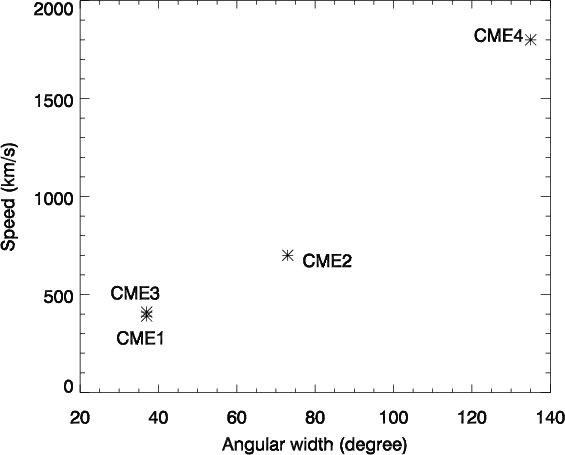

$\begin{figure} \par\includegraphics[width=8cm,clip]{5471f12.eps} \end{figure}$ Figure 12: Plot of CME speeds versus their angular widths.
Open with DEXTER

In the text

$\begin{figure} \includegraphics[width=11cm,clip]{5471f06.eps} \end{figure}$	Figure 6: a) Height-time, b) velocity-time, and c) acceleration-time profiles of 1) F2 in the FOV of i) EIT 195 Å ( $\ast$ ); and ii) C2 (core of CME2, +); and 2) the leading edge of CME2 in the FOV of C2 and C3 images ( $\diamond$ ). The solid (dashed) lines specify the quadratic fitting to the F2 (the leading edge of CME2) height-time data. The time t=0 corresponds to 00:12 UT.
Open with DEXTER

$\begin{figure} \includegraphics[width=11cm,clip]{5471f08.eps} \end{figure}$	Figure 8: a) Height-time, b) velocity-time, and c) acceleration-time profile of CME3 appearing in FOV of C2 ( $\ast$ ) and C3 (+), respectively. The solid line in indicates the quadratic fitting result on the basis of Eq. (1) for a₃=0 with t=0 corresponding to 07:31 UT.
Open with DEXTER

$\begin{figure} \includegraphics[width=11.2cm,clip]{5471f10.eps} \end{figure}$	Figure 10: Time sequence of the CME (CME4) associated with the X1.2 flare as recorded by the MK4 coronagraph. The white arrows indicate the leading edge of CME4. a) The leading edge started to form at 17:28 UT. b) The leading edge of CME4 clearly formed at 17:31 UT. c) The angular span of CME4 increased significantly within 6 min. d) The angular span of CME4 reached about ${117}^{\circ }$ .
Open with DEXTER

$\begin{figure} \par\includegraphics[width=9cm,clip]{5471f11.eps} \end{figure}$	Figure 11: Time-profiles of the altitude a), velocity b) and acceleration c) of the CME4 leading edge appearing in FOV of MK4 (+), C2 ( $\ast$ ) and C3 ( $\triangle$ ), respectively. The solid curves indicate the fitting result to the data according to Eq. (1).
Open with DEXTER

$\begin{figure} \par\includegraphics[width=8cm,clip]{5471f12.eps} \end{figure}$	Figure 12: Plot of CME speeds versus their angular widths.
