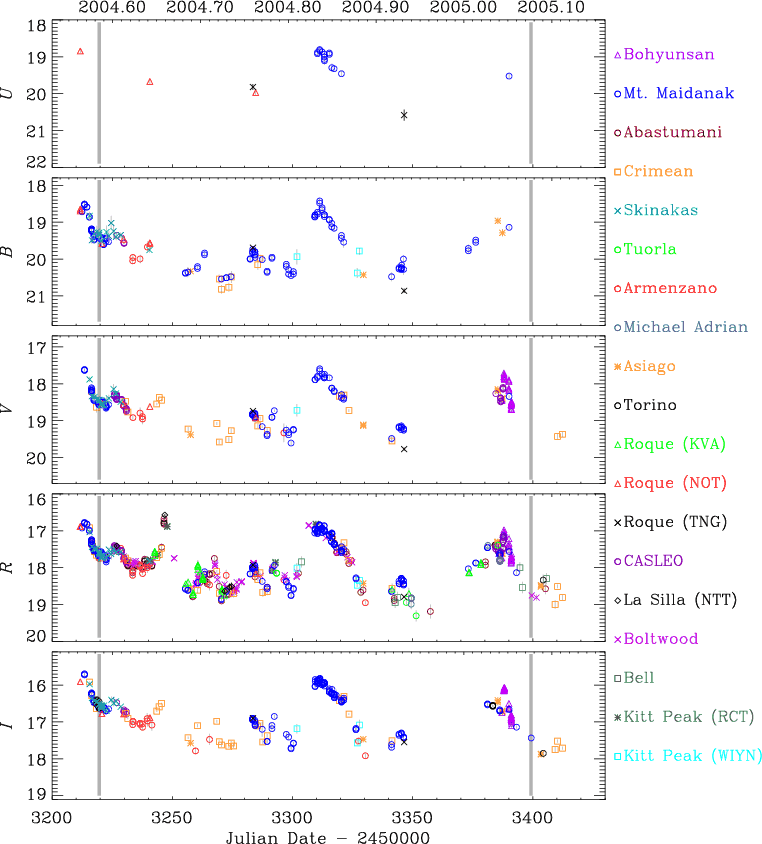

$\begin{figure} \par\includegraphics[width=11.8cm,clip]{5744f1.eps} \end{figure}$ Figure 1: $\it UBVRI$ light curves of AO 0235+164 during the observing season 2004-2005; vertical lines indicate the XMM-Newton pointings of August 2, 2004 and January 28, 2005. The ELISA contribution has been subtracted as explained in Raiteri et al. (2005).
Open with DEXTER

In the text

$\begin{figure} \par\includegraphics[width=7.65cm,clip]{5744f2.eps} \end{figure}$ Figure 2: $\it JHK$ light curves of AO 0235+164 during the observing season 2004-2005 compared to the R-band one ( top). Vertical lines are drawn to guide the eye through variations in different bands.
Open with DEXTER

In the text

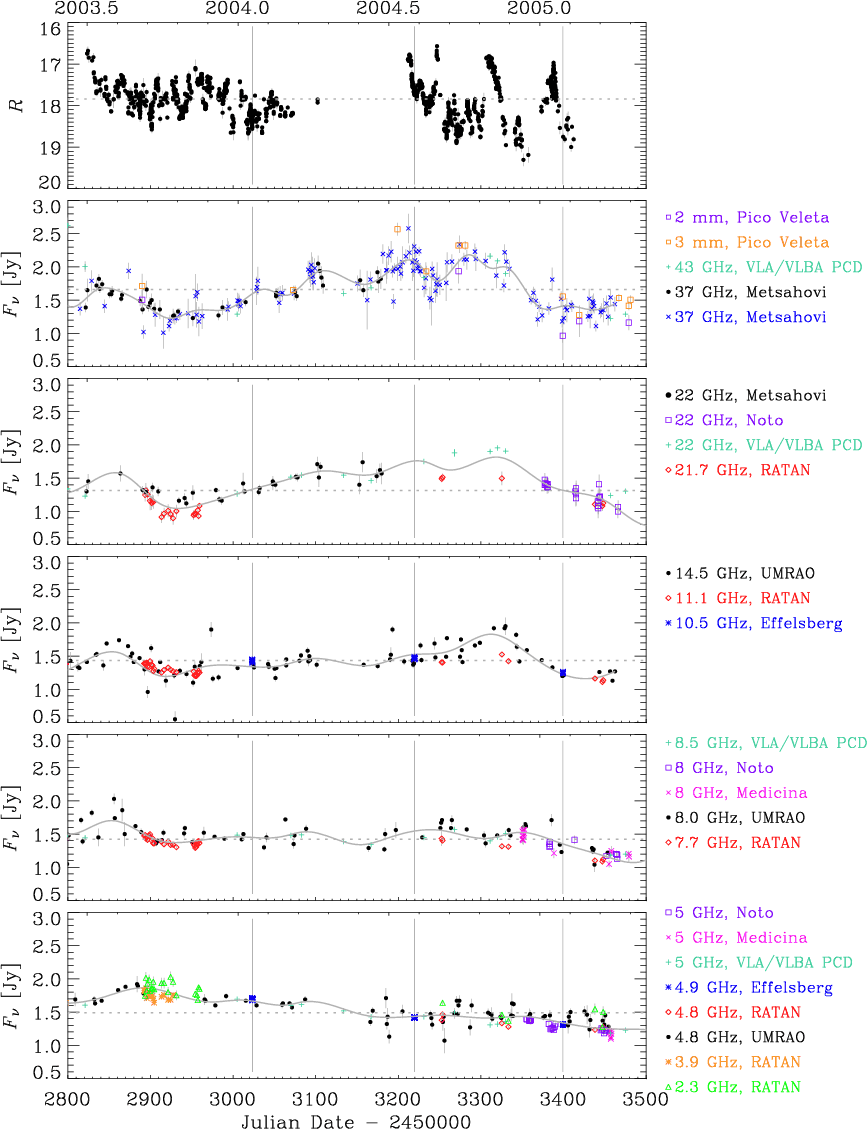

$\begin{figure} \par\includegraphics[width=14.1cm,clip]{5744f3.eps} \end{figure}$ Figure 3: R-band magnitudes ( top) and radio fluxes (Jy) at different frequencies during the 2003-2005 WEBT campaign. Vertical lines mark the times of the three XMM-Newton pointings. Cubic splines on the radio data at 37, 22, 14.5, 8, and 5 GHz are plotted to better see the long-term trend. Horizontal lines indicate the mean fluxes at these frequencies. Two different symbols are used for the 37 GHz data from Metsähovi since they come from different datasets.
Open with DEXTER

In the text

$\begin{figure} \par\includegraphics[width=11.5cm,clip]{5744f4.eps} \end{figure}$ Figure 4: B-R colour indices ( bottom) compared to the R-band light curve ( top); in the top panel blue (larger) dots indicate the R data used to derive the colour indices. Horizontal lines are drawn through average values; vertical lines indicate the times of the X-ray satellite pointings, discussed in Sect. 5.
Open with DEXTER

In the text

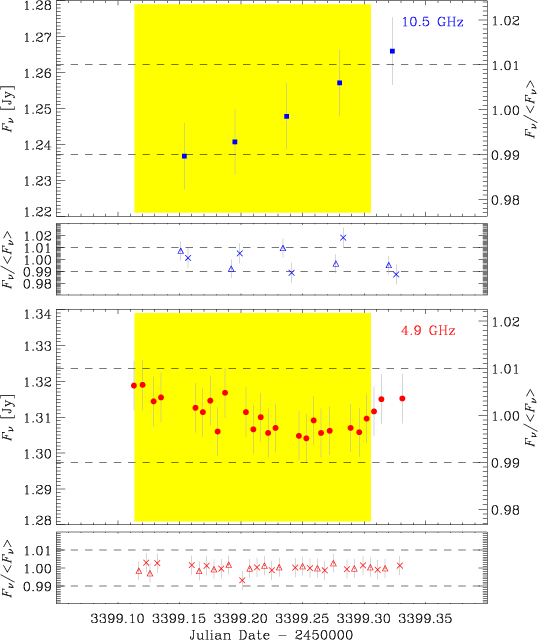

$\begin{figure} \par\includegraphics[width=7.65cm,clip]{5744f5.eps} \end{figure}$ Figure 5: Radio light curves of the source and calibrators at 10.5 GHz ( top, blue symbols) and 4.9 GHz ( bottom, red symbols) obtained with the 100 m radio telescope at Effelsberg on August 2, 2004. The two calibrators are 3C 067 (triangles) and 4C +09.11 (crosses). The horizontal lines indicate deviations of 1% from the mean flux densities, while the yellow areas highlight the period of the X-ray observations.
Open with DEXTER

In the text

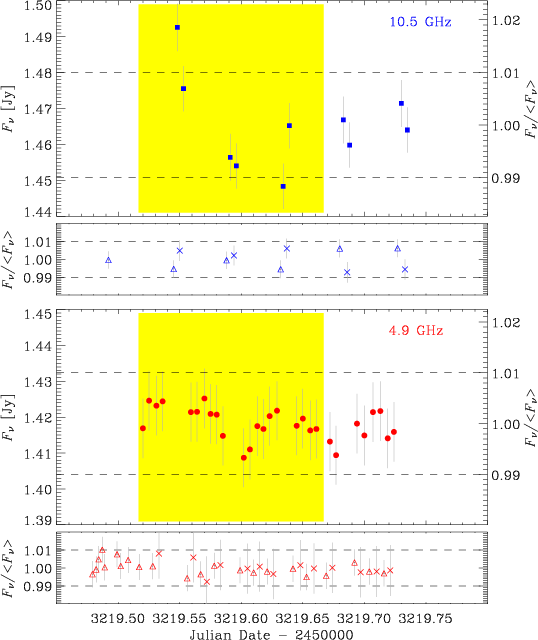

$\begin{figure} \par\includegraphics[width=7.65cm,clip]{5744f6.eps} \end{figure}$ Figure 6: Radio light curves of the source and calibrators at 10.5 GHz ( top, blue symbols) and 4.9 GHz ( bottom, red symbols) obtained with the 100 m radio telescope at Effelsberg on January 28, 2005. The two calibrators are 3C 067 (triangles) and 4C +09.11 (crosses). The horizontal lines indicate deviations of 1% from the mean flux densities, while the yellow areas highlight the period of the X-ray observations.
Open with DEXTER

In the text

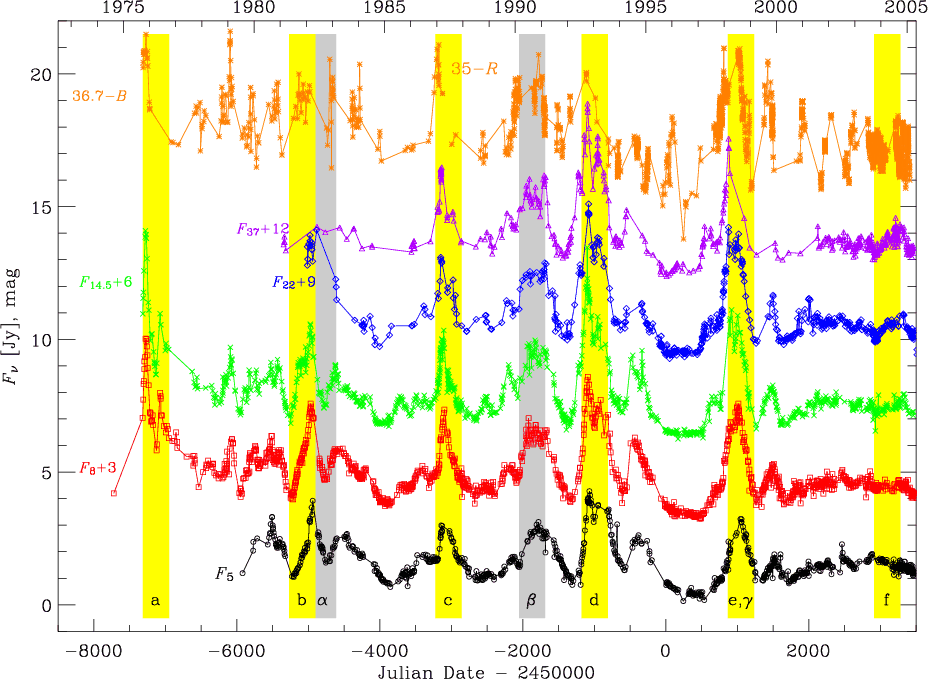

$\begin{figure} \par\includegraphics[width=15.75cm,clip]{5744f7.eps} \end{figure}$ Figure 7: Historical optical (mag) and radio (37, 22, 14.5, 8, and 5 GHz, flux density in Jy) light curves of AO 0235+164 shifted by the indicated amount; to increase the sampling in the optical, we show R-band data after $\rm JD=2~447~000$ and R-converted B-band data before. Yellow strips highlight the periods (a, b, c, d, e, f) where a major radio (and optical) outburst is expected on the basis of a 5.6 $\pm$ 0.5 yr quasi-periodicity; periods $\alpha$ , $\beta$ , and $\gamma$ belong to an $\sim$ 8 yr characteristic time scale of variability.
Open with DEXTER

In the text

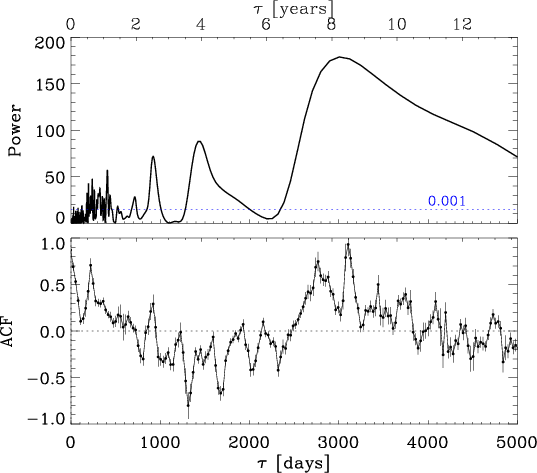

$\begin{figure} \par\includegraphics[width=7.65cm,clip]{5744f8.eps} \end{figure}$ Figure 8: Power spectrum of the discrete Fourier transform ( top) and autocorrelation function ( bottom) obtained from the historical R-band light curve. In the top panel the blue dotted line indicates the level above which the significance is better than 0.001.
Open with DEXTER

In the text

$\begin{figure} \par\includegraphics[width=7.65cm,clip]{5744f9.eps} \end{figure}$ Figure 9: Power spectrum of the discrete Fourier transform ( top) and autocorrelation function ( bottom) obtained from the historical 8 GHz light curve. In the top panel the blue dotted line indicates the level above which the significance is better than 0.001.
Open with DEXTER

In the text

$\begin{figure} \par\includegraphics[width=16.8cm,clip]{5744f10.eps} \end{figure}$ Figure 10: Spectral energy distributions of AO 0235+164 during X-ray satellite pointings. The green solid line represents a cubic spline interpolation through the August 2004 data.
Open with DEXTER

In the text

$\begin{figure} \par\includegraphics[width=11.8cm,clip]{5744f1.eps} \end{figure}$	Figure 1: $\it UBVRI$ light curves of AO 0235+164 during the observing season 2004-2005; vertical lines indicate the XMM-Newton pointings of August 2, 2004 and January 28, 2005. The ELISA contribution has been subtracted as explained in Raiteri et al. (2005).
Open with DEXTER

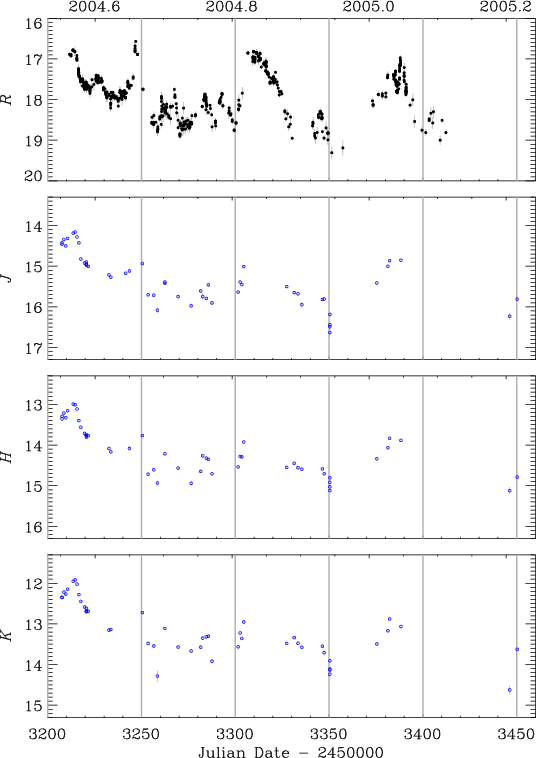

$\begin{figure} \par\includegraphics[width=7.65cm,clip]{5744f2.eps} \end{figure}$	Figure 2: $\it JHK$ light curves of AO 0235+164 during the observing season 2004-2005 compared to the R-band one ( top). Vertical lines are drawn to guide the eye through variations in different bands.
Open with DEXTER

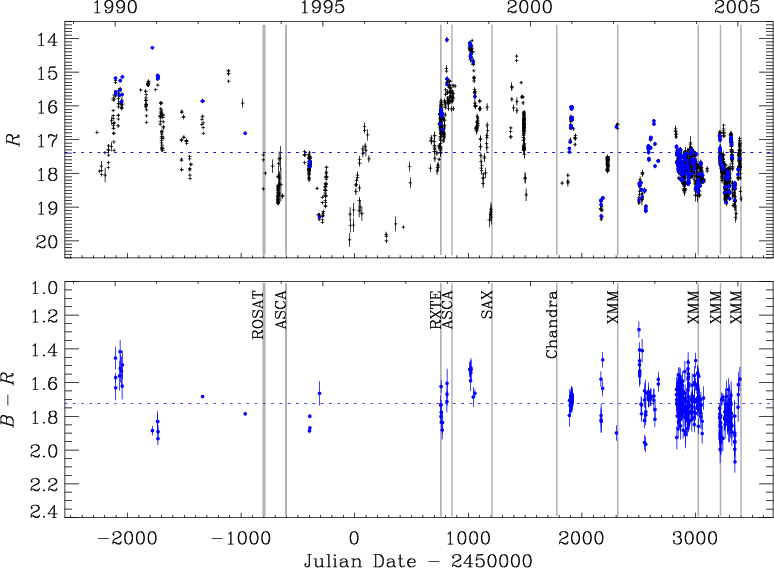

$\begin{figure} \par\includegraphics[width=11.5cm,clip]{5744f4.eps} \end{figure}$	Figure 4: B-R colour indices ( bottom) compared to the R-band light curve ( top); in the top panel blue (larger) dots indicate the R data used to derive the colour indices. Horizontal lines are drawn through average values; vertical lines indicate the times of the X-ray satellite pointings, discussed in Sect. 5.
Open with DEXTER

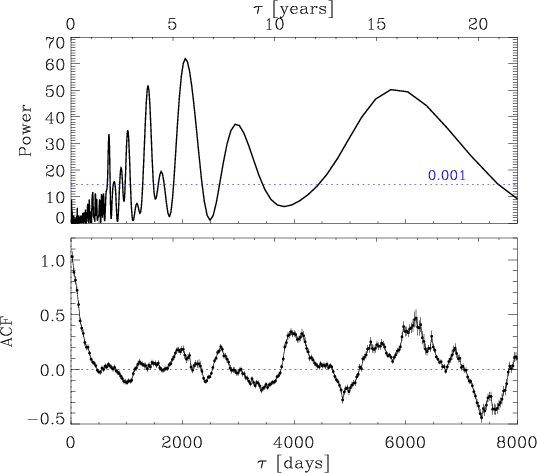

$\begin{figure} \par\includegraphics[width=7.65cm,clip]{5744f8.eps} \end{figure}$	Figure 8: Power spectrum of the discrete Fourier transform ( top) and autocorrelation function ( bottom) obtained from the historical R-band light curve. In the top panel the blue dotted line indicates the level above which the significance is better than 0.001.
Open with DEXTER

$\begin{figure} \par\includegraphics[width=7.65cm,clip]{5744f9.eps} \end{figure}$	Figure 9: Power spectrum of the discrete Fourier transform ( top) and autocorrelation function ( bottom) obtained from the historical 8 GHz light curve. In the top panel the blue dotted line indicates the level above which the significance is better than 0.001.
Open with DEXTER

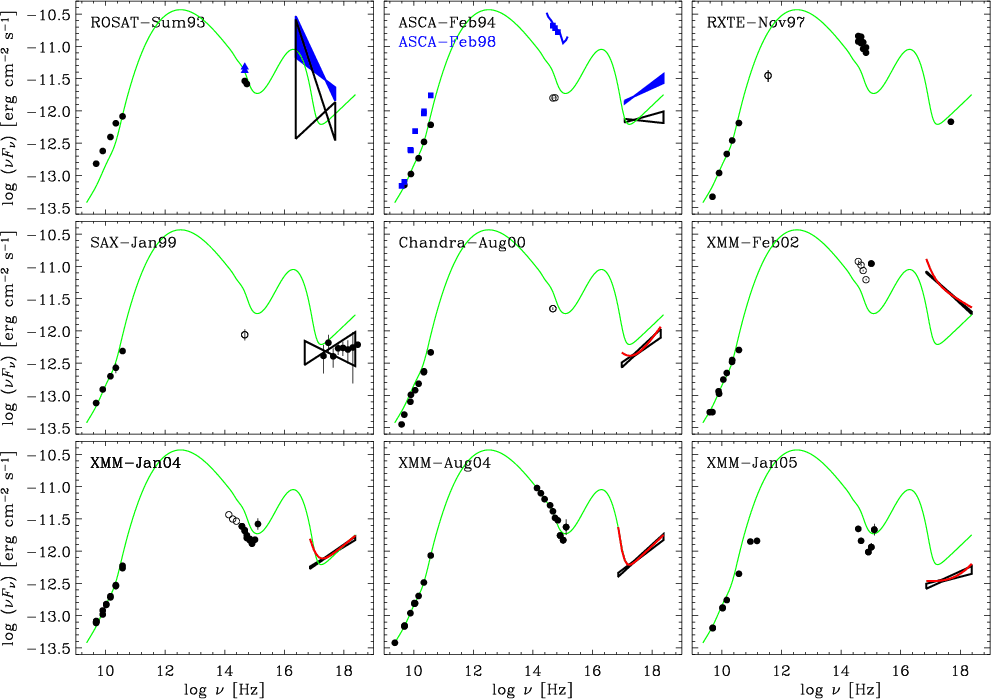

$\begin{figure} \par\includegraphics[width=16.8cm,clip]{5744f10.eps} \end{figure}$	Figure 10: Spectral energy distributions of AO 0235+164 during X-ray satellite pointings. The green solid line represents a cubic spline interpolation through the August 2004 data.
