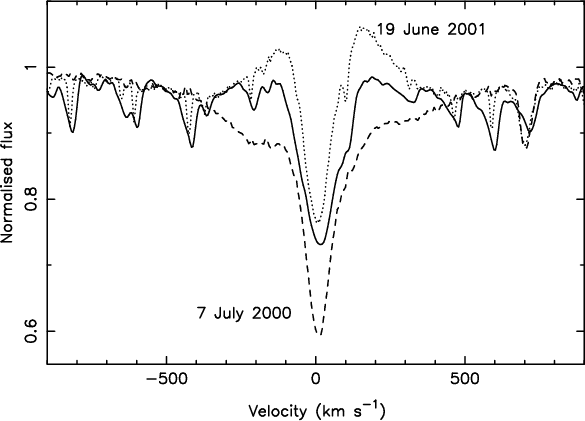

$\begin{figure} \par\includegraphics[angle=-90,width=8.3cm,clip]{6392fig1.ps} \end{figure}$ Figure 1: Average H $\alpha$ profile (full line), the profile of 7 July 2000 and 19 June 2001 (dashed and dotted lines respectively, see Henrichs et al. 2003). During our observations more emission was present than in 2000.
Open with DEXTER

In the text

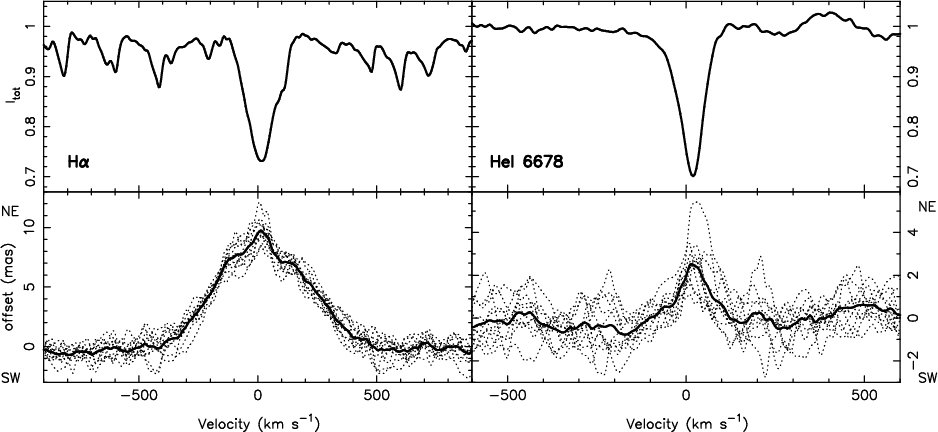

$\begin{figure} \par\includegraphics[angle=-90,width=15.8cm,clip]{6392fig2.ps} \end{figure}$ Figure 2: Spectro-astrometric observations of H $\alpha$ ( left) and the He I line at 6678 Å ( right) of the $\beta$ Cep system. Shown are the normalised intensity line profile ( top) and the position of the photocentre of the spatial profile relative to that of the continuum ( bottom). In the plot of the offset of the photocentre the results of all individual spectra are shown (dotted lines) as well as the average (full line). In both the H $\alpha$ and He I plots a shift of the photocentre towards the companion is visible. However, in H $\alpha$ the photocentre is offset from about -400 to +400 km s^-1, while in He I the width of the offset is similar to the width of the line.
Open with DEXTER

In the text

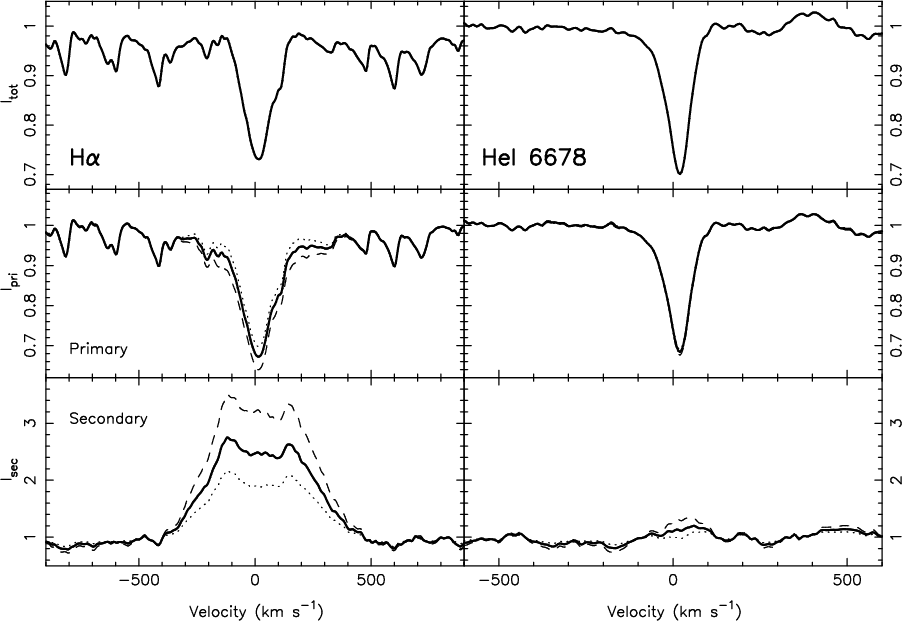

$\begin{figure} \par\includegraphics[angle=-90,width=15.2cm,clip]{6392fig3.ps} \end{figure}$ Figure 3: The results of the separation of the spectra of the primary and secondary components. We show the normalised intensity line profile ( top) and the separated line profiles of the primary ( middle) and the secondary ( bottom). For the splitting of the spectra we have assumed a separation of 0.07 $^{\prime \prime }$ (dashed lines), 0.1 $^{\prime \prime }$ (full line, corresponding to the best estimate of the separation), and 0.15 $^{\prime \prime }$ (dotted line). A double-peaked H $\alpha$ emission line with a width of $\sim$ 400 km s^-1, typical of a classical Be star, is found in the secondary star. The He I line at 6678 Å is only present in the primary star.
Open with DEXTER

In the text

$\begin{figure} \par\includegraphics[angle=-90,width=8.3cm,clip]{6392fig1.ps} \end{figure}$	Figure 1: Average H $\alpha$ profile (full line), the profile of 7 July 2000 and 19 June 2001 (dashed and dotted lines respectively, see Henrichs et al. 2003). During our observations more emission was present than in 2000.
