All Figures

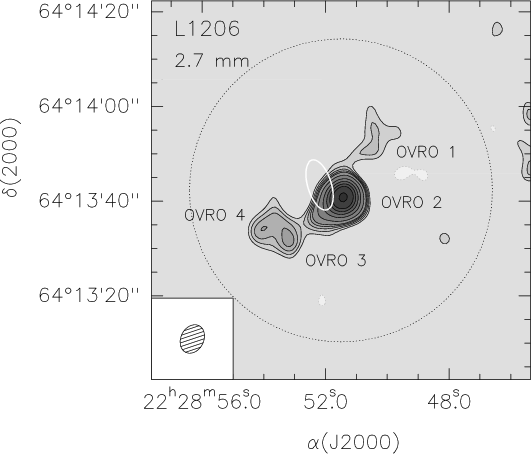

$\begin{figure} {\includegraphics[angle=0,width=7.5cm]{5132f1.eps} }\end{figure}$ Figure 1: OVRO map of the 2.7 mm continuum emission toward the core of L1206. The synthesized beam is $6\hbox{$.\!\!^{\prime\prime}$ }3\times4\hbox{$.\!\!^{\prime\prime}$ }8$ at $\rm PA=-27\hbox {$^\circ $ }$ and is drawn in the bottom left corner. The rms noise of the map, $\sigma$ , is 1.4 mJy beam^-1. The contour levels are $-5\sigma$ , $-3\sigma$ , 3 to 7 times $\sigma$ by $1\sigma$ , $10\sigma$ , 15 to 30 times $\sigma$ by $5\sigma$ , and $40\sigma$ . The error ellipse of IRAS 22272+6358A is indicated in white. The dotted circle represents the OVRO primary beam (50% attenuation level).
Open with DEXTER

In the text

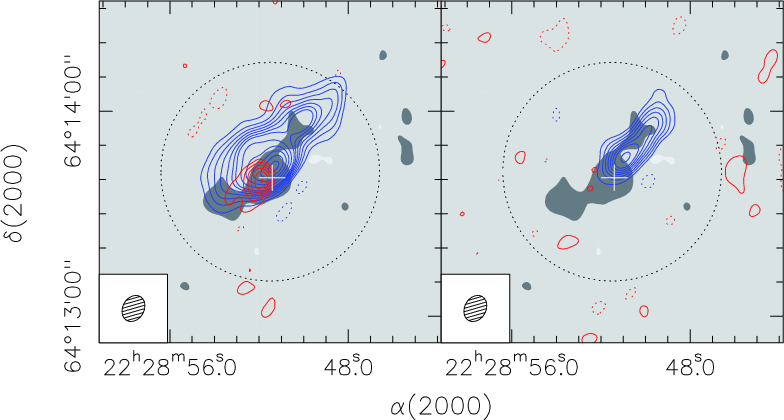

$\begin{figure} {\includegraphics[width=13.2cm]{5132f2CMJN.eps} } \end{figure}$ Figure 2: CO ( $J=1\rightarrow 0$ ) emission integrated in different velocity intervals, (-19.5, -13.5) km s^-1 for the low-velocity blueshifted emission ( left panel; blue contours), (-8.5, -2.5) km s^-1 for the redshifted one ( left panel; red contours), (-30.5, -19.5) km s^-1 for the high-velocity blueshifted emission (right panel; blue contours), and (-2.5, +8.5) km s^-1 for the high-velocity redshifted one ( right panel; red contours), overlaid on the 2.7 mm continuum emission ( greyscale). Contour levels are $-3\sigma$ , 3 to 15 times $\sigma$ by steps of 2 $\sigma$ , and 15 to 35 times $\sigma$ by steps of 4 $\sigma$ , where 1 $\sigma$ is 0.5 Jy beam^-1 km s^-1 ( left panel; blue contours), 0.18 Jy beam^-1 km s^-1 ( left panel; red contours), 0.4 Jy beam^-1 km s^-1 ( right panel; blue contours), and 0.15 Jy beam^-1 km s^-1 ( right panel; red contours). The synthesized beam is drawn in the bottom left corner. The dotted circle represents the OVRO primary beam (50% attenuation level). The white cross marks the millimeter continuum position of OVRO 2.
Open with DEXTER

In the text

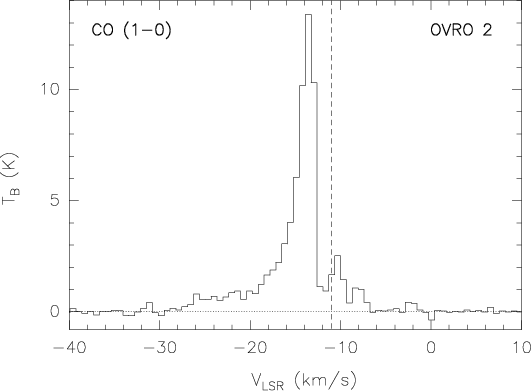

$\begin{figure} {\includegraphics[angle=-90,width=7.5cm]{5132f3.eps} } \end{figure}$ Figure 3: CO ( $J=1\rightarrow 0$ ) spectrum obtained at the position of OVRO 2 in L1206. The continuum has been subtracted. The 1 $\sigma$ level in one channel is 0.10 K. The conversion factor is 1.82 K/Jy beam^-1. The dashed vertical line indicates the systemic velocity of -11 km s^-1.
Open with DEXTER

In the text

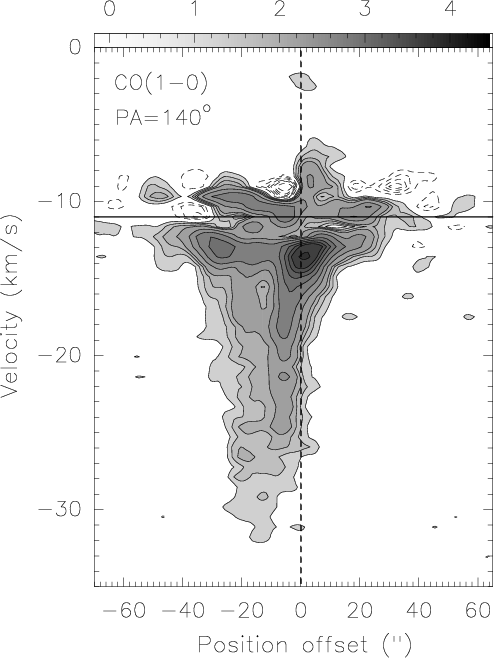

$\begin{figure} {\includegraphics[angle=0,width=7cm]{5132f4.eps} }\par\end{figure}$ Figure 4: PV plot of the CO ( $J=1\rightarrow 0$ ) emission along the major axis, $\rm PA=140\hbox {$^\circ $ }$ , of the molecular outflow. The position offset is relative to the projection of the 2.7 mm continuum emission peak onto the outflow axis, $\alpha$ (J2000 $) = 22^{\rm h} 28^{\rm h} 51\hbox{$.\!\!^{\rm s}$ }52$ , $\delta$ (J2000 $) = +64\hbox{$^\circ$ }13' 41\hbox{$.\!\!^{\prime\prime}$ }7$ . Contours are -1.2, -0.9, -0.72, -0.54, -0.36, -0.18, 0.18, 0.36, 0.54, 0.72, 0.90, 1.2, 1.8, 2.7, 3.6, 4.5, 5.4, and 7.2 Jy beam^-1. The horizontal line marks the systemic velocity, $V_{\rm LSR}=-11$ km s^-1.
Open with DEXTER

In the text

$\begin{figure} {\includegraphics[angle=-90,width=14.5cm]{5132f5.eps} } \end{figure}$ Figure 5: Velocity channel maps of the C¹⁸O ( $J=1\rightarrow 0$ ) emission ( contours) overlaid on the 2.7 mm continuum emission ( greyscale). The $V_{\rm LSR}$ of L1206 is -11 km s^-1. The central velocity of each channel is indicated at the upper left corner of each panel. The 1 $\sigma$ noise in 1 channel is 40 mJy beam^-1. Contour levels are -7 $\sigma$ , -3 $\sigma$ , 3 to 15 times $\sigma$ by steps of 4 $\sigma$ , and 15 to 39 times $\sigma$ by steps of 8 $\sigma$ . The conversion factor from Jy beam^-1 to K is 1.93. The synthesized beam is drawn in the bottom left corner of the bottom left panel. The line outlines the direction of the CO outflow (see Fig. 2).
Open with DEXTER

In the text

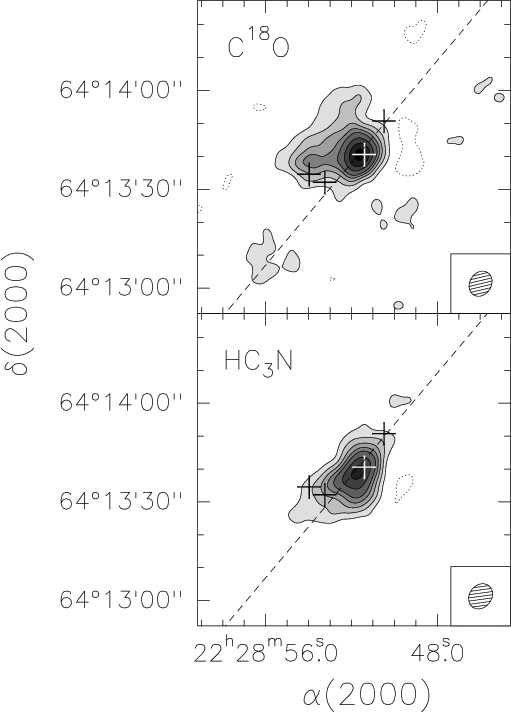

$\begin{figure} {\includegraphics[angle=0,width=7.2cm]{5132f6.eps} } \end{figure}$ Figure 6: Top: integrated intensity map of the C¹⁸O ( $J=1\rightarrow 0$ ) emission over the velocity interval (-12.4,-8.3) km s^-1 toward L1206. Contour levels are -0.36, 0.36 to 1.8 Jy beam^-1 km s^-1 by steps of 0.36 Jy beam^-1 km s^-1, and 1.8 to 3.6 Jy beam^-1 km s^-1 by steps of 0.6 Jy beam^-1 km s^-1. Bottom: integrated intensity map of the HC₃N ( $J=12\rightarrow 11$ ) emission over the velocity interval (-11.7, -9.7) km s^-1. Contour levels are -0.3, 0.3 to 1.5 Jy beam^-1 km s^-1 by steps of 0.3 Jy beam^-1 km s^-1, and 1.5 to 2.5 Jy beam^-1 km s^-1 by steps of 0.5 Jy beam^-1 km s^-1. The crosses show the positions of the 2.7 mm continuum sources detected in the region. The dashed line indicates the direction of the CO outflow. The synthesized beam is drawn in the bottom right corner of each panel.
Open with DEXTER

In the text

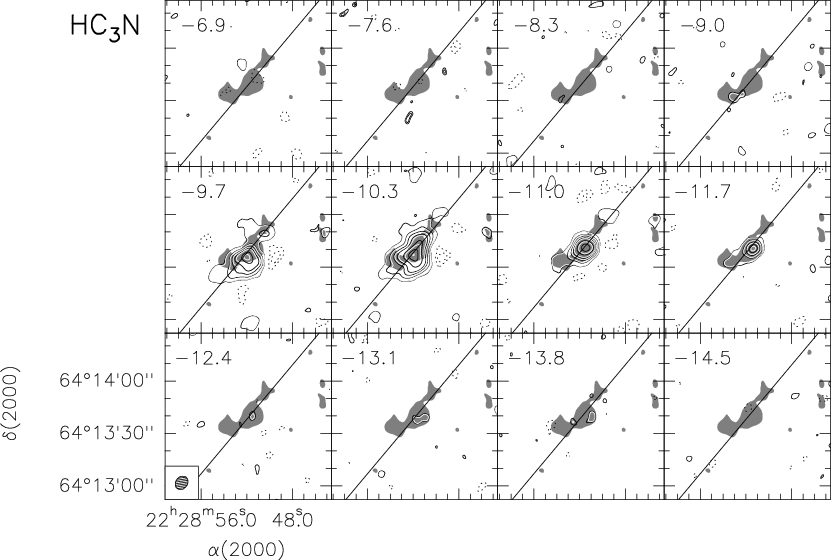

$\begin{figure} {\includegraphics[angle=-90,width=14cm]{5132f7.eps} } \end{figure}$ Figure 7: Velocity channel maps of the HC₃N ( $J=12\rightarrow 11$ ) emission (contours) overlaid on the 2.7 mm continuum emission (greyscale). The $V_{\rm LSR}$ of L1206 is -11 km s^-1. The central velocity of each channel is indicated at the upper left corner of each panel. The 1 $\sigma$ noise in 1 channel is 40 mJy beam^-1. Contour levels are -5 $\sigma$ , -3 $\sigma$ , 3 to 15 times $\sigma$ by steps of 4 $\sigma$ , and 15 to 31 times $\sigma$ by steps of 8 $\sigma$ . The conversion factor from Jy beam^-1 to K is 1.88. The synthesized beam is drawn in the bottom left corner of the bottom left panel. The line outlines the direction of the CO outflow (see Fig. 2).
Open with DEXTER

In the text

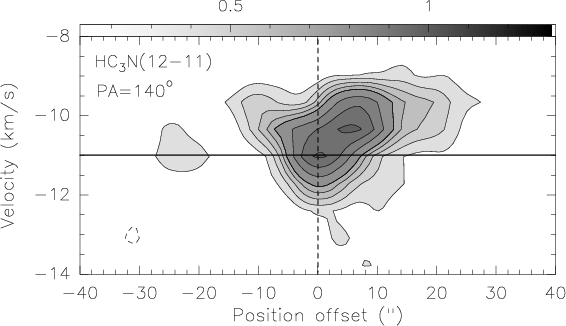

$\begin{figure} {\includegraphics[angle=-90,width=8cm]{5132f8.eps} } \end{figure}$ Figure 8: PV plot of the HC₃N ( $J=12\rightarrow 11$ ) emission along the major axis, $\rm PA=140\hbox {$^\circ $ }$ , of the molecular outflow. The position offset is relative to the projection of the 2.7 mm continuum emission peak onto the outflow axis, $\alpha$ (J2000 $) = 22^{\rm h} 28^{\rm h} 51\hbox{$.\!\!^{\rm s}$ }52$ , $\delta$ (J2000 $) = +64\hbox{$^\circ$ }13' 41\hbox{$.\!\!^{\prime\prime}$ }7$ . Contours are -0.12, 0.12 to 0.6 Jy beam^-1 by steps of 0.12 Jy beam^-1, and 0.6 to 1.32 Jy beam^-1 by steps of 0.24 Jy beam^-1. The horizontal line marks the systemic velocity, $V_{\rm LSR}=-11$ km s^-1.
Open with DEXTER

In the text

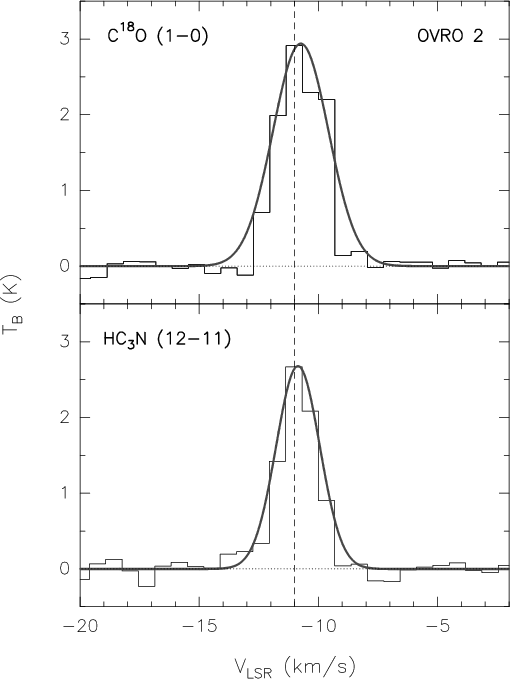

$\begin{figure} {\includegraphics[angle=0,width=7.2cm]{5132f9.eps} } \end{figure}$ Figure 9: C¹⁸O ( $J=1\rightarrow 0$ ) ( top) and HC₃N ( $J=12\rightarrow 11$ ) ( bottom) spectra obtained at the position of OVRO 2 in L1206. The continuum has been subtracted. The 1 $\sigma$ level in one channel is 0.10 K. The conversion factor is 1.93 K/Jy beam^-1 for C¹⁸O and 1.88 K/Jy beam^-1 for HC₃N. The thick grey profiles are the Gaussian fits to the spectra. The dashed vertical line indicates the systemic velocity of -11 km s^-1.
Open with DEXTER

In the text

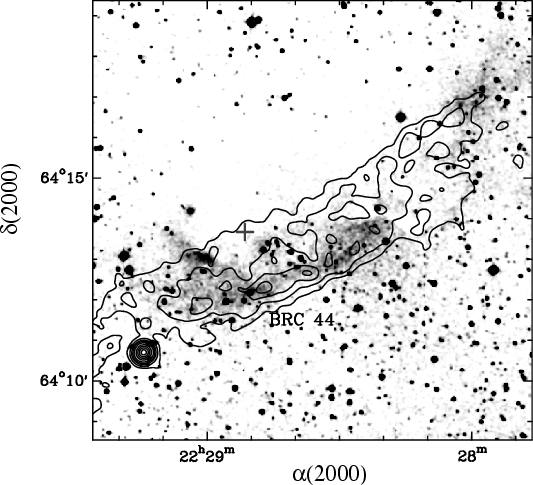

$\begin{figure}{\includegraphics[angle=0,width=7.5cm]{5132f10.eps} } \end{figure}$ Figure 10: VLA map of the 6 cm emission (contours) overlaid with an optical image from the Digitized Sky Survey 2 (colors) of BRC 44. The contours are 0.2, 0.4, 0.7, 1.0, 1.5, 2.5, 3.5, 4.5, 5.5, and 6.5 mJy beam^-1. The cross marks the position of the 2.7 mm continuum source OVRO 2.
Open with DEXTER

In the text

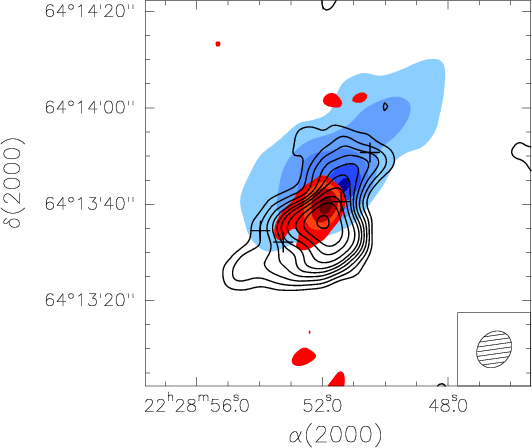

$\begin{figure} {\includegraphics[width=7.5cm]{5132f11CMJN.eps} } \end{figure}$ Figure 11: Overlap of the intensity map of the HC₃N ( $J=12\rightarrow 11$ ) emission ( contours), integrated over the velocity interval (-10.3, -9.7) km s^-1, on the CO ( $J=1\rightarrow 0$ ) blueshifted emission ( blue colors), integrated over the (-19.5, -13.5) km s^-1 velocity interval, and the redshifted emission ( red colors), integrated over the (-8.5, -2.5) km s^-1 velocity interval. Contour levels are 0.12, 0.2, 0.28, 0.36, 0.44, 0.52, 0.64, 0.80, 0.96, and 1.2 Jy beam^-1 km s^-1 ( contours), 1.5, 5.5, 9.5, 13.5, and 17.5 Jy beam^-1 km s^-1 ( blue colors), and 0.54, 1.08, 1.62, and 2.16 Jy beam^-1 km s^-1 ( red colors). The crosses show the positions of the 2.7 mm continuum sources detected in the region. The synthesized beam is drawn in the bottom right corner.
Open with DEXTER

In the text

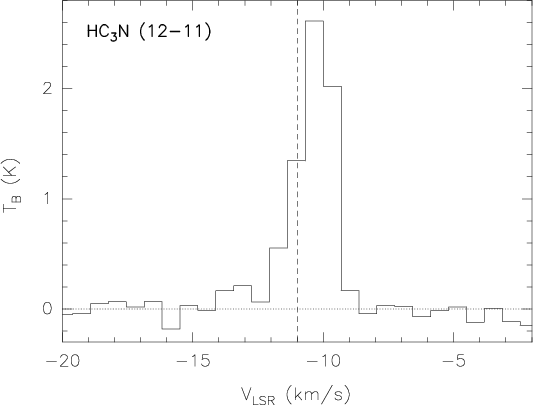

$\begin{figure} {\includegraphics[angle=-90,width=7.5cm]{5132f12.eps} } \end{figure}$ Figure 12: HC₃N ( $J=12\rightarrow 11$ ) spectrum obtained at the position of the southern redshifted peak seen at velocities of -9.7 and -10.3 km s^-1 (see Sect. 4.7). The dashed vertical line indicates the systemic velocity of -11 km s^-1.
Open with DEXTER

In the text

$\begin{figure} {\includegraphics[angle=-90,width=7.5cm]{5132f3.eps} } \end{figure}$	Figure 3: CO ( $J=1\rightarrow 0$ ) spectrum obtained at the position of OVRO 2 in L1206. The continuum has been subtracted. The 1 $\sigma$ level in one channel is 0.10 K. The conversion factor is 1.82 K/Jy beam^-1. The dashed vertical line indicates the systemic velocity of -11 km s^-1.
Open with DEXTER

$\begin{figure}{\includegraphics[angle=0,width=7.5cm]{5132f10.eps} } \end{figure}$	Figure 10: VLA map of the 6 cm emission (contours) overlaid with an optical image from the Digitized Sky Survey 2 (colors) of BRC 44. The contours are 0.2, 0.4, 0.7, 1.0, 1.5, 2.5, 3.5, 4.5, 5.5, and 6.5 mJy beam^-1. The cross marks the position of the 2.7 mm continuum source OVRO 2.
Open with DEXTER

$\begin{figure} {\includegraphics[angle=-90,width=7.5cm]{5132f12.eps} } \end{figure}$	Figure 12: HC₃N ( $J=12\rightarrow 11$ ) spectrum obtained at the position of the southern redshifted peak seen at velocities of -9.7 and -10.3 km s^-1 (see Sect. 4.7). The dashed vertical line indicates the systemic velocity of -11 km s^-1.
Open with DEXTER
