Figure 1:
R-band image of A697 (North at the top and East to the
left) taken with the WFC camera of the INT. Galaxies with successful
velocity measurements are labeled as in Table 1. Circles
and boxes indicate cluster members and non-member galaxies,
respectively. Out of non-member galaxies, bold-face boxes indicate
emission-line galaxies. Diamond indicates a QSO at ![]() ![]() ![]() |
Open with DEXTER |
![]() |
Figure 2: R-band image of the cluster A697 with, superimposed, the contour levels of the Chandra X-ray image ID #4217 (blue, photons in the energy range 0.3-7 keV) and NVSS (Condon et al. 1998) radio image (green, see also Kempner & Sarazin 2001). Red ellipses identify structures detected by Wavdetect. To avoid confusion, only one isodensity contour of the spatial distribution of the (likely) cluster members is shown (magenta, see also Fig. 9). North is at the top and East to the left. |
Open with DEXTER |
![]() |
Figure 3: Redshift galaxy distribution. The solid-line histogram refers to galaxies assigned to the cluster peak according to the adaptive-kernel reconstruction method. |
Open with DEXTER |
![]() |

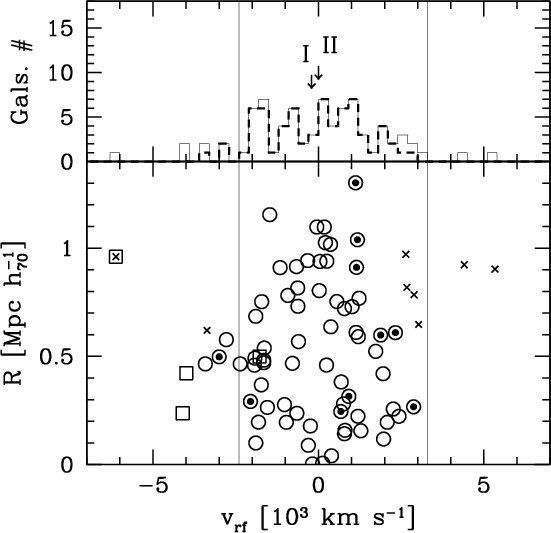

Figure 4: Lower panel: rest-frame velocity vs. projected clustercentric distance for the 79 galaxies in the main peak (Fig. 3), where we indicate galaxies rejected by the "shifting gapper'' method (crosses) and emission line galaxies (squares). The remaining 68 fiducial cluster-members (sample-A) are indicated by open circles (out of which blue galaxies are indicated by a small solid circle, see Sect. 3.3). Upper panel: velocity distribution of all 79 galaxies in the main peak (faint solid-line) and 68 member galaxies (dashed line). Velocities of the main and secondary nuclei of the cD galaxy are pointed out (IDs 41 and 42, respectively). In both panels faint vertical lines indicate velocity boundaries of the alternative sample of member galaxies (sample-B, see text). |
Open with DEXTER |
![]() |

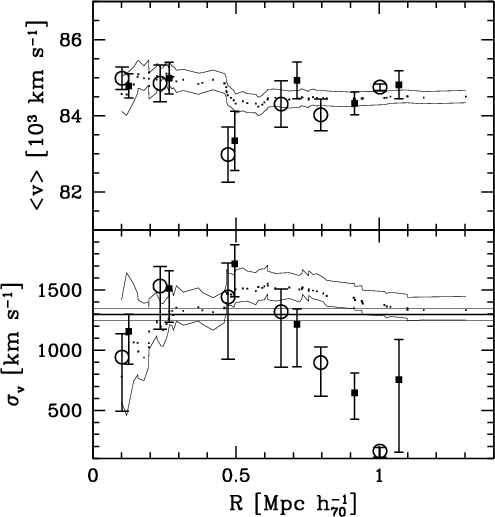

Figure 5:
Differential (solid squares) and integral (small points) profiles of
mean velocity ( upper panel) and LOS velocity dispersion (
lower panel). As for the differential profiles, results for six
annuli from the cluster center, each of 0.2
h70-1 Mpc, are shown. As for
the integral profiles, the mean and dispersion at a given (projected)
radius from the cluster center is estimated by considering all
galaxies within that radius - the first point is obtained on the
basis of the five galaxies close to the cluster center. In the lower
panel, the horizontal line represents the X-ray temperature with the
respective 68 per cent errors transformed in
![]() ![]() |
Open with DEXTER |
![]() |

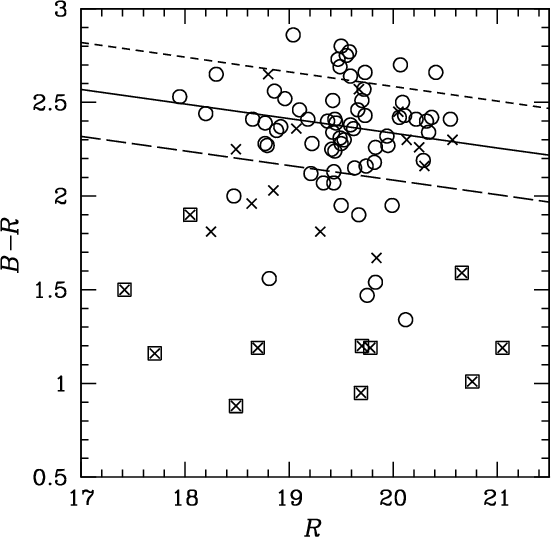

Figure 6:
B-R vs. R diagram for galaxies with available spectroscopy: circles
and crosses denote cluster and field members, respectively. Out of
field members, squares denote emission line galaxies.
The solid line gives the best-fit
colour-magnitude relation; the dashed lines are drawn at ![]() |
Open with DEXTER |
![]() |

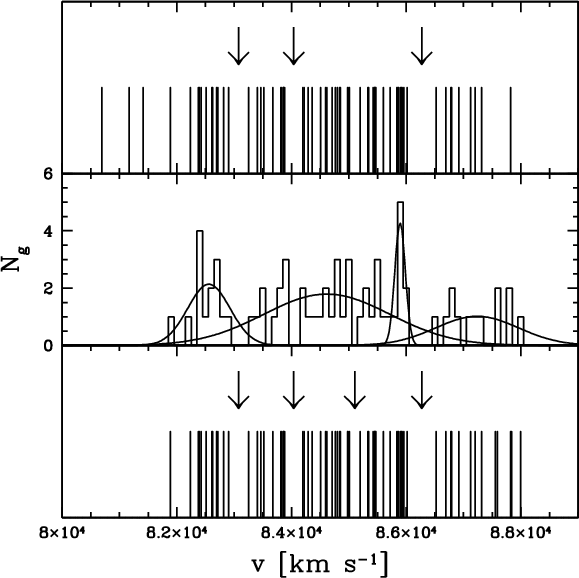

Figure 7:
Velocity distribution of radial velocities for the cluster
members. Upper and lower panels:
stripe density plots where arrow indicate
the position of the significant gaps (samples-A and B, respectively).
Central panel: velocity histogram with a binning of 100 km s![]() |
Open with DEXTER |
![]() |
Figure 8:
Spatial distribution on the sky and relative isodensity contour map
of 645 likely cluster members (according to the colour-magnitude
relation) with ![]() ![]() |
Open with DEXTER |
![]() |

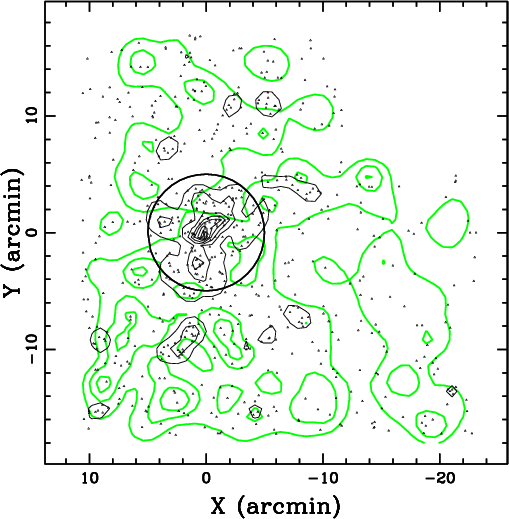

Figure 9:
Spatial distribution on the sky and relative isodensity contour map
of 149 likely cluster members with ![]() ![]() ![]() ![]() |
Open with DEXTER |
![]() |

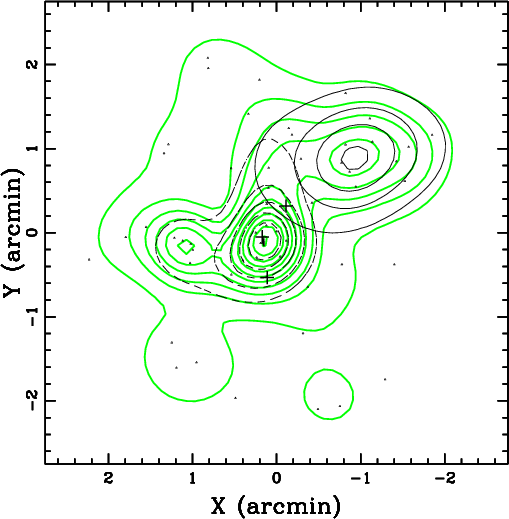

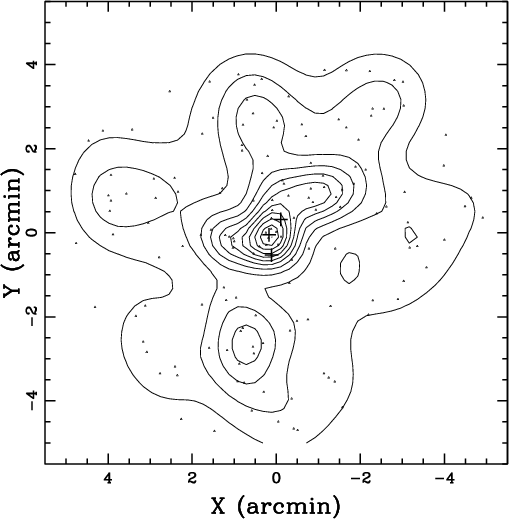

Figure 10:
Spatial distribution on the sky and relative isodensity contour map
of 54 likely cluster members with ![]() ![]() ![]() ![]() |
Open with DEXTER |
![]() |
Figure 11:
![]() ![]() ![]() |
Open with DEXTER |
