$\begin{figure} \par\includegraphics[height=8cm,width=8cm,clip]{4428f2a.ps}\inclu... ...]{4428f2c.ps}\includegraphics[height=8cm,width=8cm,clip]{4428f2d.ps}\end{figure}$ Figure 2: The VLA (A-conf.) 15 GHz map ( upper left) and VLBA maps of 0809+404 at 1.65, 5 and 8.4 GHz. Contours increase by a factor 2 and the first contour level corresponds to $\approx$ $3\sigma$ .
Open with DEXTER

In the text

$\begin{figure} \par {\hspace*{1.1cm}\includegraphics[height=11cm,width=5.5cm,ang... ...hspace*{1cm} \includegraphics[height=6cm,width=6cm,clip]{4428f3d.ps}\end{figure}$ Figure 3: The VLBA maps of 0949+287 at 1.65 GHz ( top) and 5 GHz ( middle). The bottom row of panels show enlargements of the main components of the source at 5 GHz. Contours increase by a factor 2 and the first contour level corresponds to $\approx$ $3\sigma$ . The position of the optical object extracted from SDSS/DR4 is marked with a cross.
Open with DEXTER

In the text

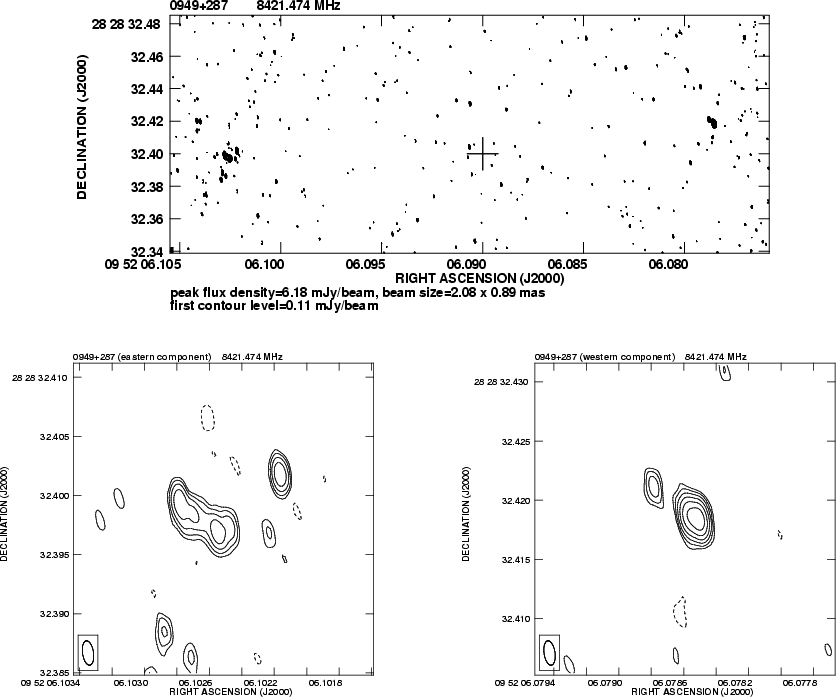

$\begin{figure} \par {\hspace*{1.1cm}\includegraphics[height=11cm,width=5.5cm,ang... ...space*{1cm} \includegraphics[height=6cm,width=6cm,clip]{4428f3g.ps} \end{figure}$ Figure 4: continued. The VLBA map of 0949+287 ( top) and its enlarged components ( bottom) at 8.4 GHz. Contours increase by a factor 2 and the first contour level corresponds to $\approx$ $3\sigma$ . The position of the optical object extracted from SDSS/DR4 is marked with a cross.
Open with DEXTER

In the text

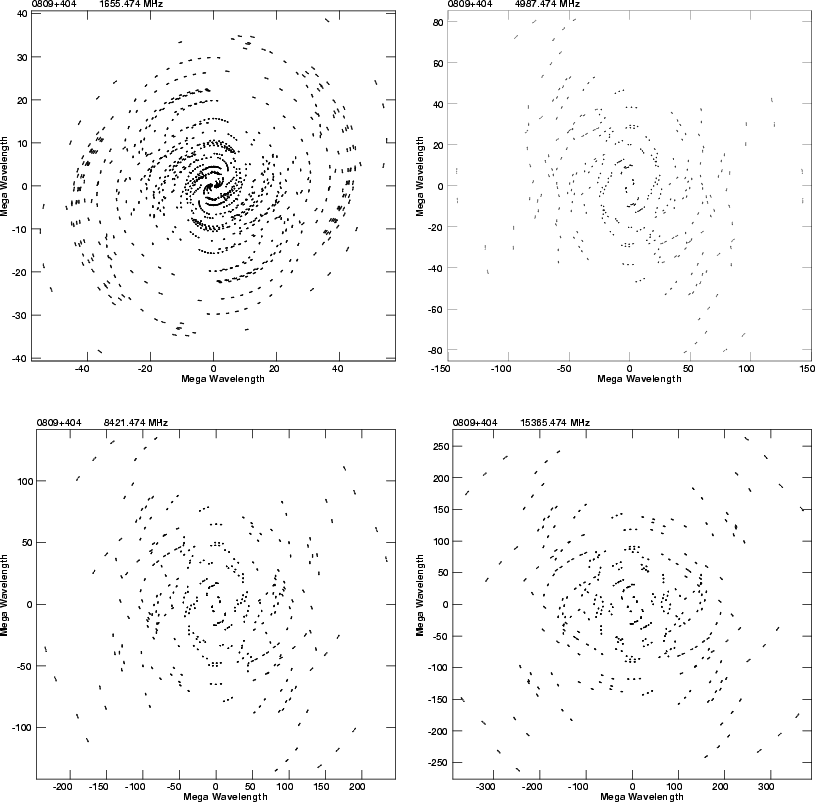

$\begin{figure} \par\includegraphics[height=7cm,width=7cm,clip]{4428f1a.ps}\inclu... ...]{4428f1c.ps}\includegraphics[height=7cm,width=7cm,clip]{4428f1d.ps}\end{figure}$	Figure 1: Typical VLBA u-v coverage at four different frequencies attained during the observations of 0809+404.
Open with DEXTER

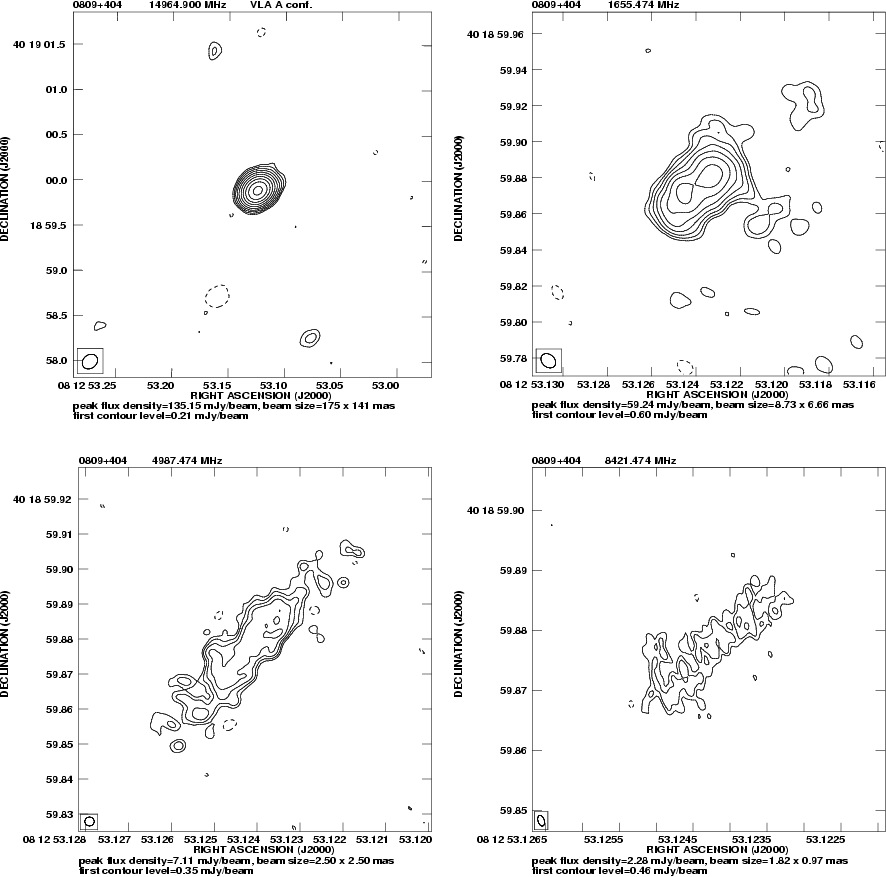

$\begin{figure} \par\includegraphics[height=8cm,width=8cm,clip]{4428f2a.ps}\inclu... ...]{4428f2c.ps}\includegraphics[height=8cm,width=8cm,clip]{4428f2d.ps}\end{figure}$	Figure 2: The VLA (A-conf.) 15 GHz map ( upper left) and VLBA maps of 0809+404 at 1.65, 5 and 8.4 GHz. Contours increase by a factor 2 and the first contour level corresponds to $\approx$ $3\sigma$ .
Open with DEXTER

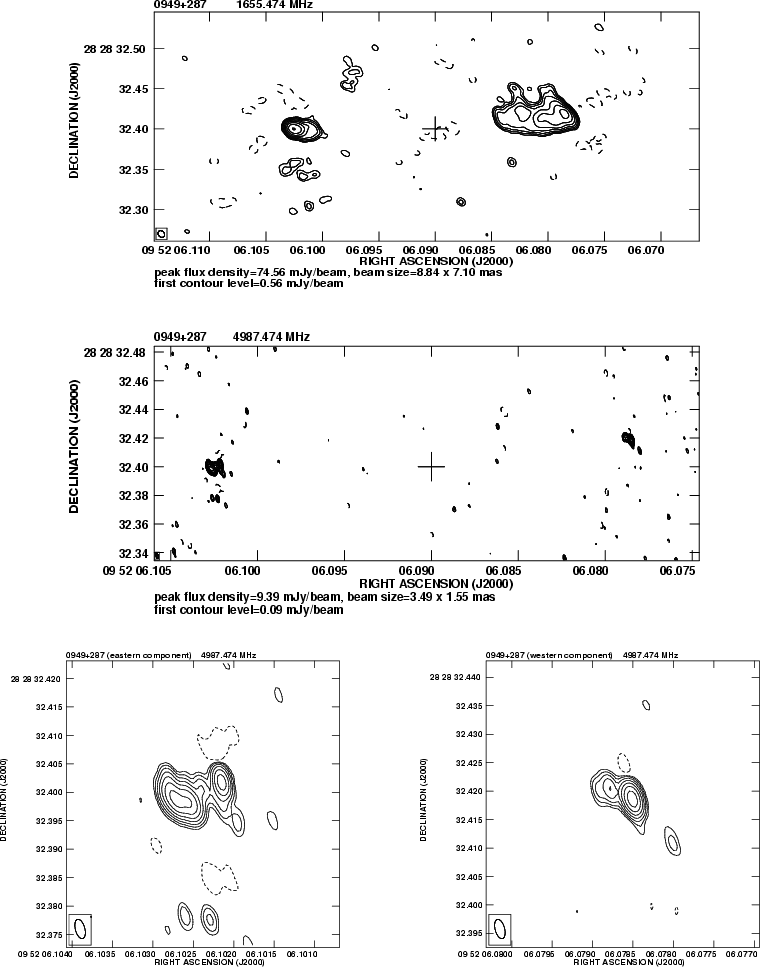

$\begin{figure} \par {\hspace{1.1cm}\includegraphics[height=11cm,width=5.5cm,ang... ...hspace{1cm} \includegraphics[height=6cm,width=6cm,clip]{4428f3d.ps}\end{figure}$	Figure 3: The VLBA maps of 0949+287 at 1.65 GHz ( top) and 5 GHz ( middle). The bottom row of panels show enlargements of the main components of the source at 5 GHz. Contours increase by a factor 2 and the first contour level corresponds to $\approx$ $3\sigma$ . The position of the optical object extracted from SDSS/DR4 is marked with a cross.
Open with DEXTER

$\begin{figure} \par {\hspace{1.1cm}\includegraphics[height=11cm,width=5.5cm,ang... ...space{1cm} \includegraphics[height=6cm,width=6cm,clip]{4428f3g.ps} \end{figure}$	Figure 4: continued. The VLBA map of 0949+287 ( top) and its enlarged components ( bottom) at 8.4 GHz. Contours increase by a factor 2 and the first contour level corresponds to $\approx$ $3\sigma$ . The position of the optical object extracted from SDSS/DR4 is marked with a cross.
Open with DEXTER

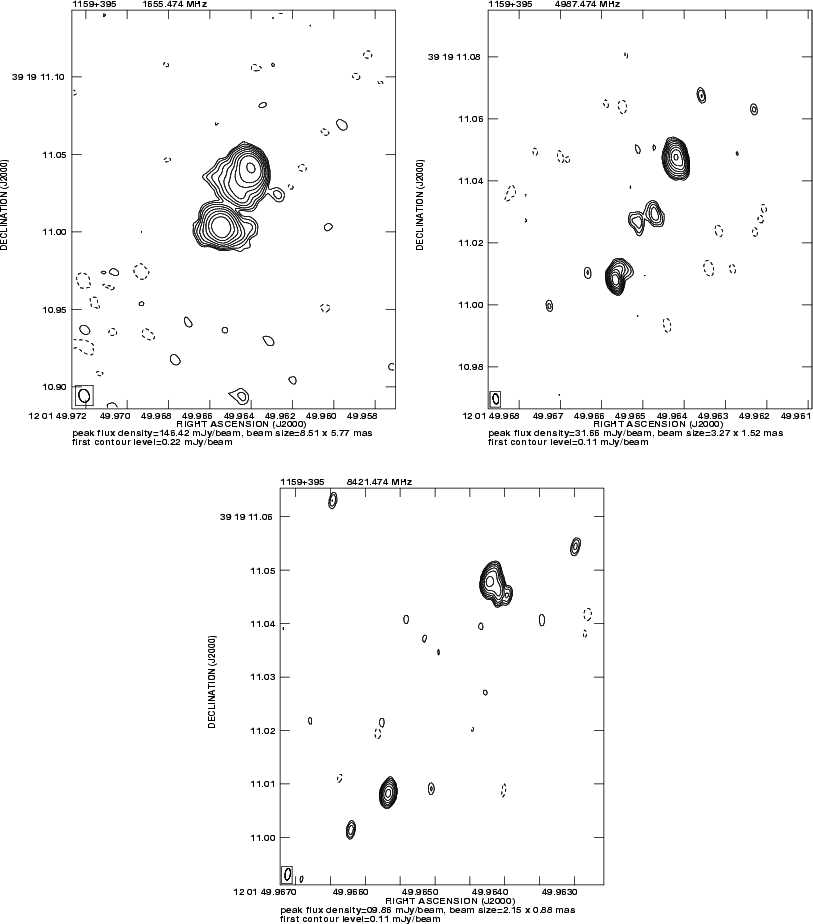

$\begin{figure} \par\includegraphics[height=8cm,width=7cm,clip]{4428f4a.ps}\inclu... ...ce*{3.5cm}\includegraphics[height=8cm,width=7cm,clip]{4428f4c.ps} } \end{figure}$	Figure 5: The VLBA maps of 1159+395 at 1.65, 5 and 8.4 GHz. Contours increase by a factor 2 and the first contour level corresponds to $\approx$ $3\sigma$ .
Open with DEXTER

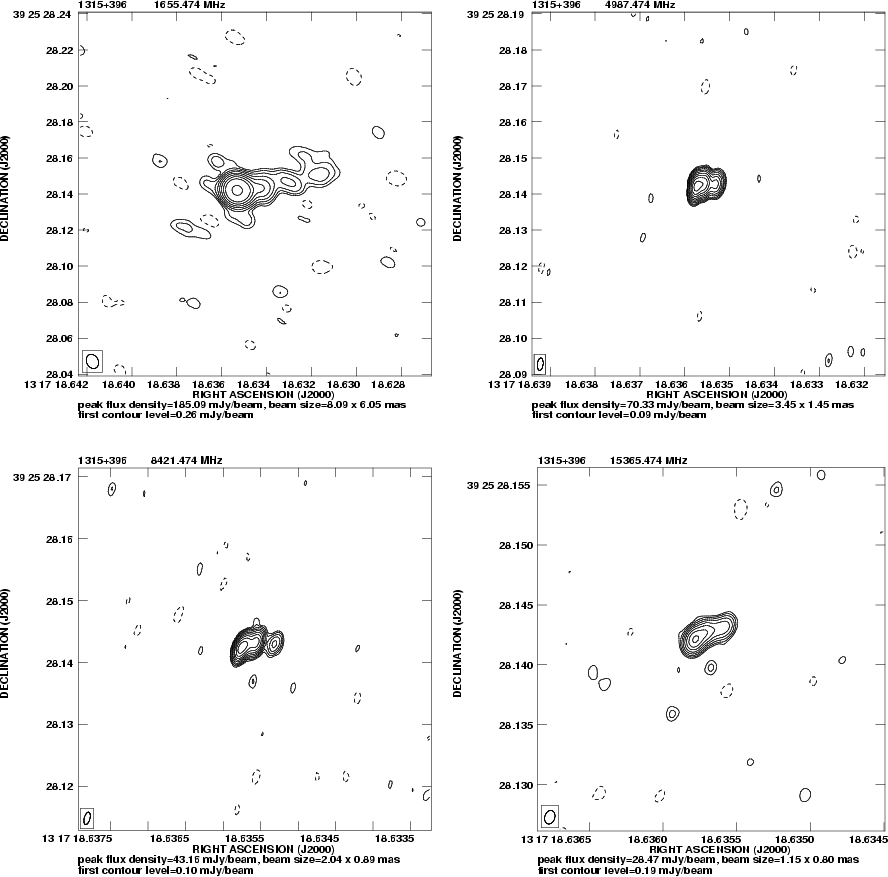

$\begin{figure} \par\includegraphics[height=8cm,width=8cm,clip]{4428f5a.ps}\inclu... ...]{4428f5c.ps}\includegraphics[height=8cm,width=8cm,clip]{4428f5d.ps}\end{figure}$	Figure 6: The VLBA maps of 1315+396 at 1.65, 5, 8.4 and 15.4 GHz. Contours increase by a factor 2 and the first contour level corresponds to $\approx$ $3\sigma$ .
Open with DEXTER

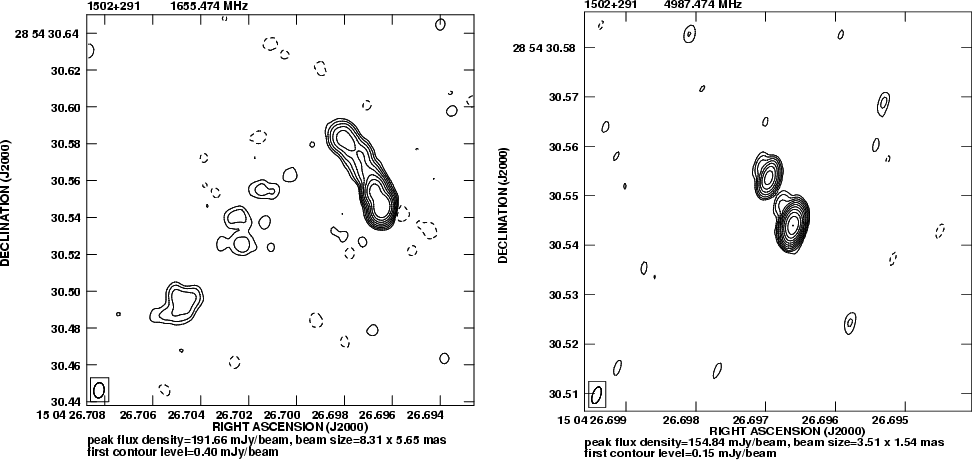

$\begin{figure} \par\includegraphics[height=8cm,width=8cm,clip]{4428f6a.ps}\includegraphics[height=8cm,width=8cm,clip]{4428f6b.ps}\end{figure}$	Figure 7: The VLBA maps of 1502+291 at 1.65 and 5 GHz. Contours increase by a factor 2 and the first contour level corresponds to $\approx$ $3\sigma$ .
Open with DEXTER

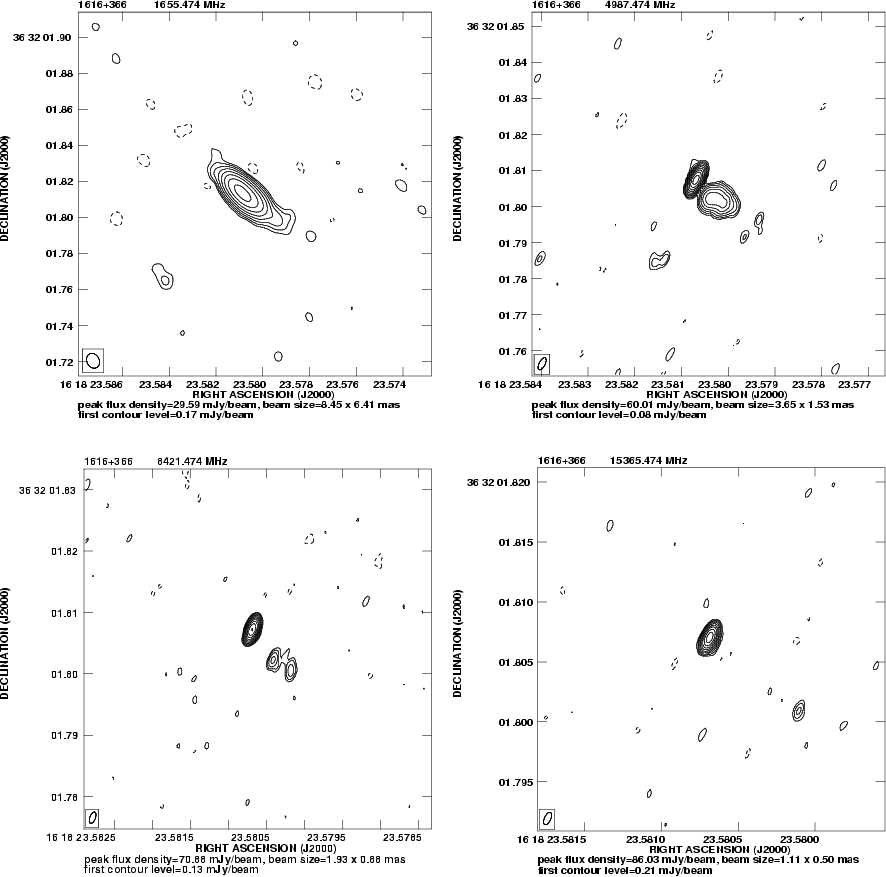

$\begin{figure} \par\includegraphics[height=8cm,width=8cm,clip]{4428f7a.ps}\inclu... ...]{4428f7c.ps}\includegraphics[height=8cm,width=8cm,clip]{4428f7d.ps}\end{figure}$	Figure 8: The VLBA maps of 1616+366 at 1.65, 5, 8.4 and 15.4 GHz. Contours increase by a factor 2 and the first contour level corresponds to $\approx$ $3\sigma$ .
Open with DEXTER
