All Figures

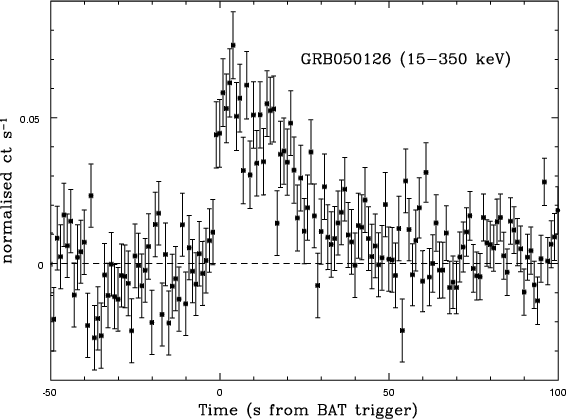

$\begin{figure} \par\includegraphics[angle=270,width=8cm]{4457fig1.eps} \end{figure}$ Figure 1: 15-350 keV mask-weighted (i.e. background subtracted) BAT lightcurve of GRB050126. The x-axis indicates the elapsed time in seconds from the BAT rate trigger.
Open with DEXTER

In the text

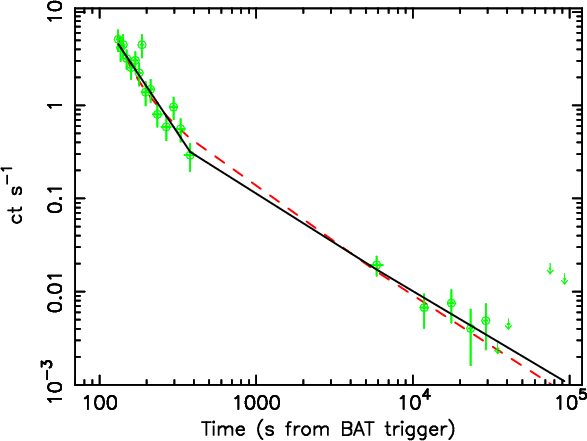

$\begin{figure} \par\includegraphics[angle=270,width=8.3cm]{4457fig2.eps} \end{figure}$ Figure 2: The XRT 0.2-10.0 keV decay light-curve for GRB050126. All data were taken in PC mode. The decay curve is well-fit by a broken power-law (solid line) with slope 2.52^+0.50_-0.22 at early times flattening to a slope of 1.0 after 424 s (Cash statistic = 26.1 for 20 data points). Also shown is a powerlaw fit to the decay light-curve accounting for the onset of the X-ray afterglow $t_{\rm a}$ (dashed line), i.e. $f_{\nu }\propto (t-t_{\rm a})^{-\alpha }$ , with a best-fit slope of $\alpha =1.08^{+0.09}_{-0.09}$ and $t_{\rm a}=105.1^{+9.1}_{-11.3}$ s and Cash statistic 31.7 for 20 data points. The green arrows at later times are $1\sigma$ upper limits.
Open with DEXTER

In the text

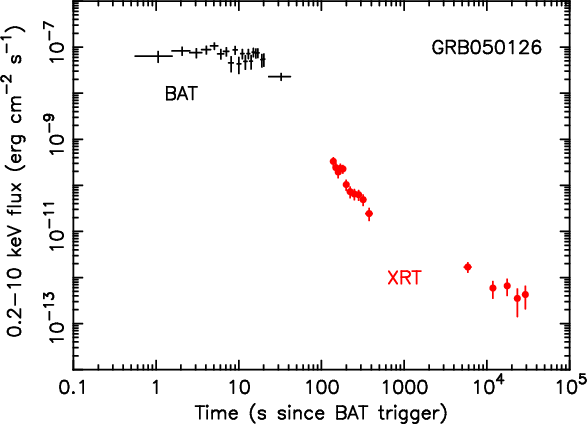

$\begin{figure} \par {\includegraphics[angle=270,width=8.3cm]{4457fig3.eps} }\end{figure}$ Figure 3: BAT-XRT decay light-curve for GRB050126 (0.2-10 keV, see text for details). Note that the early steep decline phase in the XRT light-curve joins smoothly with the late-time BAT data.
Open with DEXTER

In the text

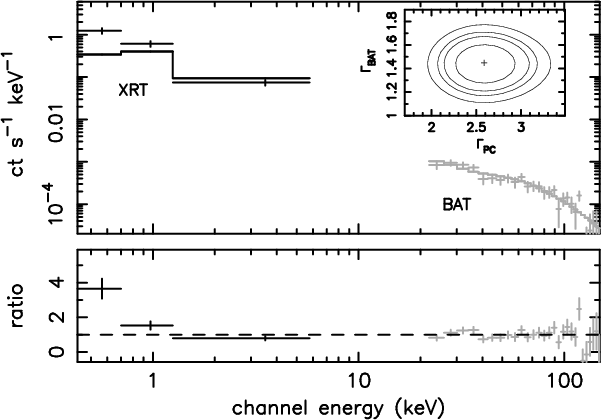

$\begin{figure} \par {\includegraphics[angle=270,width=8.5cm]{4457fig4.eps} }\end{figure}$ Figure 4: Combined power-law fit to the BAT (20-150 keV) and pre-break XRT (0.2-10 keV) spectra of GRB050126. The data are inconsistent with a single powerlaw fit at greater than >99% confidence. Inset: 68%, 90%, 95%, and 99% confidence contours indicating the Photon indices for BAT and XRT PC mode data in a combined fit to the BAT and XRT spectra for GRB050126. The data are inconsistent with a single power-law fit to the BAT and XRT spectra at >99%confidence.
Open with DEXTER

In the text

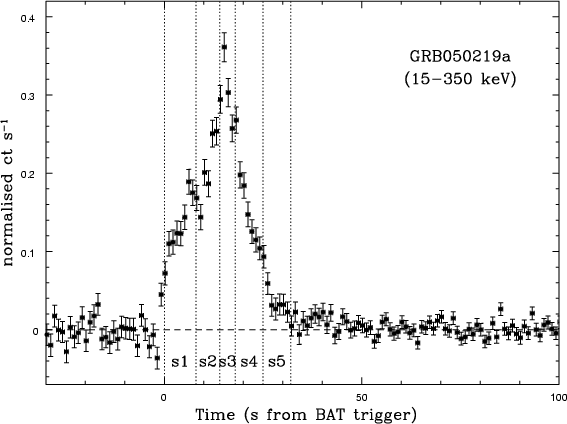

$\begin{figure} \par {\includegraphics[angle=270,width=8cm]{4457fig5.eps} }\end{figure}$ Figure 5: 15-350 keV mask-weighted BAT lightcurve of GRB050219a. The dotted lines (segments 1-5) indicate the time-slices used for the BAT spectral evolution analysis. Zero represents the BAT rate trigger time.
Open with DEXTER

In the text

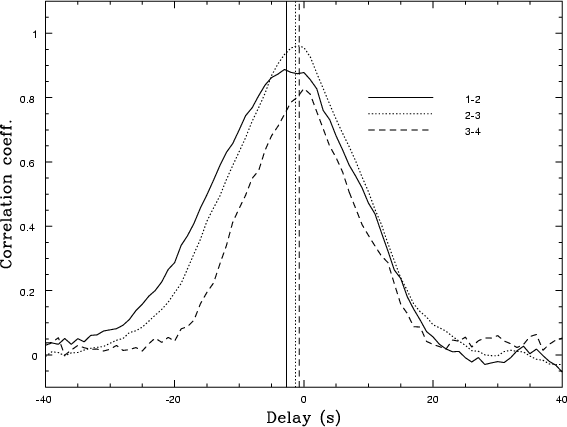

$\begin{figure} \par {\includegraphics[angle=270,width=8cm]{4457fig6.eps} }\end{figure}$ Figure 6: Cross-correlation functions indicating the interband delays in 4 BAT channels for GRB050219a. The light-curves are highly correlated with the hardest bands leading the softer bands by $0.7\pm 0.1$ s (band 4 - band 3), $1.3\pm 0.1$ s (band 3 - band 2), and $2.7\pm 0.1$ s (band 2 - band 1) respectively.
Open with DEXTER

In the text

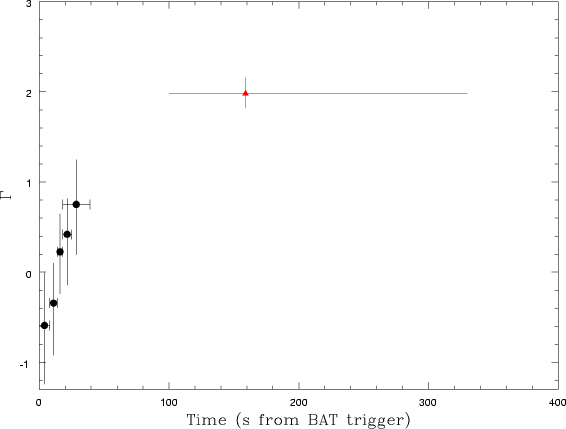

$\begin{figure} \par {\includegraphics[angle=270,width=8cm]{4457fig7.eps} } \end{figure}$ Figure 7: Evolution of the BAT photon index 15-150 keV (black points) for GRB050219a during segments 1-5 (see text for details). The red triangle indicates the 0.2-10 keV XRT photon index during the steep early decline phase of the burst. The BAT and XRT errors are 90% confidence limits on the spectral fit.
Open with DEXTER

In the text

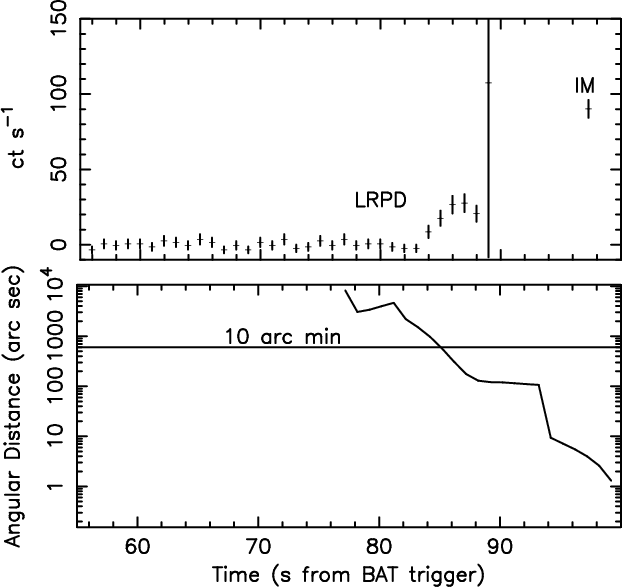

$\begin{figure} \par\resizebox{8.8cm}{!}{\includegraphics[angle=270,width=7cm]{44... ...box{8.8cm}{!}{\includegraphics[angle=270,width=7cm]{4457fig8b.eps}} \end{figure}$ Figure 8: Timeline showing the LrPD count-rate during the slew, settling and early pointing phase observations of GRB050219a. The object enters the XRT field of view ${\approx }82$ s after the BAT trigger. Observations at $t_{\rm b}+86$ s onwards are less than 5 arcmin from the final pointing and are well within the XRT field of view ( $24\times 24$ arcmin squared).
Open with DEXTER

In the text

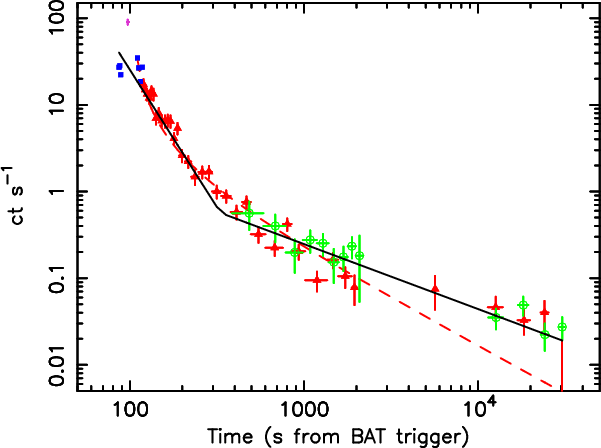

$\begin{figure} \par {\includegraphics[angle=270,width=8.5cm]{4457fig9.eps} }\end{figure}$ Figure 9: The XRT 0.2-10.0 keV decay light-curve for GRB050219a. Colours indicate LrPD data (blue), IM data (magenta), WT data (red), and PC mode data (green). The best-fit broken power-law fit to the decay curve after 100 s has a decay slope $\alpha _{1}=3.17^{+0.24}_{-0.16}$ at early times flattening to a slope of $\alpha _{2}=0.75^{+0.09}_{-0.07}$ after 332⁺²⁶_-22 s (solid line), $\chi ^{2}=74.6$ for 36 d.o.f. We also show (dashed line) the result of fitting the function $f_{\nu }(t)\propto (t-t_{\rm a})^{-\alpha }$ , where $t_{\rm a}$ represents the onset of the afterglow, with a best-fit slope $\alpha =1.10^{+0.09}_{-0.08}$ and $t_{\rm a}=100.7^{+2.8}_{-4.0}$ s. This model is a poor approximation to the late time data (t>5000 s). We note that the early LrPD and IM data suggest a possible flare at early times, or alternatively, may indicate the onset of the afterglow emission.
Open with DEXTER

In the text

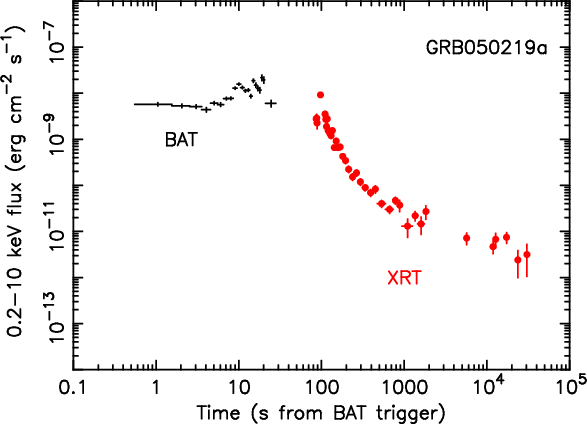

$\begin{figure} \par {\includegraphics[angle=270,width=8.3cm]{4457fig10.eps} }\end{figure}$ Figure 10: BAT-XRT light-curve for GRB050219a (0.2-10 keV, see text for details). Note that the early steep decline in the XRT data does not appear to join up smoothly with the late time BAT data.
Open with DEXTER

In the text

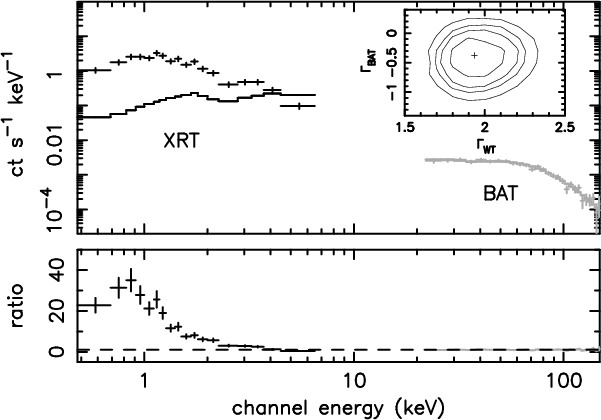

$\begin{figure} \par {\includegraphics[angle=270,width=8.5cm]{4457fig11.eps} }\end{figure}$ Figure 11: Combined power-law fit to the BAT (20-150 keV) and XRT (0.2-10 keV) spectra of GRB050219a. Inset: 68.3%, 90%, 95.4% and 99% confidence contours indicating the relative Photon indices for BAT and XRT in a combined fit to the BAT and XRT spectra of GRB050219a. The data are inconsistent with a single power-law fit to the BAT and XRT spectra at greater than 99% confidence.
Open with DEXTER

In the text

$\begin{figure} \par\includegraphics[angle=270,width=8cm]{4457fig1.eps} \end{figure}$	Figure 1: 15-350 keV mask-weighted (i.e. background subtracted) BAT lightcurve of GRB050126. The x-axis indicates the elapsed time in seconds from the BAT rate trigger.
Open with DEXTER

$\begin{figure} \par {\includegraphics[angle=270,width=8.3cm]{4457fig3.eps} }\end{figure}$	Figure 3: BAT-XRT decay light-curve for GRB050126 (0.2-10 keV, see text for details). Note that the early steep decline phase in the XRT light-curve joins smoothly with the late-time BAT data.
Open with DEXTER

$\begin{figure} \par {\includegraphics[angle=270,width=8cm]{4457fig5.eps} }\end{figure}$	Figure 5: 15-350 keV mask-weighted BAT lightcurve of GRB050219a. The dotted lines (segments 1-5) indicate the time-slices used for the BAT spectral evolution analysis. Zero represents the BAT rate trigger time.
Open with DEXTER

$\begin{figure} \par {\includegraphics[angle=270,width=8cm]{4457fig6.eps} }\end{figure}$	Figure 6: Cross-correlation functions indicating the interband delays in 4 BAT channels for GRB050219a. The light-curves are highly correlated with the hardest bands leading the softer bands by $0.7\pm 0.1$ s (band 4 - band 3), $1.3\pm 0.1$ s (band 3 - band 2), and $2.7\pm 0.1$ s (band 2 - band 1) respectively.
Open with DEXTER

$\begin{figure} \par {\includegraphics[angle=270,width=8cm]{4457fig7.eps} } \end{figure}$	Figure 7: Evolution of the BAT photon index 15-150 keV (black points) for GRB050219a during segments 1-5 (see text for details). The red triangle indicates the 0.2-10 keV XRT photon index during the steep early decline phase of the burst. The BAT and XRT errors are 90% confidence limits on the spectral fit.
Open with DEXTER

$\begin{figure} \par\resizebox{8.8cm}{!}{\includegraphics[angle=270,width=7cm]{44... ...box{8.8cm}{!}{\includegraphics[angle=270,width=7cm]{4457fig8b.eps}} \end{figure}$	Figure 8: Timeline showing the LrPD count-rate during the slew, settling and early pointing phase observations of GRB050219a. The object enters the XRT field of view ${\approx }82$ s after the BAT trigger. Observations at $t_{\rm b}+86$ s onwards are less than 5 arcmin from the final pointing and are well within the XRT field of view ( $24\times 24$ arcmin squared).
Open with DEXTER

$\begin{figure} \par {\includegraphics[angle=270,width=8.3cm]{4457fig10.eps} }\end{figure}$	Figure 10: BAT-XRT light-curve for GRB050219a (0.2-10 keV, see text for details). Note that the early steep decline in the XRT data does not appear to join up smoothly with the late time BAT data.
Open with DEXTER

$\begin{figure} \par {\includegraphics[angle=270,width=8.5cm]{4457fig11.eps} }\end{figure}$	Figure 11: Combined power-law fit to the BAT (20-150 keV) and XRT (0.2-10 keV) spectra of GRB050219a. Inset: 68.3%, 90%, 95.4% and 99% confidence contours indicating the relative Photon indices for BAT and XRT in a combined fit to the BAT and XRT spectra of GRB050219a. The data are inconsistent with a single power-law fit to the BAT and XRT spectra at greater than 99% confidence.
Open with DEXTER
