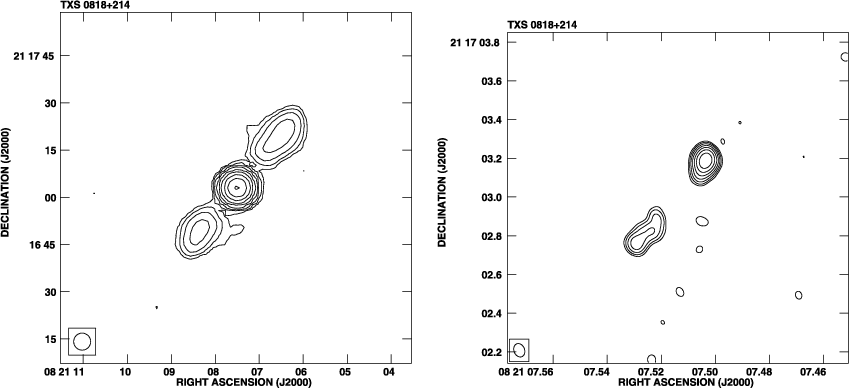

Figure 1:
TXS 0818+214. Left panel: FIRST map. Contours increase by a factor of 2; the first contour level is at 0.5 mJy/beam.
Right panel: MERLIN map at 5 GHz. Contours increase by a
factor of 2; the first contour level corresponds to
level,
which is 0.23 mJy/beam. The peak flux density is 27.3 mJy/beam.
The beam size is
 milliarcsec at a position
angle of
 . |
| Open with DEXTER | |
In the text
![\begin{figure}
\par\includegraphics[width=5.8cm,clip]{3994fg2a.eps}\hspace*{3mm}
\includegraphics[width=5.8cm,clip]{3994fg2b.eps}
\end{figure}](/articles/aa/full/2006/11/aa3994-05/img29.gif) |

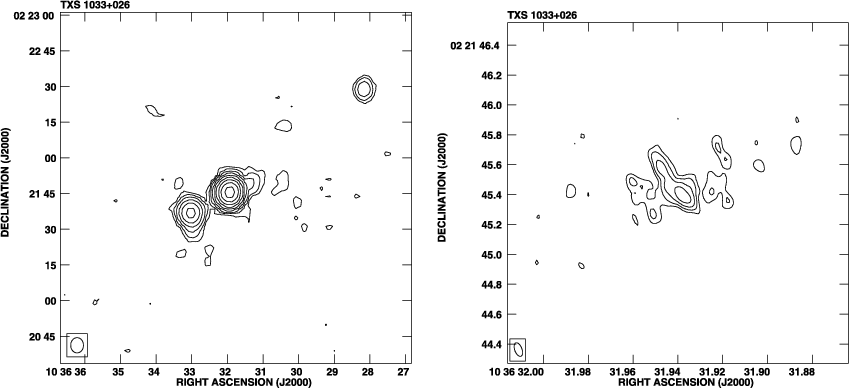

Figure 2:
TXS 1033+026. Left panel: FIRST map. Contours increase by a factor of
2; the first contour level is at 0.5 mJy/beam.
Right panel: MERLIN map at 5 GHz. Contours increase by a
factor of 2; the first contour level corresponds to
level,
which is 0.38 mJy/beam. The peak flux density is 5.4 mJy/beam.
The beam size is
 milliarcsec at a position
angle of
. |
| Open with DEXTER | |
In the text
![\begin{figure}
\par\includegraphics[scale=1.0]{3994fig3.eps}
\end{figure}](/articles/aa/full/2006/11/aa3994-05/img34.gif) |
Figure 3:
Negative of the SDSS/DR4 optical image centred on the position of
the radio source TXS 1033+026. The size of the image is approximately
 . |
| Open with DEXTER | |
In the text
![\begin{figure}
\par\includegraphics[width=5.8cm,clip]{3994fg4a.eps}\hspace*{3mm}
\includegraphics[width=5.8cm,clip]{3994fg4b.eps}
\end{figure}](/articles/aa/full/2006/11/aa3994-05/img40.gif) |

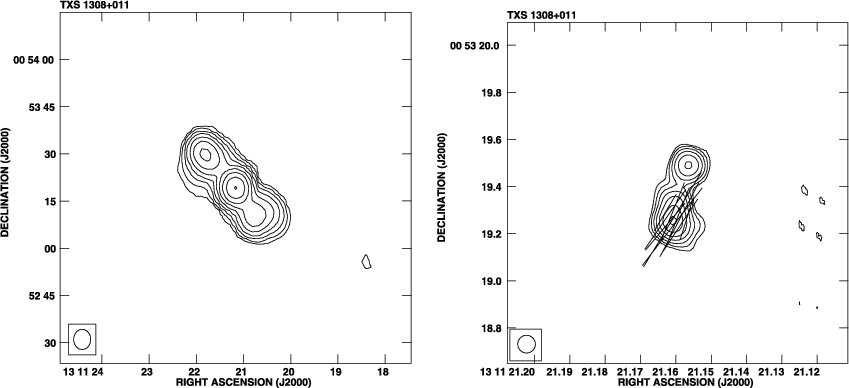

Figure 4:
TXS 1308+011. Left panel: FIRST map. Contours increase by a factor of
2; the first contour level is at 0.5 mJy/beam.
Right panel: MERLIN map at 5 GHz. Contours increase by a
factor of 2; the first contour level corresponds to
level,
which is 0.35 mJy/beam. The peak flux density is 24.9 mJy/beam.
The polarisation line of
amounts to 2.5 mJy/beam.
The circular beam size is 75 milliarcsec. |
| Open with DEXTER | |
In the text
![\begin{figure}
\par\includegraphics[width=5.8cm,clip]{3994fg5a.eps}\hspace*{3mm}
\includegraphics[width=5.8cm,clip]{3994fg5b.eps}
\end{figure}](/articles/aa/full/2006/11/aa3994-05/img45.gif) |

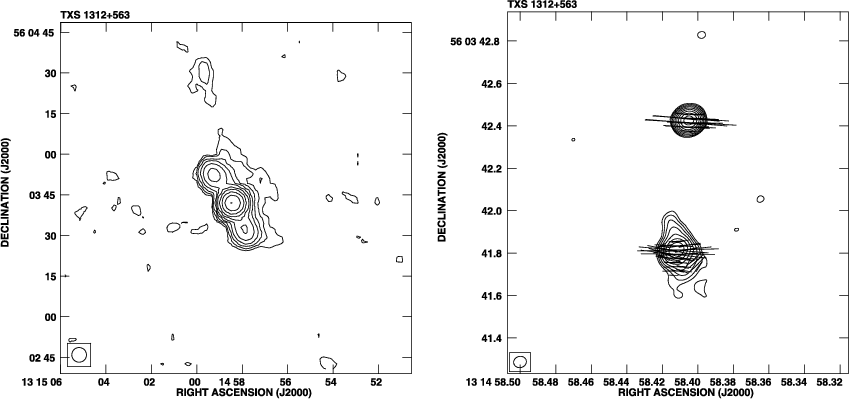

Figure 5:
TXS 1312+563. Left panel: FIRST map. Contours increase by a factor of 2; the first contour level is at 0.5 mJy/beam.
Right panel: MERLIN map at 5 GHz. Contours increase by a
factor of 2; the first contour level corresponds to
level,
which is 0.23 mJy/beam. The peak flux density is 77.7 mJy/beam.
Polarisation line of
amounts to 2 mJy/beam.
The beam size is
 milliarcseconds at a position
angle of
 . |
| Open with DEXTER | |
