All Figures

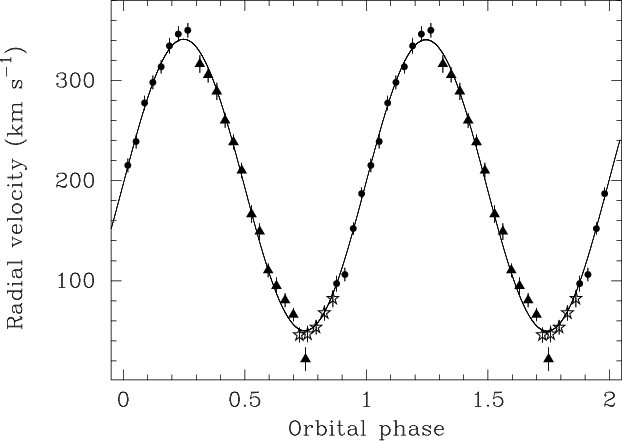

$\begin{figure} \par\includegraphics[angle=-90,width=8.8cm,clip]{3517fig1.ps} \end{figure}$ Figure 1: Radial velocity curve for Cen X-4 computed using a K7 V template. Observations were performed on 26 (triangles), 27 (dots) and 28 (stars) May 2001. Two phases are shown for clarity. The best sine-wave fit is also shown (see Sect. 4.1).
Open with DEXTER

In the text

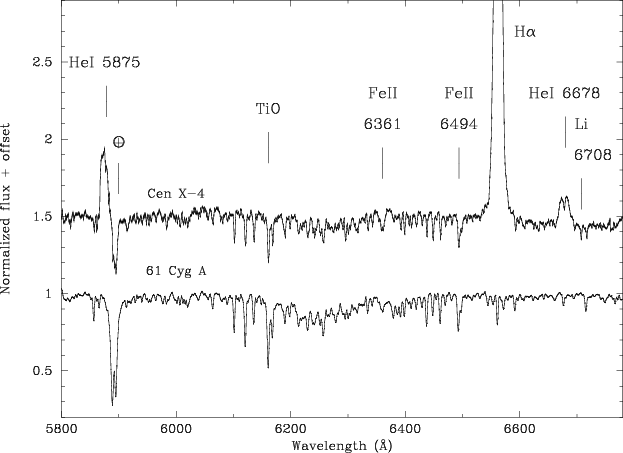

$\begin{figure} \par\includegraphics[angle=-90,width=8.8cm,clip]{3517fig2.ps} \end{figure}$ Figure 2: Doppler-corrected average of the 30 spectra of Cen X-4 in quiescence that were obtained and analyzed in the present study ( top spectrum) compared with a K5 V template (61 Cyg A). Arbitrary vertical offsets have been applied for clarity.
Open with DEXTER

In the text

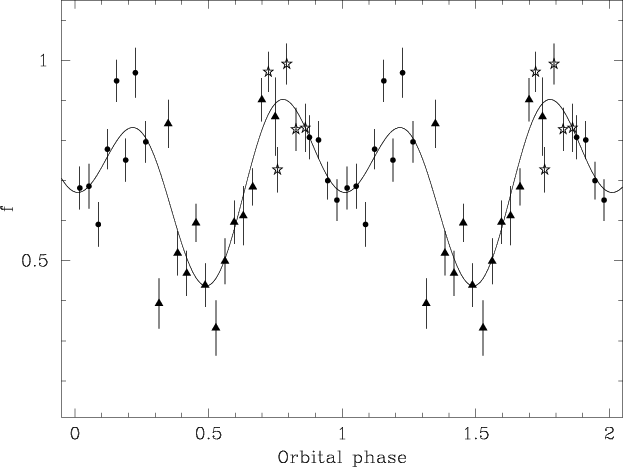

$\begin{figure} \par\includegraphics[angle=-90,width=8.8cm,clip]{3517fig3.ps} \end{figure}$ Figure 3: Variation of fractional contribution f of the companion star with orbital phase. Observations were performed on 26 (triangles), 27 (dots) and 28 (stars) May 2001. Two cycles are shown for clarity.
Open with DEXTER

In the text

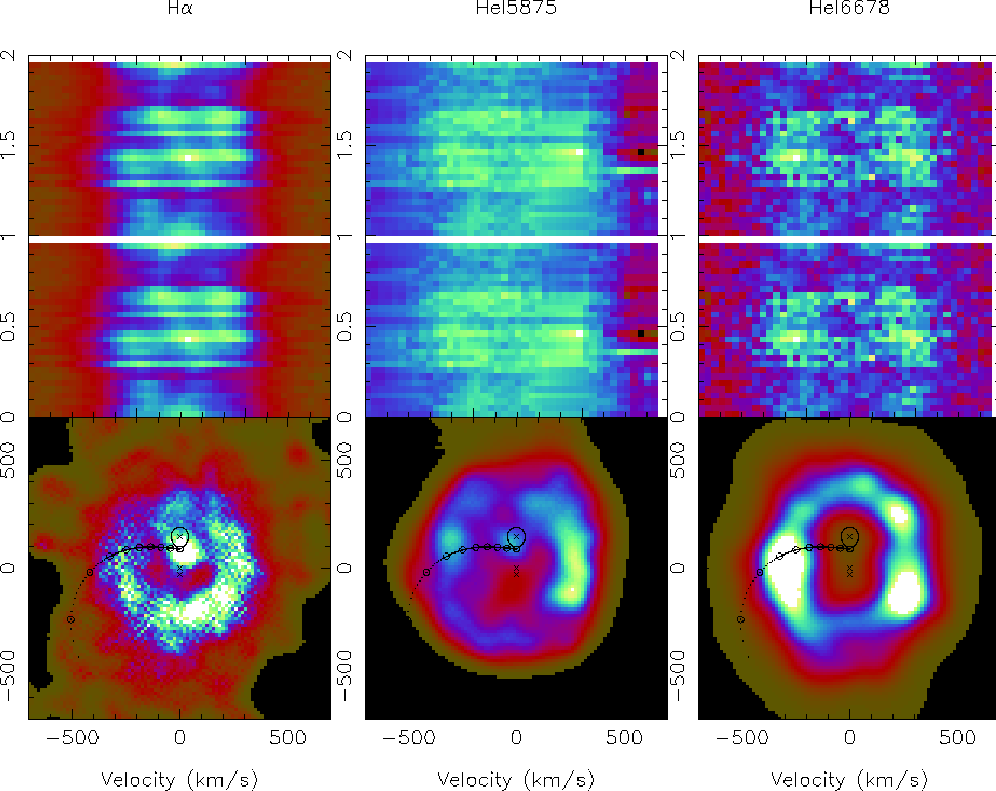

$\begin{figure} \par\includegraphics[width=17.6cm,clip]{3517fig4.ps} \end{figure}$ Figure 4: Doppler maps of the H $\alpha$ , HeI $\lambda$ 5876 and HeI $\lambda$ 6678 lines. The trailed spectra are shown in the upper panels and, for clarity, the same cycle has been plotted twice. The Roche lobe of the secondary and the predicted velocity of the gas stream are plotted for K₂ = 145.8 km s^-1 and q=0.18. Distances are marked along the curve in open circles and are in multiples of 0.1R_L1. The center of mass of the system and the neutron star position are denoted by crosses.
Open with DEXTER

In the text

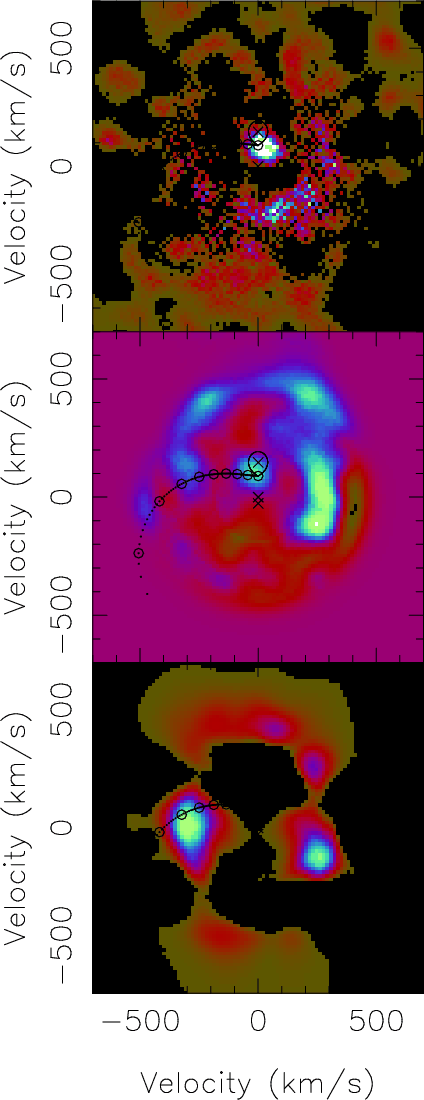

$\begin{figure} \par\includegraphics[angle=-90,width=6cm,clip]{3517fig5.ps} \end{figure}$ Figure 5: Doppler maps of the H $\alpha$ , HeI $\lambda$ 5876 and HeI $\lambda$ 6678 lines ( from top to bottom) with the axisymmetric part of the emission component subtracted. Plot symbols are the same as in Fig. 4.
Open with DEXTER

In the text

$\begin{figure} \par\includegraphics[angle=-90,width=8.8cm,clip]{3517fig1.ps} \end{figure}$	Figure 1: Radial velocity curve for Cen X-4 computed using a K7 V template. Observations were performed on 26 (triangles), 27 (dots) and 28 (stars) May 2001. Two phases are shown for clarity. The best sine-wave fit is also shown (see Sect. 4.1).
Open with DEXTER

$\begin{figure} \par\includegraphics[angle=-90,width=8.8cm,clip]{3517fig2.ps} \end{figure}$	Figure 2: Doppler-corrected average of the 30 spectra of Cen X-4 in quiescence that were obtained and analyzed in the present study ( top spectrum) compared with a K5 V template (61 Cyg A). Arbitrary vertical offsets have been applied for clarity.
Open with DEXTER

$\begin{figure} \par\includegraphics[angle=-90,width=8.8cm,clip]{3517fig3.ps} \end{figure}$	Figure 3: Variation of fractional contribution f of the companion star with orbital phase. Observations were performed on 26 (triangles), 27 (dots) and 28 (stars) May 2001. Two cycles are shown for clarity.
Open with DEXTER

$\begin{figure} \par\includegraphics[angle=-90,width=6cm,clip]{3517fig5.ps} \end{figure}$	Figure 5: Doppler maps of the H $\alpha$ , HeI $\lambda$ 5876 and HeI $\lambda$ 6678 lines ( from top to bottom) with the axisymmetric part of the emission component subtracted. Plot symbols are the same as in Fig. 4.
Open with DEXTER
