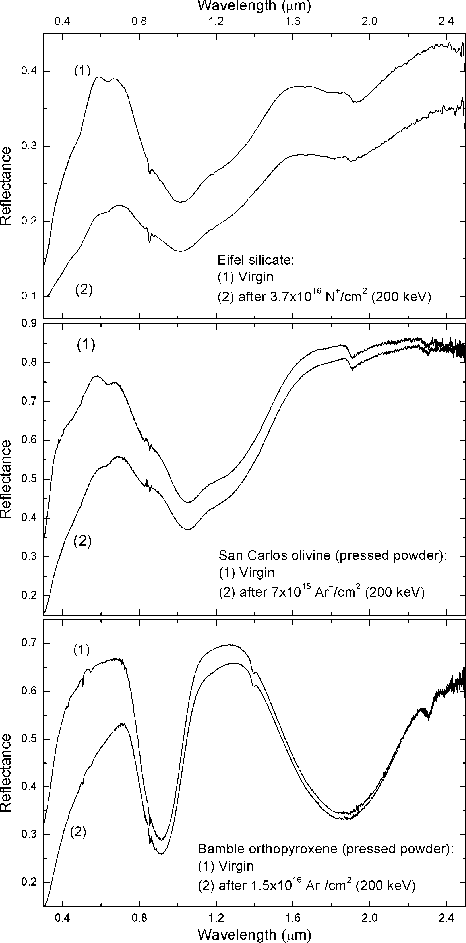

$\begin{figure} \par\includegraphics[width=8cm,clip]{3525fig1.ps} \end{figure}$ Figure 1: Reflectance spectra of virgin and irradiated Eifel ( upper panel), San Carlos orthopyroxene ( middle panel), and Bamble olivine ( lower panel).
Open with DEXTER

In the text

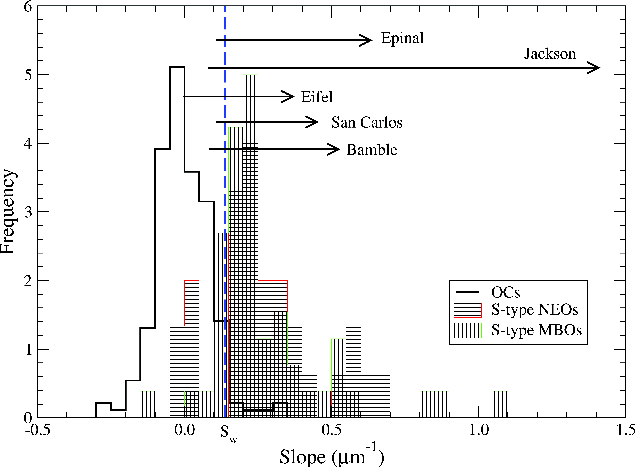

$\begin{figure} \includegraphics[width=9cm,clip]{3525fig2.eps} \end{figure}$ Figure 2: Spectral slope distributions of OCs, NEOs, and MBAs. Each distribution has been normalized (area = 1). The vertical dashed line marks the 95% OCs limit (corresponding to a slope of S_w=0.138 $\mu$ m^-1). Horizontal arrows mark the reddening measured for irradiated Epinal, Jackson (from Strazzulla et al. 2005; and Brunetto & Strazzulla 2005), Eifel, San Carlos, and Bamble (this work).
Open with DEXTER

In the text

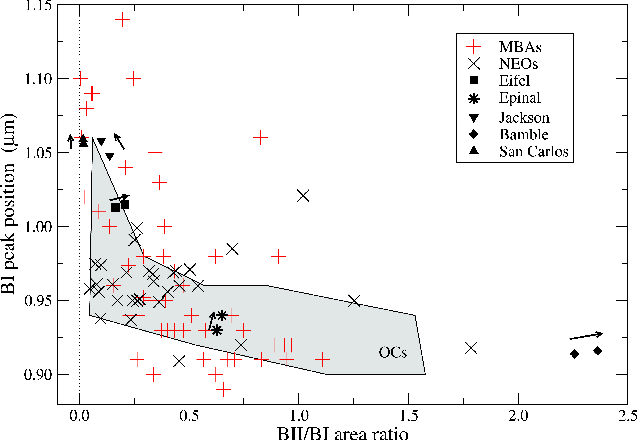

$\begin{figure} \includegraphics[width=9cm,clip]{3525fig3.eps} \end{figure}$ Figure 3: Band I peak position vs. BII/BI area ratio for MBAs and NEOs. Positions for virgin and irradiated silicate are also shown (arrows show their trend from virgin to irradiated). The shaded area corresponds to the region occupied by OCs. Symbol dimensions correspond to maximum error bars.
Open with DEXTER

In the text

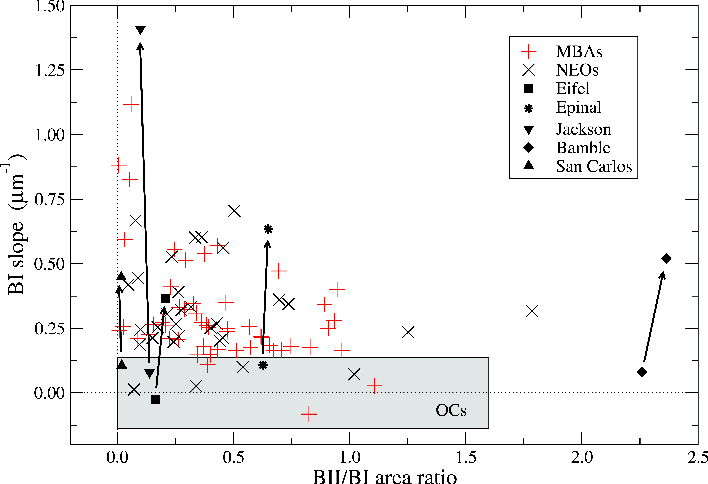

$\begin{figure} \includegraphics[width=10cm]{3525fig4.eps} %\end{figure}$ Figure 4: Spectral slope vs. BII/BI area ratio for MBAs and NEOs. Vertical arrows show the trend from virgin to irradiated silicates. The shaded box contains 95% of OCs as described in Fig. 2. Symbol dimensions correspond to maximum error bars.
Open with DEXTER

In the text

$\begin{figure} \par\includegraphics[width=8cm,clip]{3525fig1.ps} \end{figure}$	Figure 1: Reflectance spectra of virgin and irradiated Eifel ( upper panel), San Carlos orthopyroxene ( middle panel), and Bamble olivine ( lower panel).
Open with DEXTER

$\begin{figure} \includegraphics[width=9cm,clip]{3525fig3.eps} \end{figure}$	Figure 3: Band I peak position vs. BII/BI area ratio for MBAs and NEOs. Positions for virgin and irradiated silicate are also shown (arrows show their trend from virgin to irradiated). The shaded area corresponds to the region occupied by OCs. Symbol dimensions correspond to maximum error bars.
Open with DEXTER

$\begin{figure} \includegraphics[width=10cm]{3525fig4.eps} %\end{figure}$	Figure 4: Spectral slope vs. BII/BI area ratio for MBAs and NEOs. Vertical arrows show the trend from virgin to irradiated silicates. The shaded box contains 95% of OCs as described in Fig. 2. Symbol dimensions correspond to maximum error bars.
