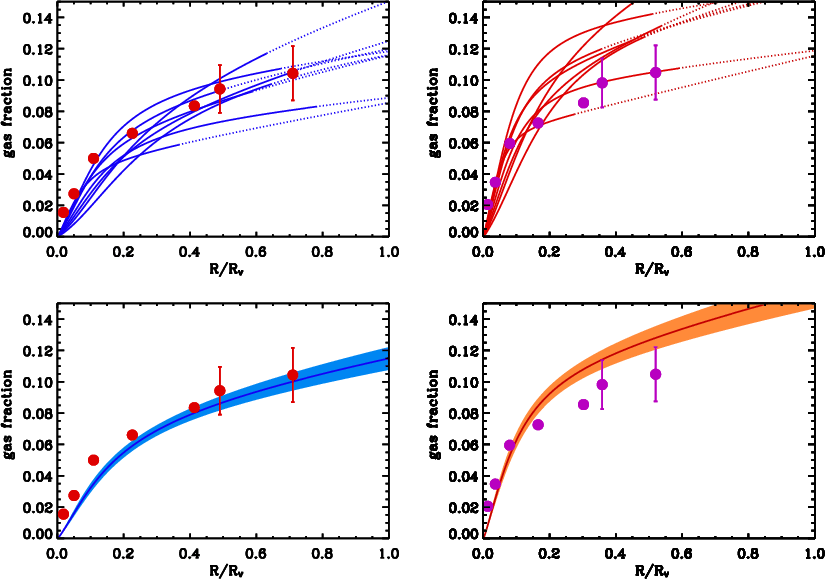

$\begin{figure} \par\includegraphics[width=6.7cm,angle=0]{1192f1a.ps}\hspace*{4mm... ...c.ps}\hspace*{4mm} \includegraphics[width=6.7cm,angle=0]{1192f1d.ps}\end{figure}$ Figure 1: Apparent $f_{{\rm gas}}$ plotted versus radius normalized to the virial radius R/R_V. The left side corresponds to $f_{{\rm gas}}$ in an Einstein-de Sitter model and the right side to the concordance model. In the upper graphs, the lines show the individual clusters $f_{{\rm gas}}$ up to the maximum radius of detection (see Lumb et al. 2004), dots correspond to extrapolated $f_{{\rm gas}}$ . The data (red and purple circles) are the $f_{{\rm gas}}$ in local sample (from RSB00 for the inner part and from VFJ99 in the outer parts) in an Einstein de Sitter cosmology and in a flat low density model. The error bars correspond to the typical dispersion in the VFJ99 sample. In the lower graphs, the average apparent $f_{{\rm gas}}$ and its uncertainty are plotted (filled area).
Open with DEXTER

In the text

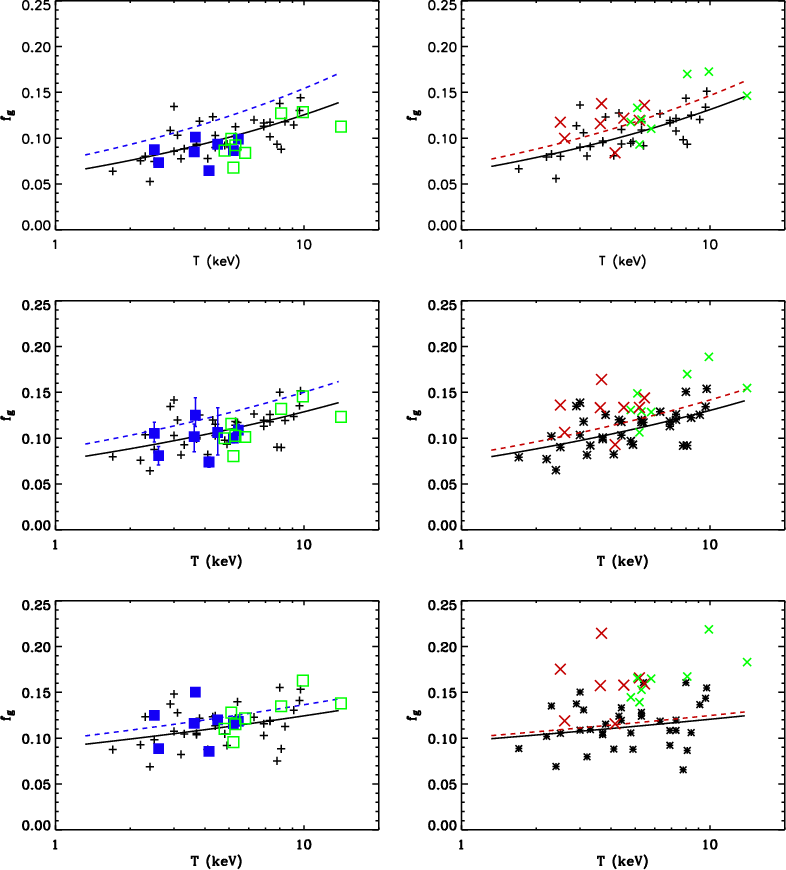

$\begin{figure} \par\includegraphics[width=6.7cm,angle=0]{1192f2a.ps}\hspace*{4mm... ...e.ps}\hspace*{4mm} \includegraphics[width=6.7cm,angle=0]{1192f2f.ps}\end{figure}$ Figure 2: $f_{{\rm gas}}$ versus temperature at three different radii R₂₀₀₀ ( top), R₁₀₀₀ ( middle) and $R_{\rm v}$ ( bottom) in the outer parts of the $\mbox{\it XMM-Newton}$ distant clusters (blue squares and red crosses) in Einstein de Sitter model (on the left) and in a concordance model (crosses on the right side) compared to the same quantity (plus symbols) evaluated at the same scaled radii from the local sample by VFJ99. Open (green) squares and small (green) crosses are the same quantities evaluated for clusters in the Vikhlinin' sample (Vikhlinin et al. 2002) within the same redshift range ( 0.4 < z < 0.62). Errors bars (coming from the uncertainty on the temperature) have been drawn in one case (R₁₀₀₀). In the concordance case, standard scaling of the mass-temperature relation leads to gas fractions represented by the (red) crosses. Dashed (colored) lines are the expected $f_{{\rm gas}}$ at the fiducial redshift of the $\mbox{\it XMM-Newton}$ clusters from scaling relations.
Open with DEXTER

In the text

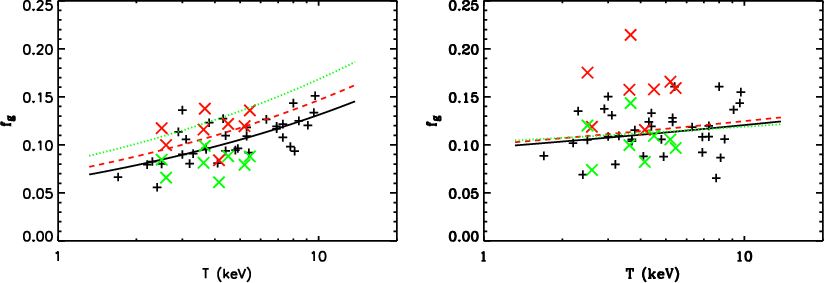

$\begin{figure} \par\includegraphics[width=6.7cm,angle=0]{1192f3a.ps}\hspace*{4mm} \includegraphics[width=6.7cm,angle=0]{1192f3b.ps}\end{figure}$ Figure 3: Same quantities as in Fig. 2. Light grey (green) crosses were obtained for a concordance model assuming the non-standard scaling $M_{\rm V}$ -T relation from Vauclair et al. (2003), Eq. (4). The dotted (green) line is the expectation from scaling in this case. Left side is at (R₂₀₀₀), right side is at the virial radius.
Open with DEXTER

In the text

$\begin{figure} \par\includegraphics[width=6.7cm,angle=0]{1192f3a.ps}\hspace*{4mm} \includegraphics[width=6.7cm,angle=0]{1192f3b.ps}\end{figure}$	Figure 3: Same quantities as in Fig. 2. Light grey (green) crosses were obtained for a concordance model assuming the non-standard scaling $M_{\rm V}$ -T relation from Vauclair et al. (2003), Eq. (4). The dotted (green) line is the expectation from scaling in this case. Left side is at (R₂₀₀₀), right side is at the virial radius.
