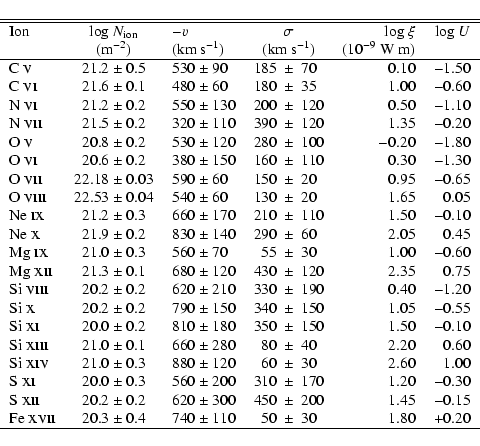

Table 4: The best fit column densities using model B for the ions for which the outflow velocity and velocity broadening are well constrained. The outflow velocity v and the rms velocity broadening $\sigma $ are listed as well as the ionization parameters $\xi $ and U for which the ion has its maximum column density. The column densities are from the fit including the broad emission lines (Sect. 3.6).
\begin{displaymath}\begin{tabular}{lclr@{$~\pm~$}lrr} \hline \hline Ion & log $N... ...740 $\pm$ 110 & 50 & 30 & 1.80 & +0.20 \\ \hline \end{tabular}\end{displaymath}


Source LaTeX | All tables | In the text
