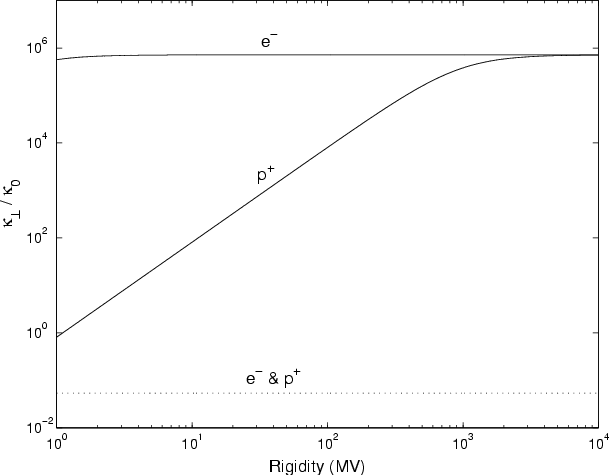

$\begin{figure} \par\includegraphics[width=8.6cm,clip]{0470fig1.eps} \end{figure}$ Figure 1: Perpendicular spatial diffusion coefficient of 2D geometry (solid line) and slab geometry (dotted line) for protons (p⁺) and electrons (e^-) for $\delta B / B_0 = 0.2$ .
Open with DEXTER

In the text

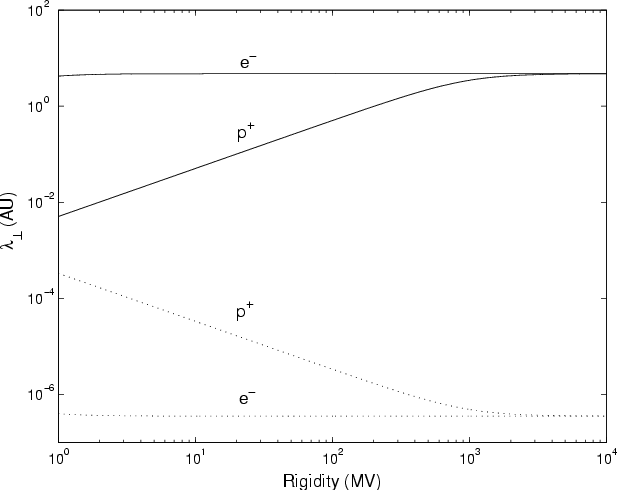

$\begin{figure} \par\includegraphics[width=8.7cm,clip]{0470fig2.eps} \end{figure}$ Figure 2: Perpendicular mean free path of 2D geometry (solid line) and slab geometry (dotted line) for protons (p⁺) and electrons (e^-) for $\delta B / B_0 = 0.2$ .
Open with DEXTER

In the text

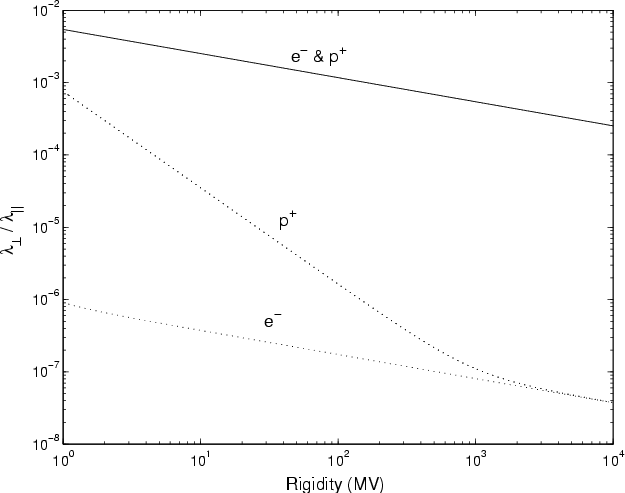

$\begin{figure} \par\includegraphics[width=8.8cm,clip]{0470fig3.eps} \end{figure}$ Figure 3: The ratio $\lambda _{\perp }/ \lambda _{\parallel }$ for pure slab (dotted line) and pure 2D geometry (solid line) for protons (p⁺) and electrons (e^-) for $\delta B / B_0 = 0.2$ .
Open with DEXTER

In the text

$\begin{figure} \par\includegraphics[width=8.8cm,clip]{0470fig4.eps} \end{figure}$ Figure 4: The ratio $\lambda _{\perp }/ \lambda _{\parallel }$ as a function of the rigidity for electrons for different values of $\chi$ and for $\delta B / B_0 = 0.2$ .
Open with DEXTER

In the text

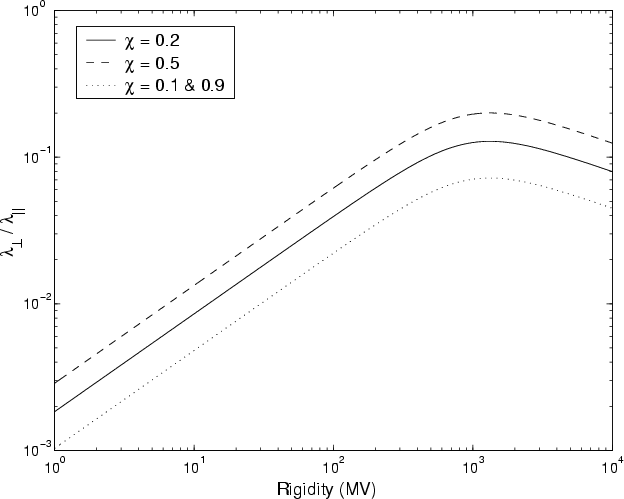

$\begin{figure} \par\includegraphics[width=8.8cm,clip]{0470fig5.eps} \end{figure}$ Figure 5: The ratio $\lambda _{\perp }/ \lambda _{\parallel }$ as a function of the rigidity for protons for different values of $\chi$ and for $\delta B / B_0 = 0.2$ .
Open with DEXTER

In the text

$\begin{figure} \par\includegraphics[width=8.6cm,clip]{0470fig1.eps} \end{figure}$	Figure 1: Perpendicular spatial diffusion coefficient of 2D geometry (solid line) and slab geometry (dotted line) for protons (p⁺) and electrons (e^-) for $\delta B / B_0 = 0.2$ .
Open with DEXTER

$\begin{figure} \par\includegraphics[width=8.7cm,clip]{0470fig2.eps} \end{figure}$	Figure 2: Perpendicular mean free path of 2D geometry (solid line) and slab geometry (dotted line) for protons (p⁺) and electrons (e^-) for $\delta B / B_0 = 0.2$ .
Open with DEXTER

$\begin{figure} \par\includegraphics[width=8.8cm,clip]{0470fig3.eps} \end{figure}$	Figure 3: The ratio $\lambda _{\perp }/ \lambda _{\parallel }$ for pure slab (dotted line) and pure 2D geometry (solid line) for protons (p⁺) and electrons (e^-) for $\delta B / B_0 = 0.2$ .
Open with DEXTER

$\begin{figure} \par\includegraphics[width=8.8cm,clip]{0470fig4.eps} \end{figure}$	Figure 4: The ratio $\lambda _{\perp }/ \lambda _{\parallel }$ as a function of the rigidity for electrons for different values of $\chi$ and for $\delta B / B_0 = 0.2$ .
Open with DEXTER

$\begin{figure} \par\includegraphics[width=8.8cm,clip]{0470fig5.eps} \end{figure}$	Figure 5: The ratio $\lambda _{\perp }/ \lambda _{\parallel }$ as a function of the rigidity for protons for different values of $\chi$ and for $\delta B / B_0 = 0.2$ .
Open with DEXTER
