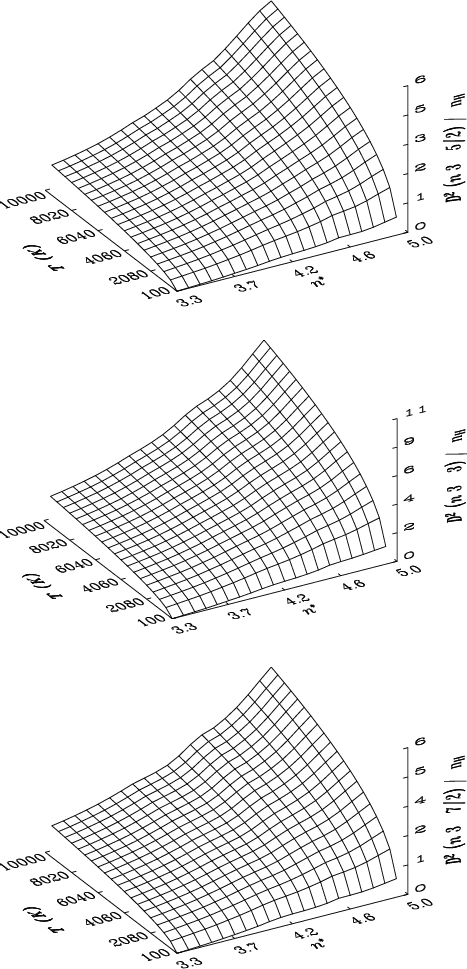

$\begin{figure} \par\includegraphics[width=7.5 cm,clip]{0144_figure1.eps}\vspace*... ...\vspace*{5mm} \includegraphics[width=7.5 cm,clip]{0144_figure3.eps} \end{figure}$ Figure 1: Depolarization rates per unit H-atom density as a function of temperature T and n^*. For l=3, each figure: $S=\frac{1}{2}$ and $J=\frac{5}{2}$ ; S=0 and J=3; $S=\frac{1}{2}$ and $J=\frac{7}{2}$ . Depolarization rates are given in 10^-14 $\textrm{rad} \; \textrm{m}^3 \; \textrm{s} ^{-1}$ .
Open with DEXTER

In the text

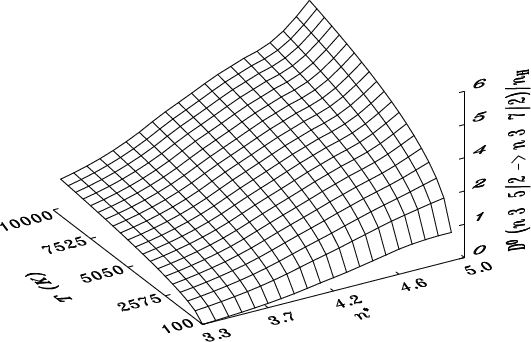

$\begin{figure} \par\includegraphics[width=7.5 cm,clip]{0144_figure4.eps} \end{figure}$ Figure 2: Population transfer rate per unit H-atom density (k=0) as a function of temperature T and n^*. l=3, $S=\frac{1}{2}$ , $J=\frac{5}{2}$ and $J'=\frac{7}{2}$ . Population transfer rate is given in 10^-14 $\textrm{rad} \; \textrm{m}^3 \; \textrm{s} ^{-1}$ .
Open with DEXTER

In the text

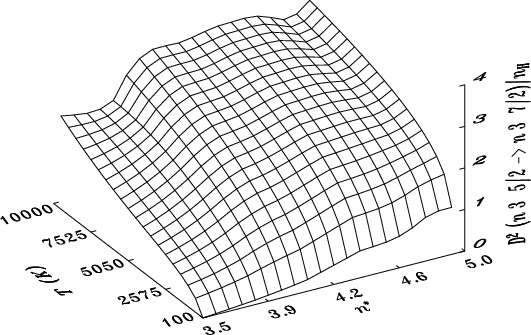

$\begin{figure} \par\includegraphics[width=7.5 cm,clip]{0144_figure5.eps} \end{figure}$ Figure 3: Linear polarization transfer rate per unit H-atom density (k=2) as a function of temperature T and n^*. l=3, $S=\frac{1}{2}$ , $J=\frac{5}{2}$ and $J'=\frac{7}{2}$ . Linear polarization transfer rate is given in 10^-15 $\textrm{rad} \; \textrm{m}^3 \; \textrm{s} ^{-1}$ .
Open with DEXTER

In the text

$\begin{figure} \par\includegraphics[width=7.5 cm,clip]{0144_figure1.eps}\vspace... ...\vspace{5mm} \includegraphics[width=7.5 cm,clip]{0144_figure3.eps} \end{figure}$	Figure 1: Depolarization rates per unit H-atom density as a function of temperature T and n^*. For l=3, each figure: $S=\frac{1}{2}$ and $J=\frac{5}{2}$ ; S=0 and J=3; $S=\frac{1}{2}$ and $J=\frac{7}{2}$ . Depolarization rates are given in 10^-14 $\textrm{rad} \; \textrm{m}^3 \; \textrm{s} ^{-1}$ .
Open with DEXTER

$\begin{figure} \par\includegraphics[width=7.5 cm,clip]{0144_figure4.eps} \end{figure}$	Figure 2: Population transfer rate per unit H-atom density (k=0) as a function of temperature T and n^*. l=3, $S=\frac{1}{2}$ , $J=\frac{5}{2}$ and $J'=\frac{7}{2}$ . Population transfer rate is given in 10^-14 $\textrm{rad} \; \textrm{m}^3 \; \textrm{s} ^{-1}$ .
Open with DEXTER

$\begin{figure} \par\includegraphics[width=7.5 cm,clip]{0144_figure5.eps} \end{figure}$	Figure 3: Linear polarization transfer rate per unit H-atom density (k=2) as a function of temperature T and n^*. l=3, $S=\frac{1}{2}$ , $J=\frac{5}{2}$ and $J'=\frac{7}{2}$ . Linear polarization transfer rate is given in 10^-15 $\textrm{rad} \; \textrm{m}^3 \; \textrm{s} ^{-1}$ .
Open with DEXTER
