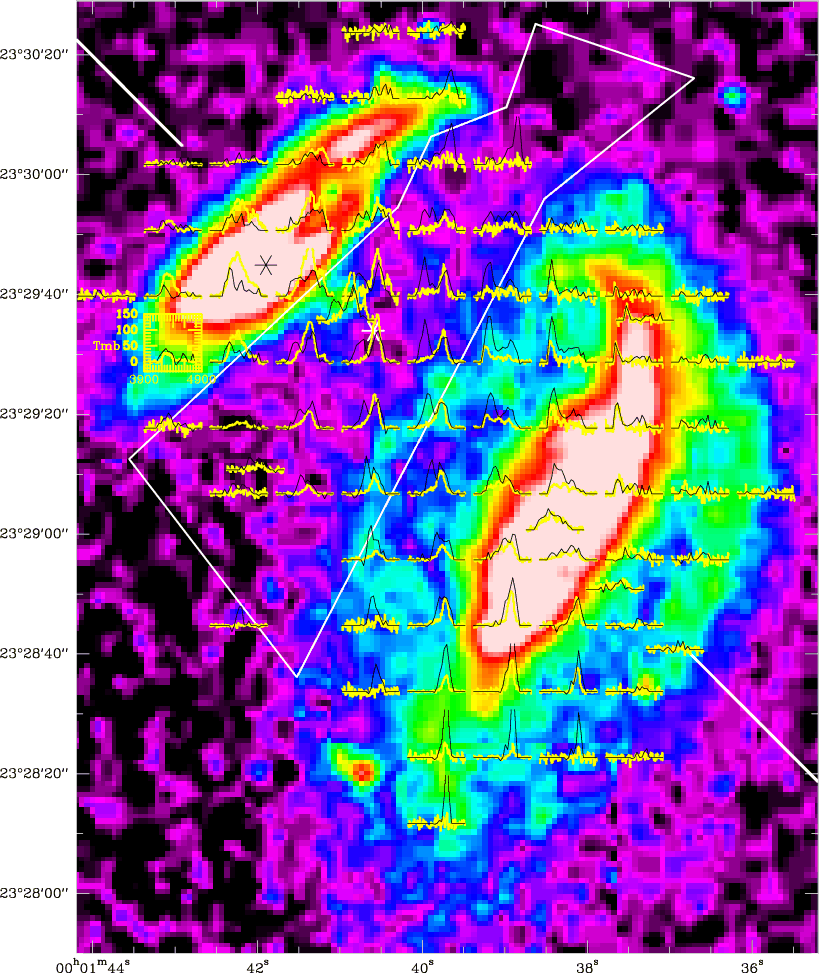

$\begin{figure} \par\includegraphics[angle=0,width=16cm,clip]{taffy_emm3.ps} \end{figure}$ Figure 1: CO(1-0) spectra (black line and black scale, intensity in milliKelvins) overlaid with H I spectra (yellow line) on a Digitized Sky survey image of the UGC 12914/5 system. The center of UGC 12915 is at $00^{\rm h}01^{\rm m}41.9^{\rm s}$ , $23^\circ 29'44.9''$ and the H II region is at $0^{\rm h}1^{\rm m}40.6^{\rm s}$ , $23^\circ 29'33.9''$ and these are the positions shown in Fig. 2 and marked with stars here. The H I emission extends far south in UGC 12914 (lower right). Lines mark the ends of the slit which roughly connects the nuclei. The bridge region is delimited by the white polygon.
Open with DEXTER

In the text

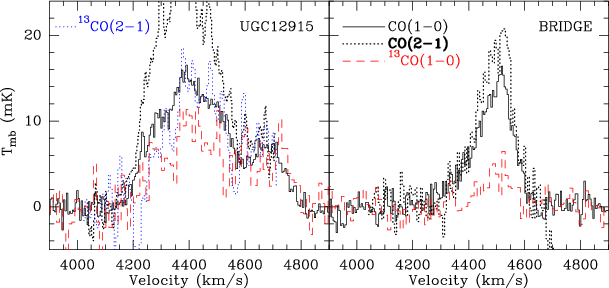

$\begin{figure} \par\includegraphics[angle=270,width=8.6cm,clip]{fig13b.ps} \end{figure}$ Figure 2: ¹²CO and ¹³CO spectra for UGC 12915 (left) and the giant H II region (right) in the bridge. The ¹²CO line intensities are divided by 10. The angular resolutions are respectively 11'' and 22'' for the (2-1) and (1-0) transitions.
Open with DEXTER

In the text

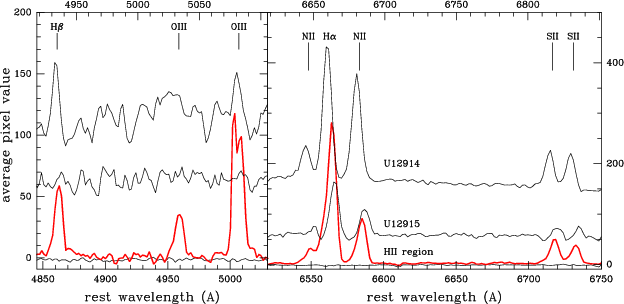

$\begin{figure} \par\includegraphics[angle=270,width=8.8cm,clip]{taffy_opt3.ps} \end{figure}$ Figure 3: Optical spectra of the Taffy system around the H $\beta$ and H $\alpha$ lines. Top line is nucleus of UGC 12914 (intensities divided by 2), followed by UGC 12915 and the giant H II region (thick red line). No emission is detected (bottom line) between the H II region and the outer ring of UGC 12914. The O I 6300 Å line is also detected in UGC 12914 and the H II region and is about 0.3-0.5 as strong as the N II 6548 Å line.
Open with DEXTER

In the text

$\begin{figure} \par\includegraphics[angle=270,width=8.6cm,clip]{fig13b.ps} \end{figure}$	Figure 2: ¹²CO and ¹³CO spectra for UGC 12915 (left) and the giant H II region (right) in the bridge. The ¹²CO line intensities are divided by 10. The angular resolutions are respectively 11'' and 22'' for the (2-1) and (1-0) transitions.
