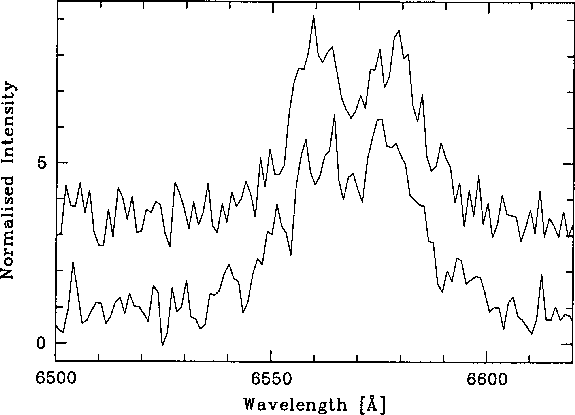

$\begin{figure} \par {\includegraphics[width=8.1cm,clip]{aah3595f1.eps} }\end{figure}$ Figure 1: Example of an original continuum-normalised spectrum of the WX Cet data set (bottom) and its corresponding model spectrum (top). The latter has been displaced vertically by 2.5 intensity units.
Open with DEXTER

In the text

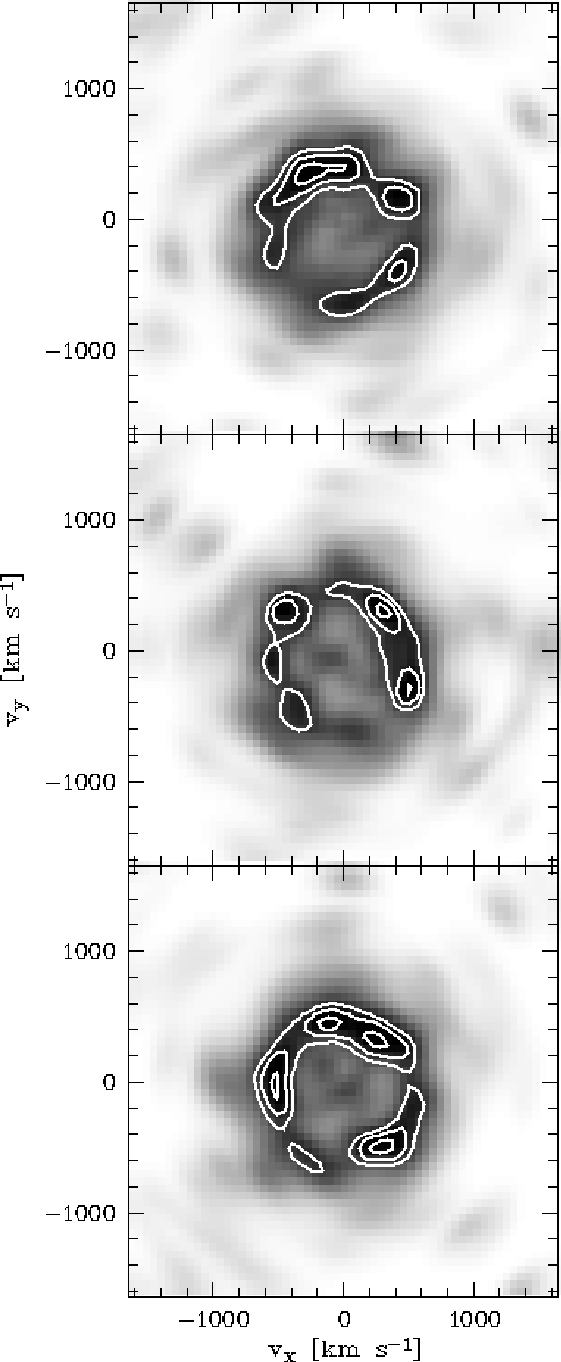

$\begin{figure} \par {\includegraphics[width=7.9cm,clip]{H3595F02.eps} }\end{figure}$ Figure 2: Doppler maps for the model spectra with respect to the WX Cet data sets 1-3 (top to bottom).
Open with DEXTER

In the text

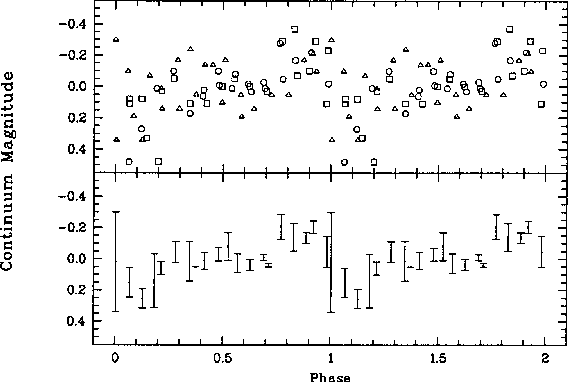

$\begin{figure} \par {\includegraphics[width=8cm,clip]{aah3595f3.eps} }\end{figure}$ Figure 3: The H $\alpha$ continuum magnitude of the VW Hyi data as a function of phase. The upper plot has been composed out of data sets 1 ( $\circ$ ), 2 ( $\bigtriangleup$ ), and 3 ( $\Box$ ), with the respective average values subtracted. The lower plot gives those three data sets averaged into bins of 0.05 orbital phases, with the error bars referring to $\pm 1 \sigma$ deviation of the averaging process. The data are repeated to show two orbits.
Open with DEXTER

In the text

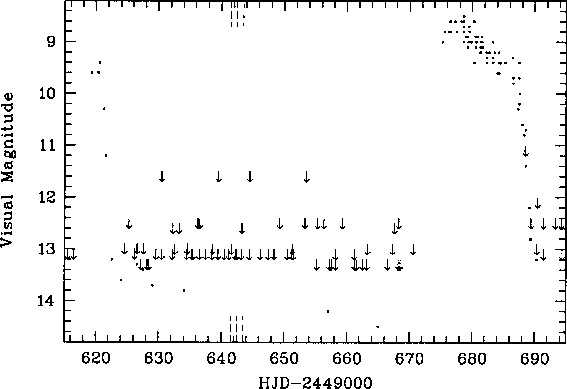

$\begin{figure} \par {\includegraphics[width=8cm,clip]{aah3595f4.eps} }\end{figure}$ Figure 4: Long-term light curve for VW Hyi based on AAVSO observations (Mattei 1999, private communication). Upper brightness limits are marked by arrows. The dates of the spectroscopic measurements are indicated by the dashed lines.
Open with DEXTER

In the text

$\begin{figure}\par\setcounter{figure}{2} \resizebox{5.8cm}{!}{\includegraphics[clip]{H3595F07.eps}}\par \end{figure}$ Figure A.3: Top: line profiles of selected 10% phase bins for WX Cet. Data sets 1-3 are plotted from left to right. The time sequence within one data set is symbolised by the sequence solid - dashed. Bottom: diagnostic diagram for the combined data set of WX Cet, already corrected for the derived zero phase. The dotted lines mark the chosen separation and the corresponding parameters.

In the text

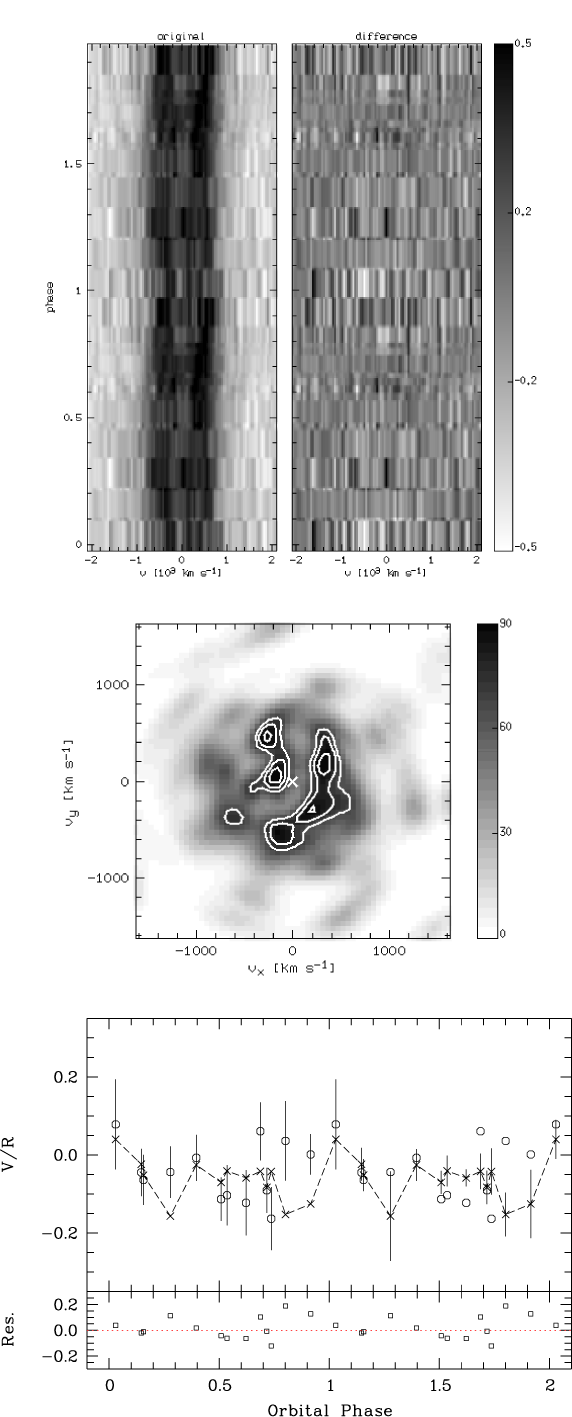

$\begin{figure}\par\resizebox{8.5cm}{!}{\includegraphics[clip]{H3595F08.eps}} \end{figure}$ Figure A.4: Doppler Tomography for WX Cet, data set 1. Top: original (left) and difference (original-reconstructed; right) spectrum. The intensity bar on the right refers to the latter plot. Middle: doppler map. Contour levels are at 86, 77, and 68 per cent of the maximum intensity. Bottom: V/R plot of the original ( $\circ$ ) and the reconstructed ( $\times$ and dashed line) data, and the residuals (bottom of the plot). In phases 0 to 1, error bars are given for the original data, phases 1 to 2 show those for the reconstructed data.

In the text

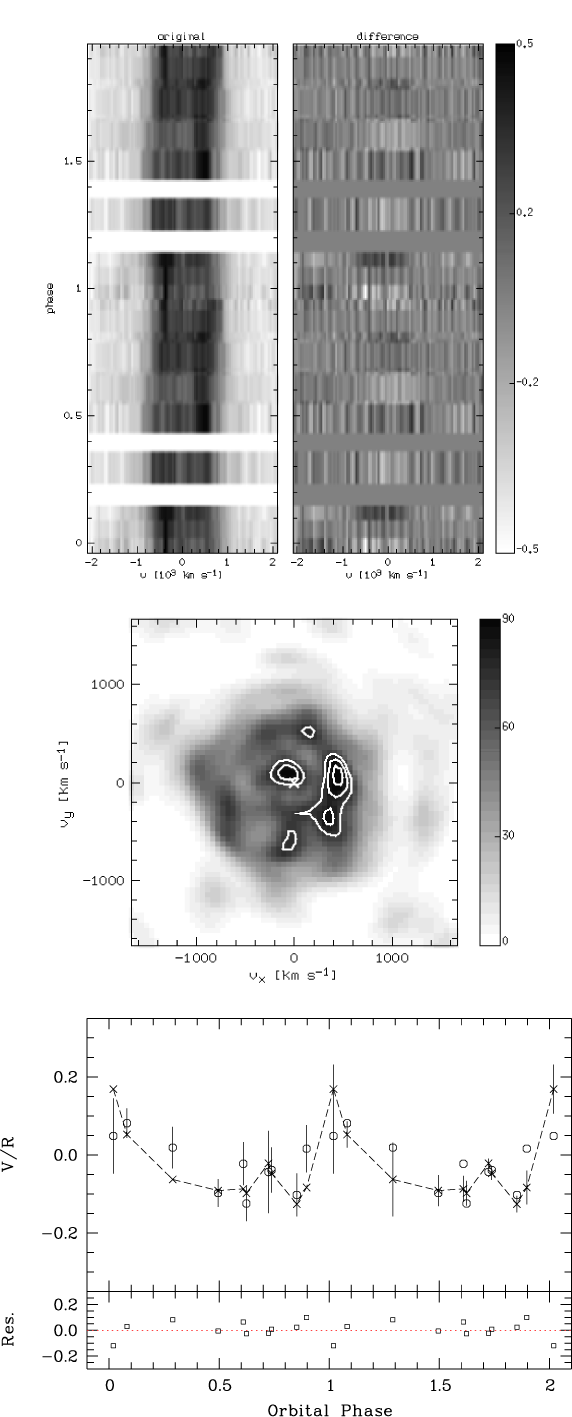

$\begin{figure} \par\resizebox{8.2cm}{!}{\includegraphics[clip]{H3595F09.eps}} \end{figure}$ Figure A.5: Doppler Tomography for WX Cet, data set 2. Top: original (left) and difference (original-reconstructed; right) spectrum. The intensity bar on the right refers to the latter plot. Middle: doppler map. Contour levels are at 90, 81, and 72 per cent of the maximum intensity. Bottom: V/R plot of the original ( $\circ$ ) and the reconstructed ( $\times$ and dashed line) data, and the residuals (bottom of the plot). In phases 0 to 1, error bars are given for the original data, phases 1 to 2 show those for the reconstructed data.

In the text

$\begin{figure} \par\resizebox{8.2cm}{!}{\includegraphics[clip]{H3595F10.eps}} \end{figure}$ Figure A.6: Doppler Tomography for WX Cet, data set 3. Top: original (left) and difference (original-reconstructed; right) spectrum. The intensity bar on the right refers to the latter plot. Middle: doppler map. Contour levels are at 93, 84, and 75 per cent of the maximum intensity. Bottom: V/R plot of the original ( $\circ$ ) and the reconstructed ( $\times$ and dashed line) data, and the residuals (bottom of the plot). In phases 0 to 1, error bars are given for the original data, phases 1 to 2 show those for the reconstructed data.

In the text

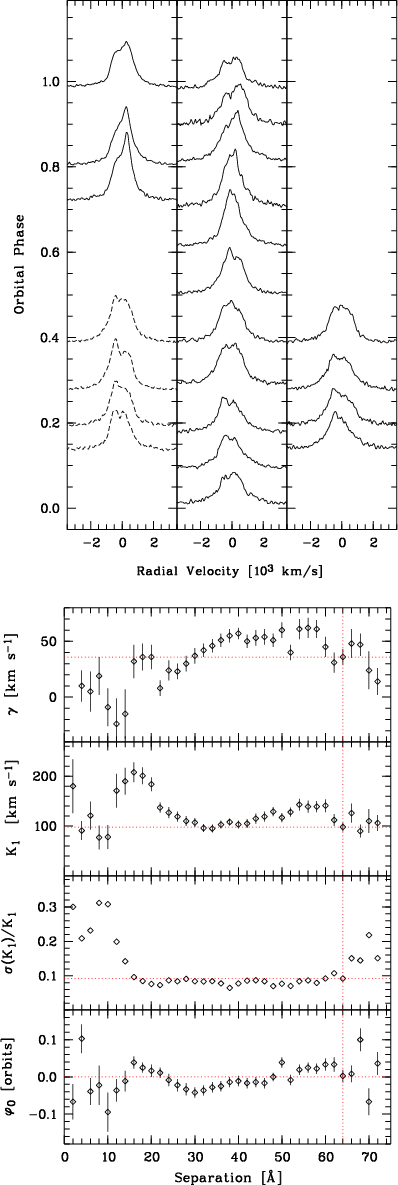

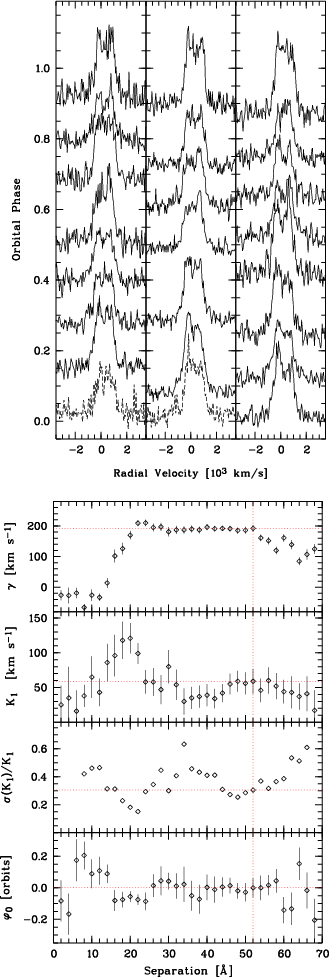

$\begin{figure} \par\resizebox{6.7cm}{!}{\includegraphics[clip]{H3595F05.eps}} \end{figure}$ Figure A.1: Top: line profiles of selected 10% phase bins for AK Cnc. Data sets 1-3 are plotted from left to right. The time sequence within one data set is symbolised by the sequence solid - dashed. Bottom: diagnostic diagram for AK Cnc, already corrected for the derived zero phase. The dotted lines mark the chosen separation and the corresponding parameters.

In the text

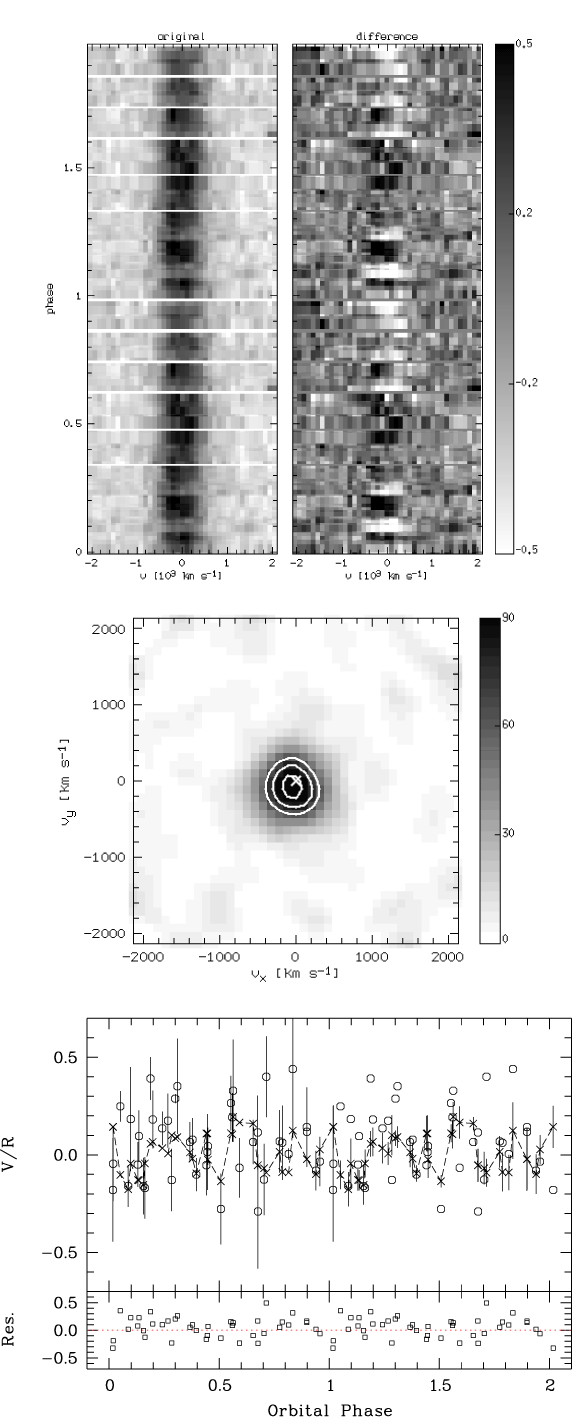

$\begin{figure} \par\resizebox{8.2cm}{!}{\includegraphics[clip]{H3595F06.eps}} \end{figure}$ Figure A.2: Doppler Tomography of AK Cnc. Top: Original (left) and difference (original-reconstructed; right) spectrum. The intensity bar on the right refers to the latter plot. Middle: doppler map. Contour levels are at 90, 75, and 60 per cent of the maximum intensity. Bottom: V/R plot of the original ( $\circ$ ) and the reconstructed ( $\times$ and dashed line) data, and the residuals (bottom of the plot). In phases 0 to 1, error bars are given for the original data, phases 1 to 2 show those for the reconstructed data.

In the text

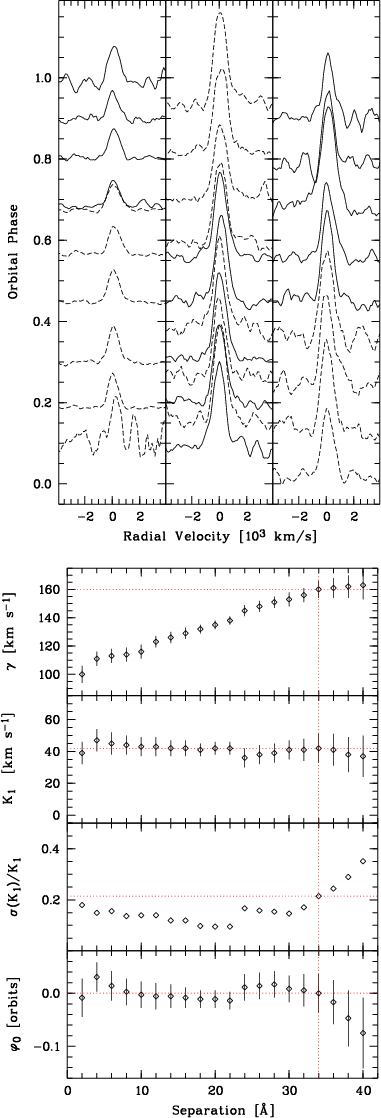

$\begin{figure} \par\resizebox{7.0cm}{!}{\includegraphics[clip]{H3595F11.eps}} \end{figure}$ Figure A.7: Top: line profiles of selected 10% phase bins for AQ Eri. Data sets 1a and 1c are plotted on the left and on the right, respectively. The time sequence within one data set is symbolised by the sequence solid - dashed. Bottom: diagnostic diagram for the combined data set of AQ Eri, already corrected for the derived zero phase. The dotted lines mark the chosen separation and the corresponding parameters.

In the text

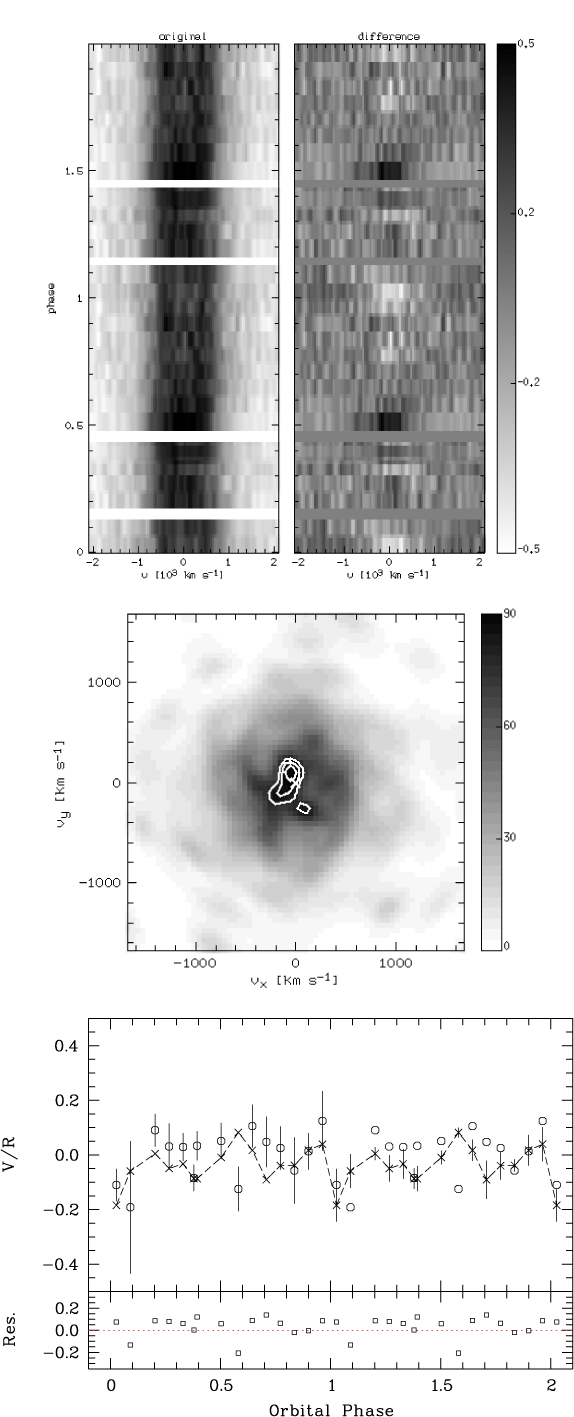

$\begin{figure} \par\resizebox{8.2cm}{!}{\includegraphics[clip]{H3595F12.eps}} \end{figure}$ Figure A.8: Doppler Tomography for AQ Eri, data set 1a. Top: original (left) and difference (original-reconstructed; right) spectrum. The intensity bar on the right refers to the latter plot. Middle: doppler map. Contour levels are at 90, 84, and 78 per cent of the maximum intensity. Bottom: V/R plot of the original ( $\circ$ ) and the reconstructed ( $\times$ and dashed line) data, and the residuals (bottom of the plot). In phases 0 to 1, error bars are given for the original data, phases 1 to 2 show those for the reconstructed data.

In the text

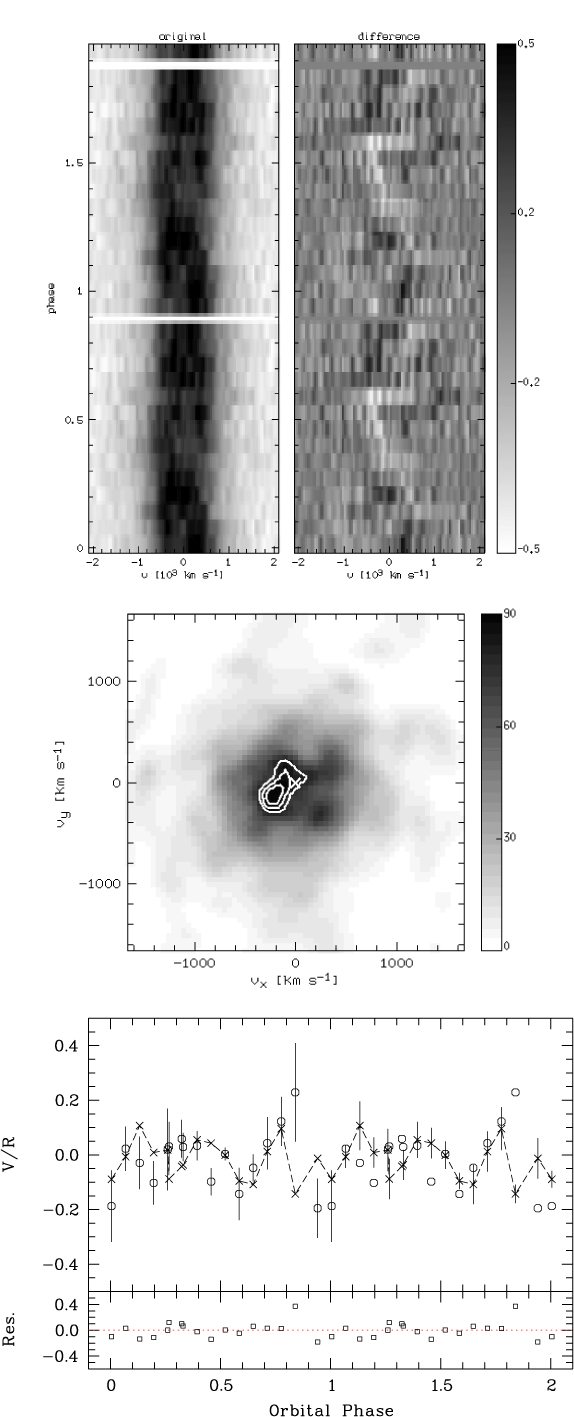

$\begin{figure} \par\resizebox{8.2cm}{!}{\includegraphics[clip]{H3595F13.eps}} \end{figure}$ Figure A.9: Doppler Tomography for AQ Eri, data set 1b. Top: original (left) and difference (original-reconstructed; right) spectrum. The intensity bar on the right refers to the latter plot. Middle: doppler map. Contour levels are at 90, 84, and 78 per cent of the maximum intensity. Bottom: V/R plot of the original ( $\circ$ ) and the reconstructed ( $\times$ and dashed line) data, and the residuals (bottom of the plot). In phases 0 to 1, error bars are given for the original data, phases 1 to 2 show those for the reconstructed data.

In the text

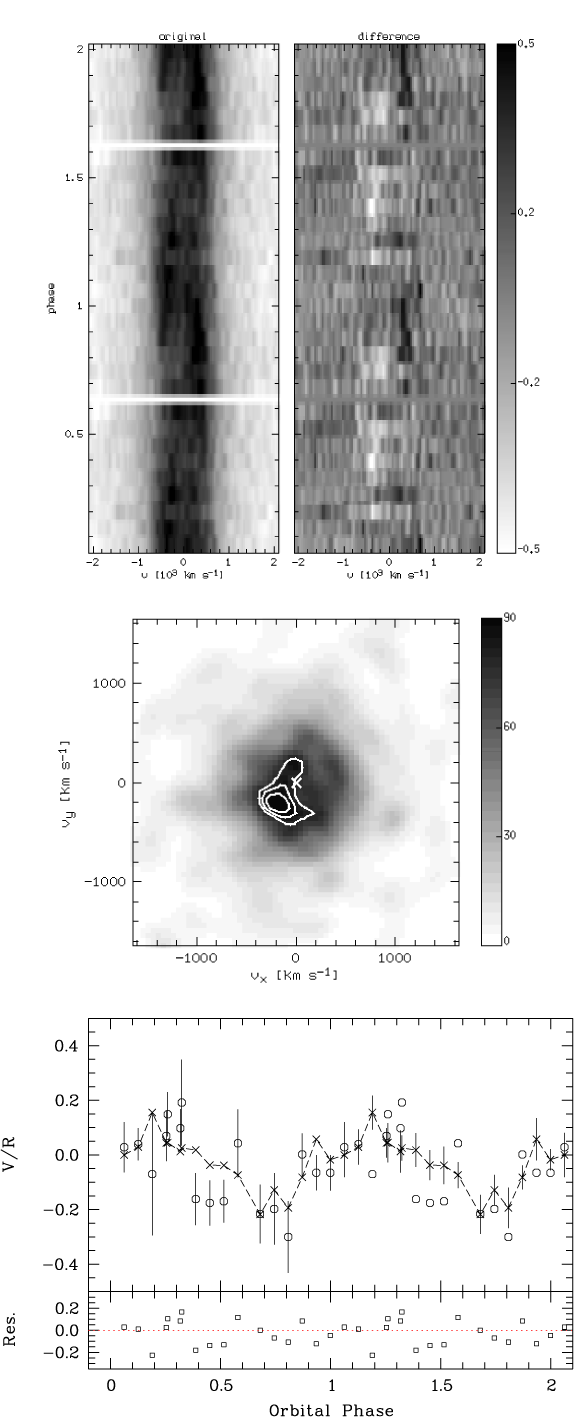

$\begin{figure} \par\resizebox{8.2cm}{!}{\includegraphics[clip]{H3595F14.eps}} \end{figure}$ Figure A.10: Doppler Tomography for AQ Eri, data set 1c. Top: original (left) and difference (original-reconstructed; right) spectrum. The intensity bar on the right refers to the latter plot. Middle: doppler map. Contour levels are at 90, 84, and 78 per cent of the maximum intensity. Bottom: V/R plot of the original ( $\circ$ ) and the reconstructed ( $\times$ and dashed line) data, and the residuals (bottom of the plot). In phases 0 to 1, error bars are given for the original data, phases 1 to 2 show those for the reconstructed data.

In the text

$\begin{figure} \par\resizebox{7.0cm}{!}{\includegraphics[clip]{H3595F15.eps}} \end{figure}$ Figure A.11: Top: line profiles of selected 10% phase bins for VW Hyi. Data sets 1 - 3 are plotted from left to right. Bottom: diagnostic diagram for the combined data set of VW Hyi, already corrected for the derived zero phase. The dotted lines mark the chosen separation and the corresponding parameters.

In the text

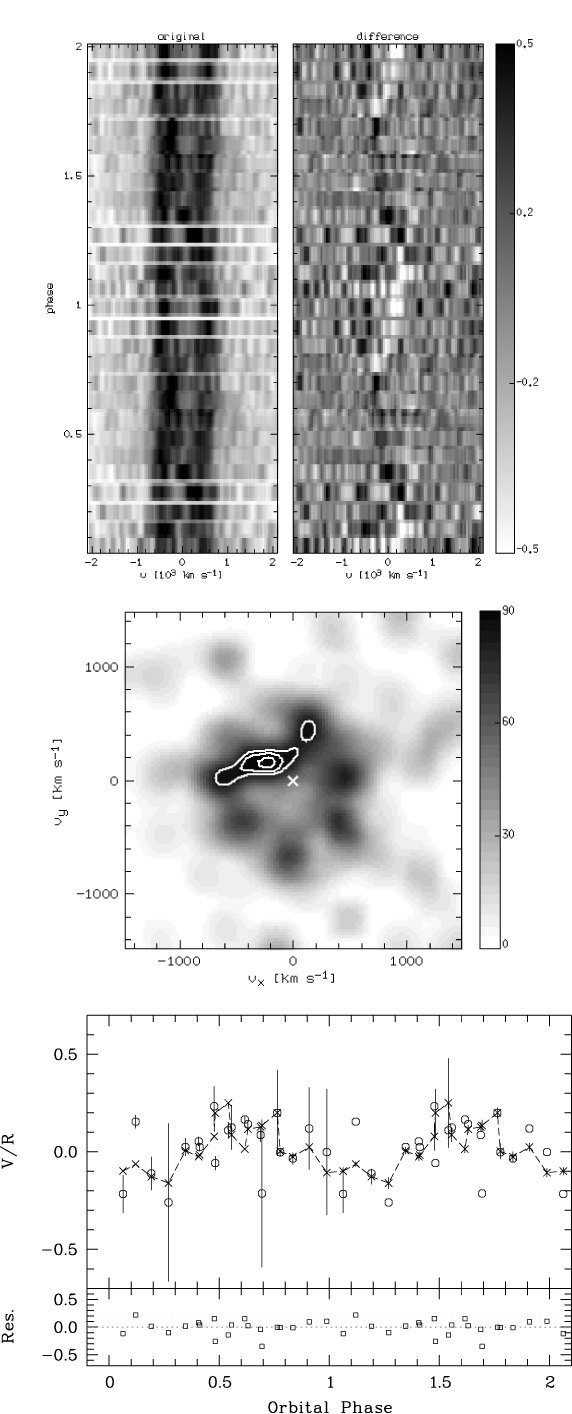

$\begin{figure} \par\resizebox{8.2cm}{!}{\includegraphics[clip]{H3595F16.eps}} \end{figure}$ Figure A.12: Doppler Tomography for VW Hyi, data set 1. Top: original (left) and difference (original-reconstructed; right) spectrum. The intensity bar on the right refers to the latter plot. Middle: doppler map. Contour levels are at 96, 89, and 82 per cent of the maximum intensity. Bottom: V/R plot of the original ( $\circ$ ) and the reconstructed ( $\times$ and dashed line) data, and the residuals (bottom of the plot). In phases 0 to 1, error bars are given for the original data, phases 1 to 2 show those for the reconstructed data.

In the text

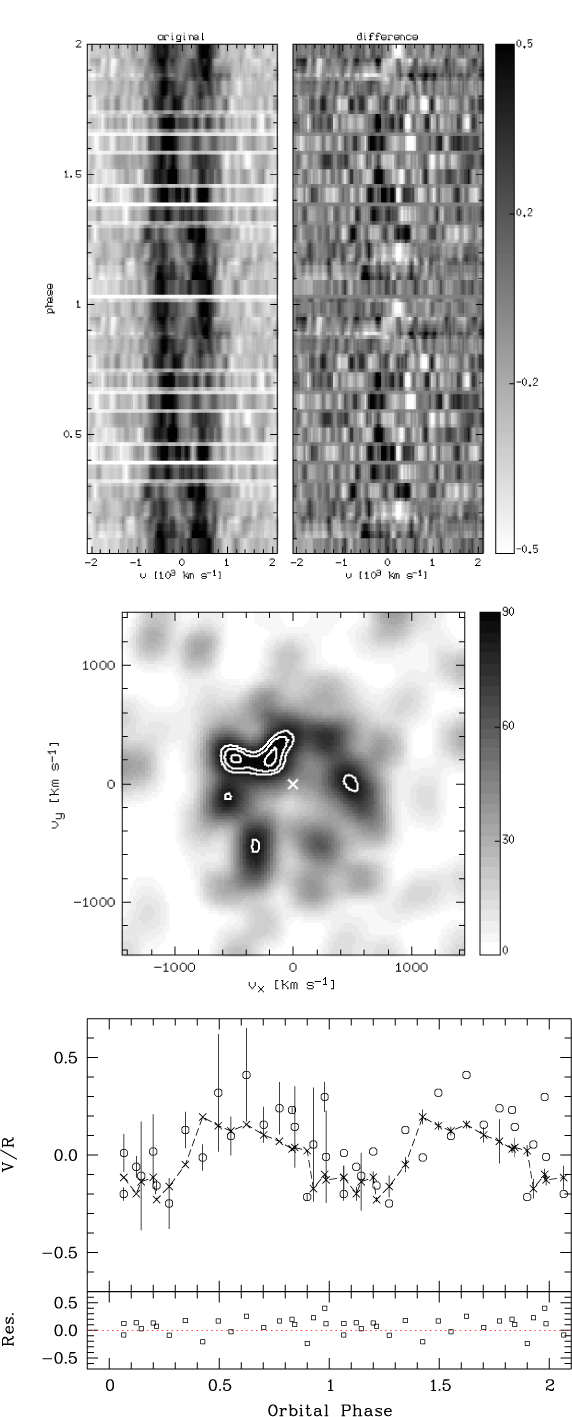

$\begin{figure} \par\resizebox{8.2cm}{!}{\includegraphics[clip]{H3595F17.eps}} \end{figure}$ Figure A.13: Doppler Tomography for VW Hyi, data set 2. Top: original (left) and difference (original-reconstructed; right) spectrum. The intensity bar on the right refers to the latter plot. Middle: doppler map. Contour levels are at 97, 90, and 83 per cent of the maximum intensity. Bottom: V/R plot of the original ( $\circ$ ) and the reconstructed ( $\times$ and dashed line) data, and the residuals (bottom of the plot). In phases 0 to 1, error bars are given for the original data, phases 1 to 2 show those for the reconstructed data.

In the text

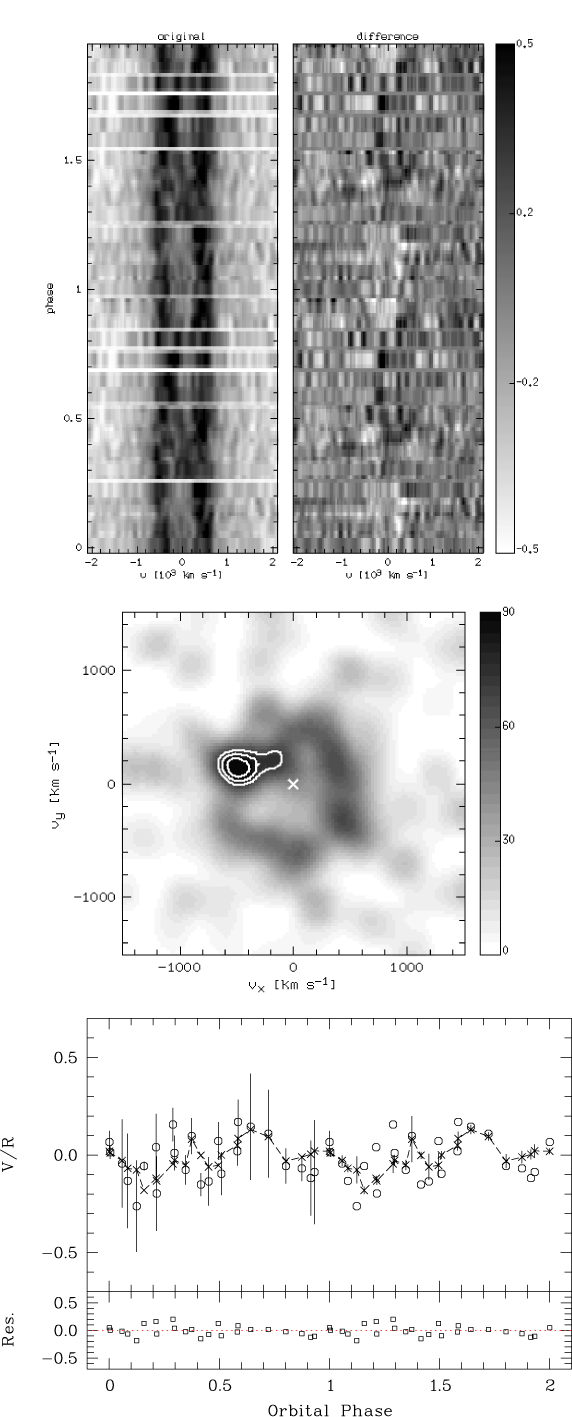

$\begin{figure} \par\resizebox{8.2cm}{!}{\includegraphics[clip]{H3595F18.eps}} \end{figure}$ Figure A.14: Doppler Tomography for VW Hyi, data set 3. Top: original (left) and difference (original-reconstructed; right) spectrum. The intensity bar on the right refers to the latter plot. Middle: doppler map. Contour levels are at 90, 80, and 70 per cent of the maximum intensity. Bottom: V/R plot of the original ( $\circ$ ) and the reconstructed ( $\times$ and dashed line) data, and the residuals (bottom of the plot). In phases 0 to 1, error bars are given for the original data, phases 1 to 2 show those for the reconstructed data.

In the text

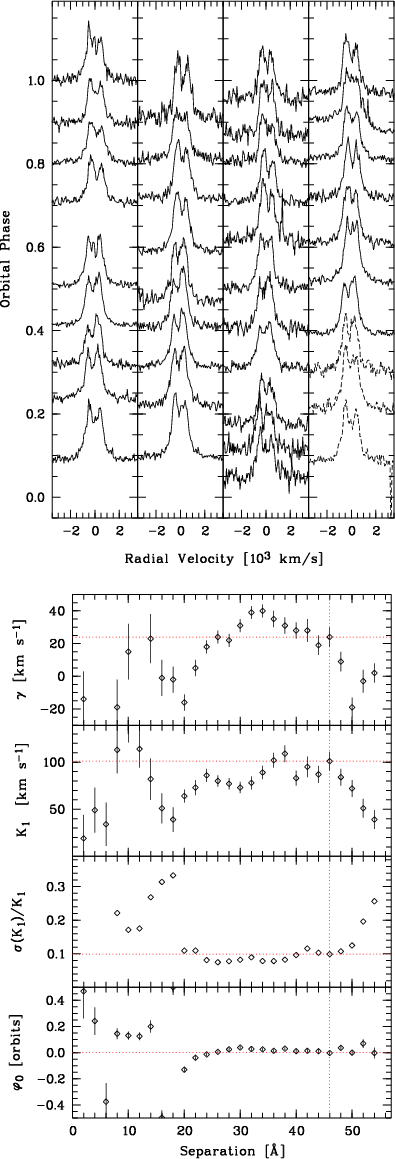

$\begin{figure} \par\resizebox{7.0cm}{!}{\includegraphics[clip]{H3595F19.eps}} \end{figure}$ Figure A.15: Top: line profiles of selected 10% phase bins for RZ Leo. Data sets 1a, 1b, 2a, 2b are plotted from left to right. The time sequence is symbolised by the line styles solid - dashed. Bottom: diagnostic diagram of RZ Leo, data set 2, already corrected for the derived zero phase. The dotted lines mark the chosen separation and the corresponding parameters.

In the text

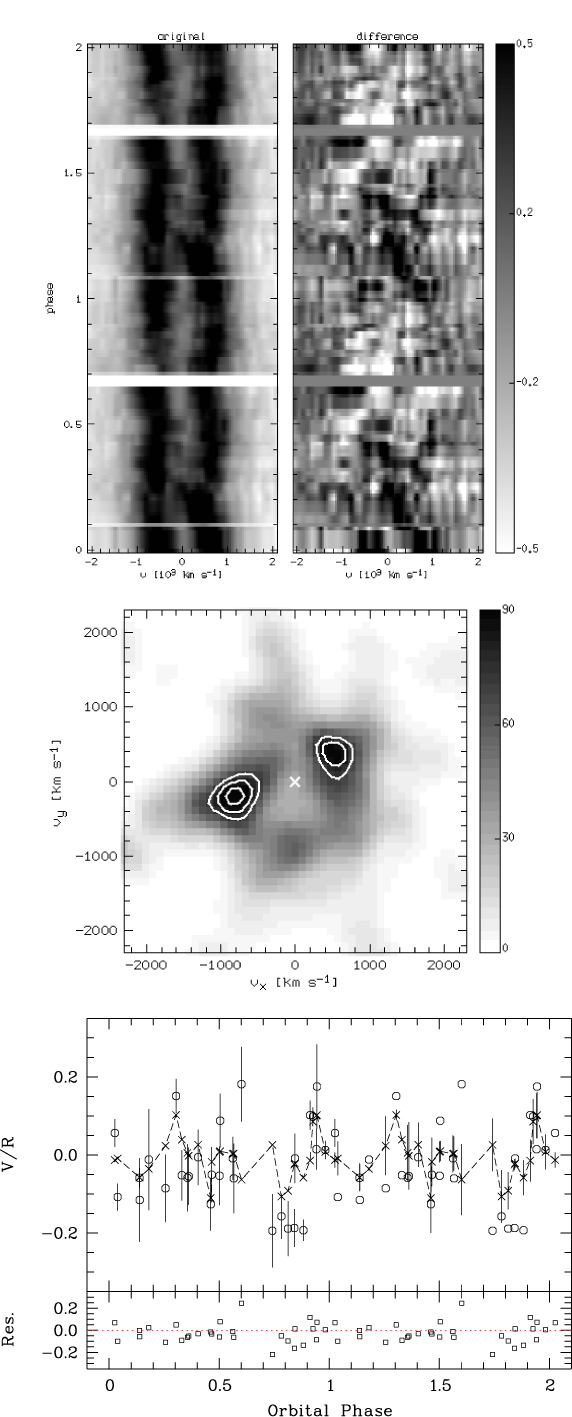

$\begin{figure} \par\resizebox{8.2cm}{!}{\includegraphics[clip]{H3595F20.eps}} \end{figure}$ Figure 16: Doppler Tomography for RZ Leo, data set 1. Top: original (left) and difference (original-reconstructed; right) spectrum. The intensity bar on the right refers to the latter plot. Middle: doppler map. Contour levels are at 90, 80, and 70 per cent of the maximum intensity. Bottom: V/R plot of the original ( $\circ$ ) and the reconstructed ( $\times$ and dashed line) data, and the residuals (bottom of the plot). In phases 0 to 1, error bars are given for the original data, phases 1 to 2 show those for the reconstructed data.
Open with DEXTER

In the text

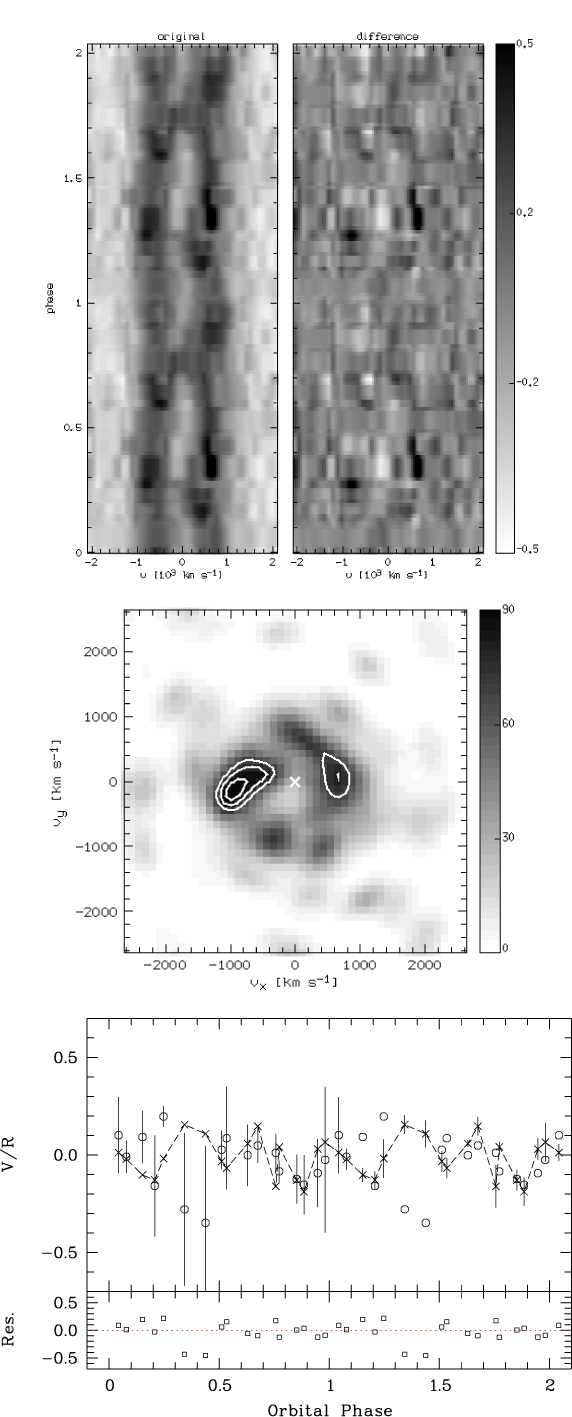

$\begin{figure} \par\resizebox{8.2cm}{!}{\includegraphics[clip]{H3595F21.eps}} \end{figure}$ Figure A.17: Doppler Tomography for RZ Leo, data set 2. Top: original (left) and difference (original-reconstructed; right) spectrum. The intensity bar on the right refers to the latter plot. Middle: doppler map. Contour levels are at 86, 76, and 66 per cent of the maximum intensity. Bottom: V/R plot of the original ( $\circ$ ) and the reconstructed ( $\times$ and dashed line) data, and the residuals (bottom of the plot). In phases 0 to 1, error bars are given for the original data, phases 1 to 2 show those for the reconstructed data.

In the text

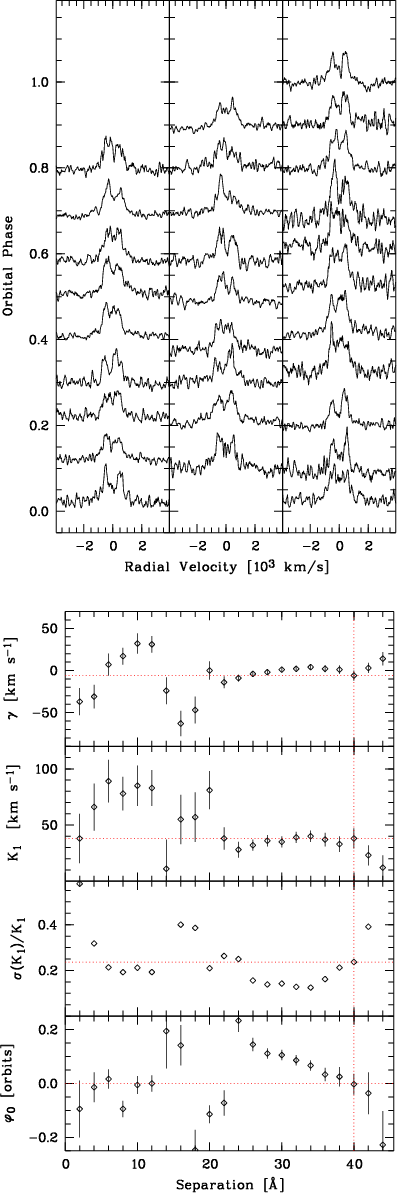

$\begin{figure} \par\resizebox{7.0cm}{!}{\includegraphics[clip]{H3595F22.eps}} \end{figure}$ Figure A.18: Top: line profiles of selected 10% phase bins for TU Men. Data sets 1 to 4 are plotted from left to right. The time sequence is symbolised by the line styles solid - dashed. Bottom: diagnostic diagram for the combined data set of TU Men, already corrected for the derived zero phase. The dotted lines mark the chosen separation and the corresponding parameters.

In the text

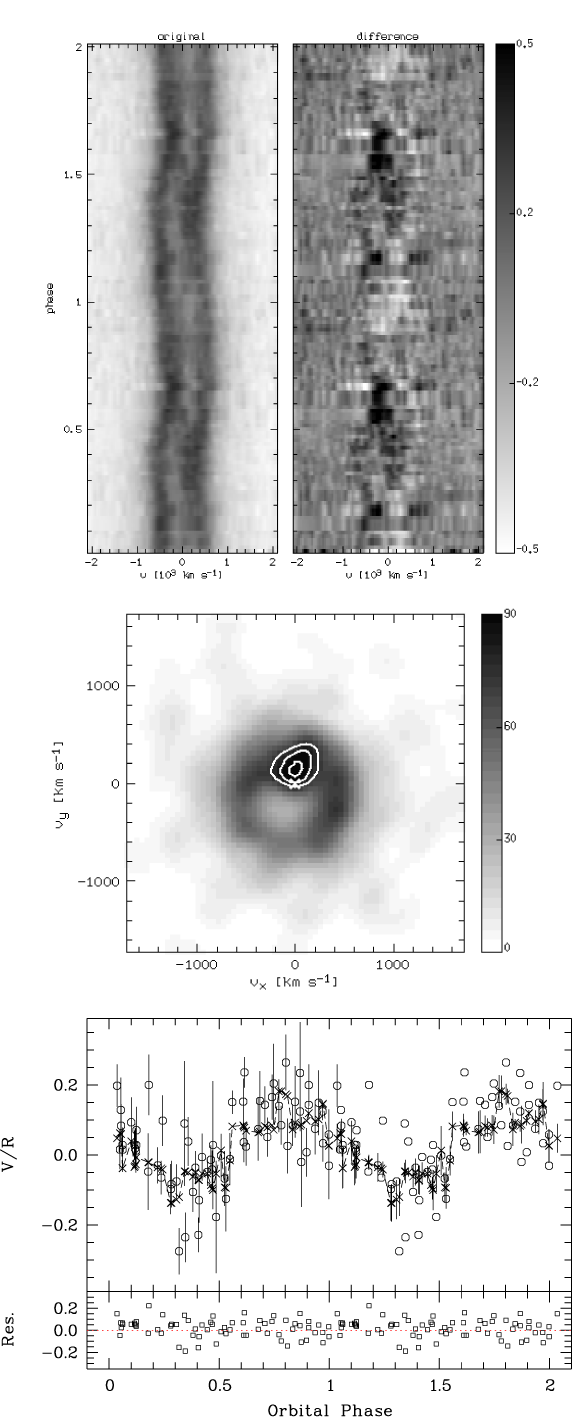

$\begin{figure} \par\resizebox{8.2cm}{!}{\includegraphics[clip]{H3595F23.eps}} \end{figure}$ Figure A.19: Doppler Tomography for TU Men. Top: original (left) and difference (original-reconstructed; right) spectrum. The intensity bar on the right refers to the latter plot. Middle: doppler map. Contour levels are at 94, 84, and 74 per cent of the maximum intensity. Bottom: V/R plot of the original ( $\circ$ ) and the reconstructed ( $\times$ and dashed line) data, and the residuals (bottom of the plot). In phases 0 to 1, error bars are given for the original data, phases 1 to 2 show those for the reconstructed data.

In the text

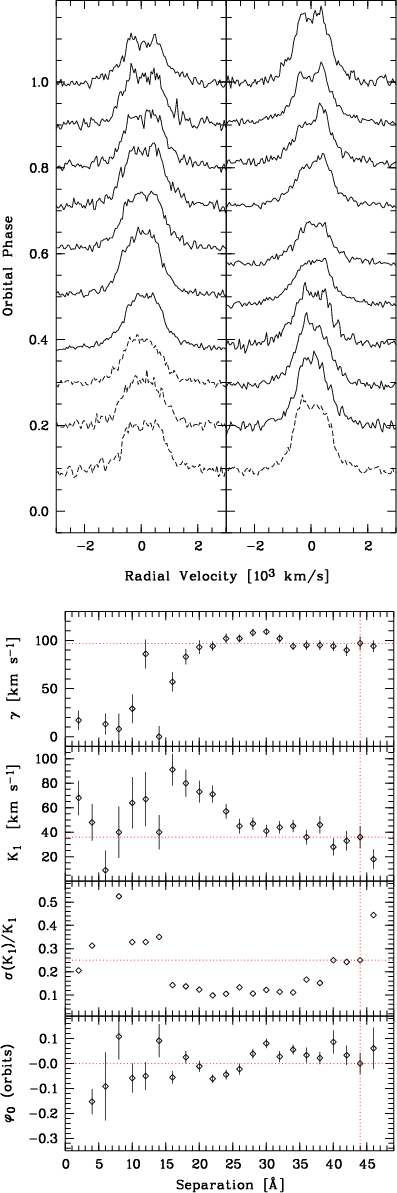

$\begin{figure} \resizebox{7.0cm}{!}{\includegraphics[clip]{H3595F24.eps}} \end{figure}$ Figure A.20: Top: line profiles of selected 10% phase bins for HS Vir. The time sequence in the left plot is symbolised by the sequence solid - dashed. Bottom: diagnostic for HS Vir, already corrected for the derived zero phase. The dotted lines mark the chosen separation and the corresponding parameters.

In the text

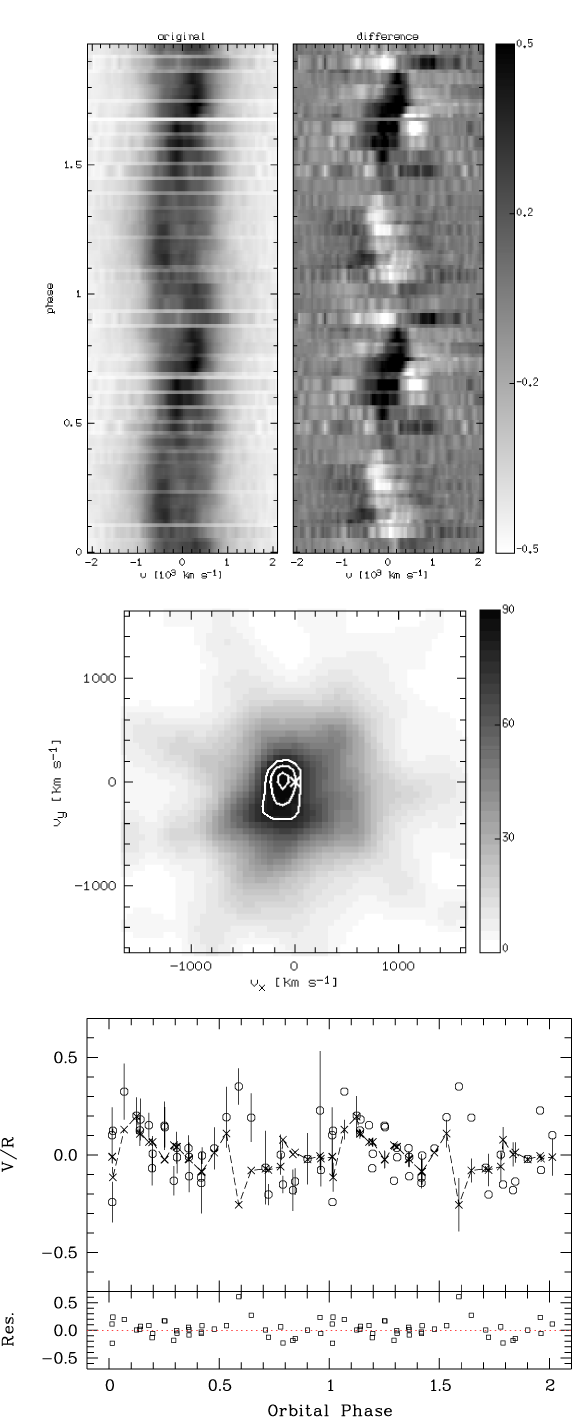

$\begin{figure} \par\resizebox{8.2cm}{!}{\includegraphics[clip]{H3595F25.eps}} \end{figure}$ Figure A.21: Doppler Tomography for HS Vir. Top: original (left) and difference (original-reconstructed; right) spectrum. The intensity bar on the right refers to the latter plot. Middle: doppler map. Contour levels are at 94, 86, and 78 per cent of the maximum intensity. Bottom: V/R plot of the original ( $\circ$ ) and the reconstructed ( $\times$ and dashed line) data, and the residuals (bottom of the plot). In phases 0 to 1, error bars are given for the original data, phases 1 to 2 show those for the reconstructed data.

In the text
