A&A 407, 527-539 (2003)
DOI: 10.1051/0004-6361:20030831

A study of the two northern open clusters NGC 1582 and NGC 1663^,

G. Baume^1,2 - S. Villanova¹ - G. Carraro¹

1 - Dipartimento di Astronomia, Università di Padova, Vicolo Osservatorio 2, 35122 Padova, Italy
2 - Facultad de Ciencias Astronómicas y Geofísicas de la UNLP, IALP-CONICET, Paseo del Bosque s/n, La Plata, Argentina

Received 25 February 2003 / Accepted 16 May 2003

Abstract
We present CCD UBV(I)$_{\rm C}$ observations obtained in the field of the previously unstudied northern open clusters NGC 1582 and NGC 1663. For the former, we also provide high-resolution spectra of the brightest stars and complement our data with Two-Micron All-Sky-Survey (2MASS) near-infrared photometry and with astrometric data from the Tycho-2 catalog.
From the analysis of all these data, we argue that NGC 1582 is a very poor, quite large and heavily contaminated open cluster. It turns out to have a reddening $E_{B-V} = 0.35 \pm 0.03$, to be situated $1100 \pm 100$ pc from the Sun and to have an age of $300 \pm 100$ Myr.
On the other hand, we were not able to unambiguously clarify the nature of NGC 1663. By assuming it is a real cluster and from the analysis of its photometric diagrams, we found a color excess value E_B-V = 0.20, an intermediate age value ($\sim$2000 Myr) and a distance of about 700 pc. The distribution of the stars in the region however suggests we are probably facing an open cluster remnant. As an additional result, we obtained aperture photometry of three previously unclassified galaxies placed in the field of NGC 1663 and performed a preliminary morphological classification of them.

Key words: Galaxy: open clusters and associations: individual: NGC 1582 and NGC 1663 - open clusters and associations: general

1 Introduction

This study is part of a long term project aimed at providing accurate CCD photometry for poorly known or unstudied northern open clusters (Carraro 2002a, and references therein). Here we focus our attention on the open clusters NGC 1582 and NGC 1663. Both objects have never been studied before, apart from the identification and a preliminary estimate of their angular size. Their basic data are summarized in Table 1.

By inspecting the finding charts of these two clusters (see Figs. 2 and 10), we notice mainly that:

• NGC 1582 lies in a region where several bright stars are present, many of them with a Henry Draper (HD) classification. The cluster appears as a weak concentration of a small group of bright stars well mixed with the very rich Galactic disk field star population toward its direction. This renders it difficult to study objects like this, and this is - we guess - the main reason for which this object has been almost neglected up to now;
• NGC 1663, which is located fairly high above the galactic plane, suffers from less contamination, and resembles the kind of objects recently suggested by Bica et al. (2001) to be Probable Open Cluster Remnants (POCRs).

In this study we would like to address the issue of the real nature of these two objects and to provide the first estimate of their fundamental parameters, namely distance, reddening, size and age. Therefore, we performed multicolor UBV(I)$_{\rm C}$ photometry for both, and high-resolution spectroscopy for some stars in the NGC 1582 field. We also complement and cross-correlate our data with the 2MASS catalog and with proper motions from the Tycho-2 catalog (Høg et al. 2000), whenever available.

The plan of this study is as follows: in Sect. 2 we briefly present the observations and data reduction. In Sects. 3 and 4 we illustrate our analysis and results for NGC 1582 and NGC 1663, respectively. Section 5 is dedicated to a preliminary analysis of three previously unclassified galaxies in the field of NGC 1663. Finally, in Sect. 6 we draw our conclusions.





Table 1: Basic data of the observed objects.

Name	$\alpha_{2000}$	$\delta_{2000}$	l	b
NGC 1582	04:32:15.4	+43:50:43	$159.30^{\circ}$	$-2.89^{\circ}$
NGC 1663	04:49:24.3	+13:08:27	$185.92^{\circ}$	$-19.65^{\circ}$

2 Observations and data reduction

2.1 Photometry

CCD UBV(I)$_{\rm C}$ observations were carried out with the AFOSC camera at the 1.82 m Copernico telescope of Cima Ekar (Asiago, Italy), in the photometric night of November 8, 2002. AFOSC samples a $8\hbox{$.\mkern-4mu^\prime$ }14\times8\hbox{$.\mkern-4mu^\prime$ }14$ field in a $\rm 1K\times 1K$ nitrogen-cooled thinned CCD.





Table 2: Journal of observations of NGC 1582, NGC 1663 and standard star fields together with calibration coefficients (November 8, 2002).

Field	Filter	Exposure time			Seeing	Airmass
		[s]			[ $\prime\prime$]
NGC 1582	U	$900\times 2$	180	20	2.5	1.196
	B	600	60	10	2.3	1.230
	V	300	30	5	2.4	1.255
	I	300	30	5	2.1	1.274
NGC 1663	U	$900\times 2$	-	-	2.5	1.348
	B	600	60	-	2.4	1.215
	V	300	30	3	2.2	1.188
	I	300	30	3	2.0	1.190
PG 0231+051	U	800			2.5	1.348
	B	300			2.4	1.324
	V	60			2.2	1.316
	I	90			2.2	1.315
PG 2213-006	U	600			2.5	1.447
	B	150			2.3	1.457
	V	30			2.3	1.465
	I	30			2.3	1.472
Calibration	$u_1 = +3.861 \pm 0.015$			$b_1 = +1.602 \pm 0.004$
coefficients	$u_2 = -0.142 \pm 0.022$			$b_2 = +0.038 \pm 0.006$
	u3 = +0.58			b3 = +0.29
	$v_{1bv} = +1.003 \pm 0.014$			$i_1 = +1.691 \pm 0.044$
	$v_{2bv} = -0.016 \pm 0.018$			$i_2 = +0.057 \pm 0.043$
	v3 = +0.16			i3 = +0.08
	$v_{1vi} = +1.002 \pm 0.016$
	$v_{2vi} = -0.013 \pm 0.016$

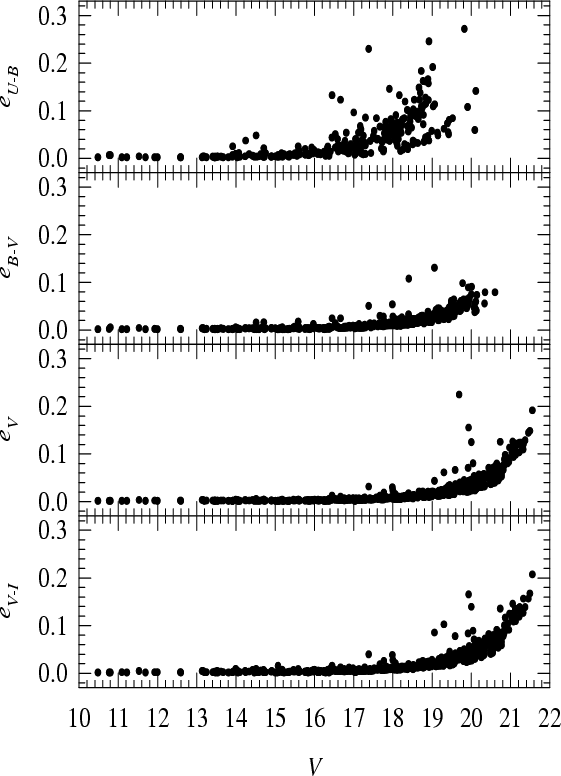

Figure 1: Photometric errors in V magnitude and U-B, B-V andV-I colours as a function of V.

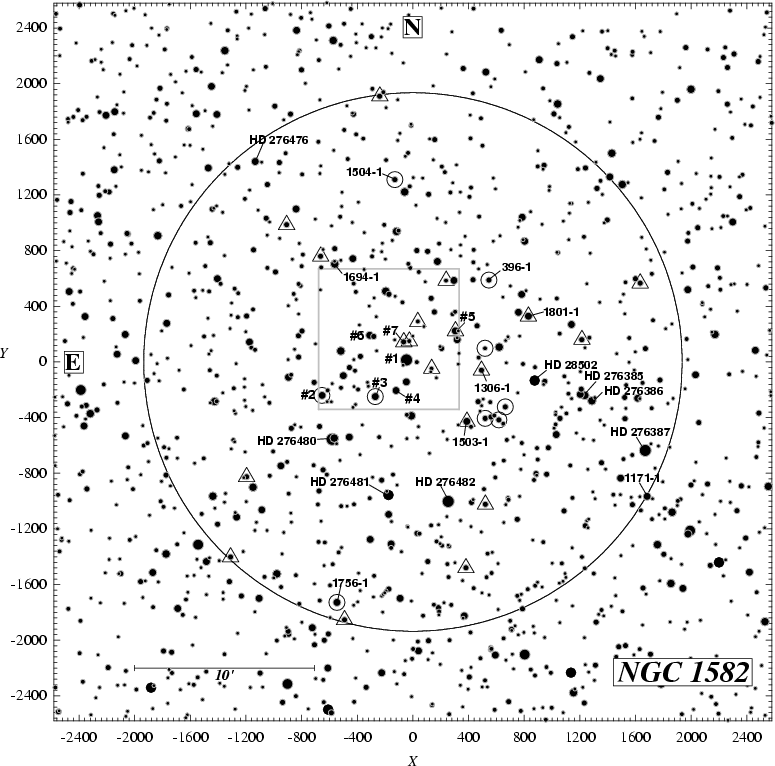

Figure 2: Finding chart of the NGC 1582 region ( $40^{\prime } \times 40^{\prime }$ and J filter). The black solid circle, $15^{\prime }$ in radius, indicates the adopted angular size for the cluster (see Sect. 3.1 and Fig. 3). The grey square indicates the area covered from Asiago. Adopted cluster members and probable cluster members are shown with small circles and triangles, respectively. For a coordinate reference, the center (X = 0; Y=0) corresponds to the cluster coordinates (see Table 1) and each X-Y unit is  $0\hbox{$.\!\!^{\prime\prime}$ }465$.

Details of the observations are listed in Table 2, where the observed fields are reported together with the exposure times, the typical seeing values and the air masses. Figures 2 and 10 show the finding charts of the NGC 1582 and NGC 1663 regions respectively, indicating the covered areas and the object angular sizes. The data has been reduced with the IRAF packages CCDRED, DAOPHOT, and PHOTCAL using the point spread function (PSF) method (Stetson 1987). The calibration equations obtained by observing Landolt (1992) PG 0231+051 and PG 2213-006 fields during the night, are:

u = U + u₁ + u₂ (U-B) + u₃ X (1)

b = B + b₁ + b₂ (B-V) + b₃ X (2)

v = V + v_1bv + v_2bv (B-V) + v₃ X (3)

v = V + v_1vi + v_2vi (V-I) + v₃ X (4)

i = I + i₁ + i₂ (V-I) + i₃ X (5)

where UBVI are standard magnitudes, ubvi are the instrumental ones, X is the airmass and the used coefficients are presented at the bottom of Table 2. As for V magnitudes, when B magnitude was available, we used expression (3) to compute them, elsewhere expression (4) was used. The standard stars in these fields provide a very good color coverage, essential to obtain reliable transformations. For the extinction coefficients, we assumed the typical values for the Asiago Observatory (u₃, b₃, v₃ and i₃ values in Table 2, Desidera et al. 2002). Photometric global errors have been estimated following Patat & Carraro (2001) and their trends against V magnitude are shown in Fig. 1.

2.2 Spectroscopy

High-resolution ( $R \approx 30~000$) spectra of 10 stars (see Table 3 and Fig. 5) in the field of NGC 1582 were obtained during the nights of January 14-15 and February 14, 2003, using the REOSC Echelle Spectrograph attached to the 1.82 m telescope of Asiago Astronomical Observatory. This instrument works with a Thomson 1024$\times$1024 CCD and the allowed wavelength coverage is approximately 4500-6650 Å. Details on this instrument are given in Munari & Zwitter (1994) and on the Asiago Obervatory Home page.

The exposure times were 45 min for all the stars. In order to improve the signal-to-noise ratio, two exposures were taken for each star reaching at the end S/N values up to 70. The data have been reduced with the IRAF package ECHELLE using thorium lamp spectra for wavelength calibration purposes. By comparing final known sky line positions along the spectra we derived an error of about 0.01 Å.

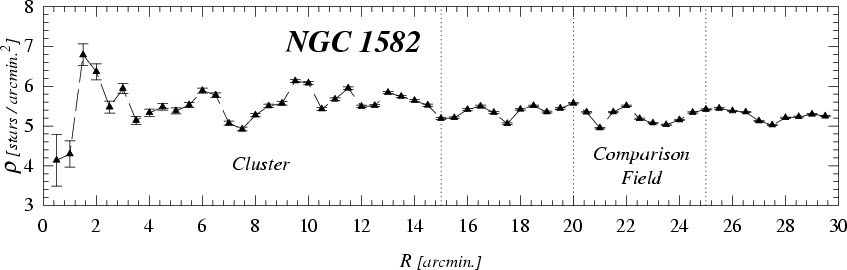

Figure 3: Stellar surface density profile in the region of NGC 1582 as a function of the radius. Data have been taken from 2MASS catalog. Dotted lines indicate the adopted limits for the cluster and for the comparison field related with Fig. 8b.

Figure 4: a) Vector point plot for the stars  $20^{\prime }$ around the center of NGC 1582 (data from HD Extension Charts and Tycho-2 catalogs). b) Radial velocities obtained from Echelle spectra. See captions of Figs. 6 and 8 for the meaning of the symbols. The crosses indicate the mean error values.

Spectra were classified mainly on the basis of the intensity of the Fe, H and He lines - depending on the spectral type - and by comparing them with spectrophotometric standards. The results are shown in Fig. 5, where we plot the Echelle spectra of the 10 measured stars degraded to a resolution of about 90 Å/mm. A few main lines are also shown. These spectra have been then compared with stellar libraries from Montes et al. (1997, 1999) and Jaschek & Jaschek (1987) to obtain estimates of spectral types and luminosity classes.

Individual radial velocity values were obtained with the RVIDLINES task using up to 10 lines. Typical errors in the radial velocity amount to 3.0 km s^-1. The resulting classification together with the radial velocity values are listed in Table 3.

3 NGC 1582

NGC 1582 (= $\rm OCL~407 = C0428$+43) is commonly considered an open cluster with a diameter in the range of  $15^{\prime }$ (Dias et al. 2002) to  $37^{\prime}$ (Lyngå 1987). Our CCD observations only cover the cluster central region (see Fig. 2). Therefore, in order to better probe the cluster size and nature, we complemented our data with near IR photometry from the 2MASS catalog.

3.1 Stellar counts

To derive the radial stellar surface density we adopted the cluster center given by Dias et al. (2002, see Table 1), and we use: a) the corresponding DSS-2 red image of  $40^{\prime } \times 40^{\prime }$, and b) all the stars from the 2MASS catalog inside a circle of radius 30$^{\prime}$, centered on the adopted cluster center. The computation is done by performing star counts inside increasing concentric rings  $1^{\prime}$ wide around the cluster center and then dividing by their respective surfaces. The density profiles obtained in the two cases are very similar. For the sake of illustration, only the one derived from 2MASS data is shown in Fig. 3. By inspecting this plot we notice that the cluster appears as a weak over-density up to $\sim$ $15^{\prime }$ from the center, where the stellar density reaches the field value. As anticipated, the cluster turns out to be much larger than the area we covered with our CCD observations and we adopt  $15^{\prime }$ as the radius. This way, the obtained diameter has a value close to the previous qualitative suggestion by Lyngå (1987).

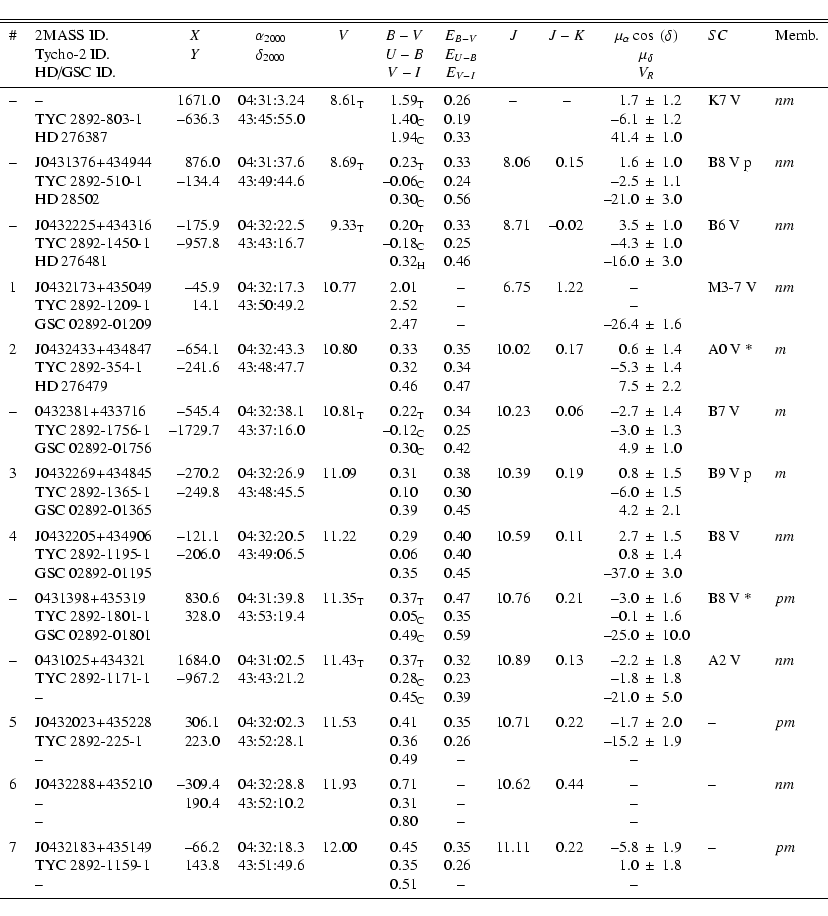

Table 3: Some bright stars in the region of NGC 1582.

$${ \begin{tabular}{rlrcr@{.}lr@{.}lr@{.}lr@{.}lr@{.}lr@{$~\pm~... ...}{~~~~~~~--} & & \\ \noalign{\smallskip }\hline \end{tabular}}$$

Notes:

• Letters T, H and C indicate data obtained from Tycho-2, Hipparcos catalog or computed according to the spectral classification (see text) respectively.
• Proper motion and radial velocity values are expressed in mas/yr and km s^-1 respectively.
• Spectral classification (SC) was obtained from Asiago observations. Asterisks indicate probable binary stars.
• Membership (Memb.) is assigned as described in Sect. 3.4.

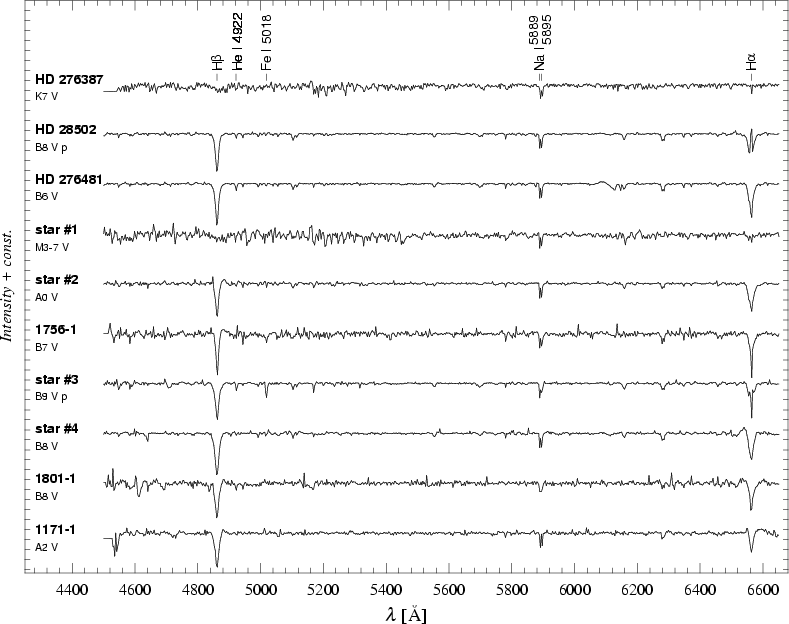

Figure 5: Spectra of a sample of bright stars in the field of NGC 1582. A few interesting lines are indicated. See Table 3 for details.

3.2 Proper motions and radial velocities

Important information on the kinematics of the brightest stars in and around NGC 1582 field can be derived from the study of proper motions and radial velocities. The former are available in the Tycho-2 catalog and in the HD Extension Charts (Nesterov et al. 1995) whereas the latter were measured for 10 stars (see Sect. 2.2).

The Tycho-2 proper motions are based on the comparison between contemporary mean positions derived from the recent Tycho observations on-board Hipparcos and early-epoch positions observed many decades ago (see Høg et al. 2000 and references therein). Due to the long time-baseline they have rather high precision and therefore directly indicate the long-term mean tangential motions of the stars. We have collected proper motion components for 53 stars in a field  $20^{\prime }$ around the center of NGC 1582. They are shown in the vector point diagram in Fig. 4a. The points distribution is characterized by a global spread $\sim$10 mas/yr with a noticeable concentration, which seems to indicate a possible physical relation among these stars.

Spectra obtained with the Echelle spectrograph allow us to get radial velocity, as described in Sect. 2.2. The obtained values are shown in Fig. 4b, and range from -40 to +40 km s^-1.

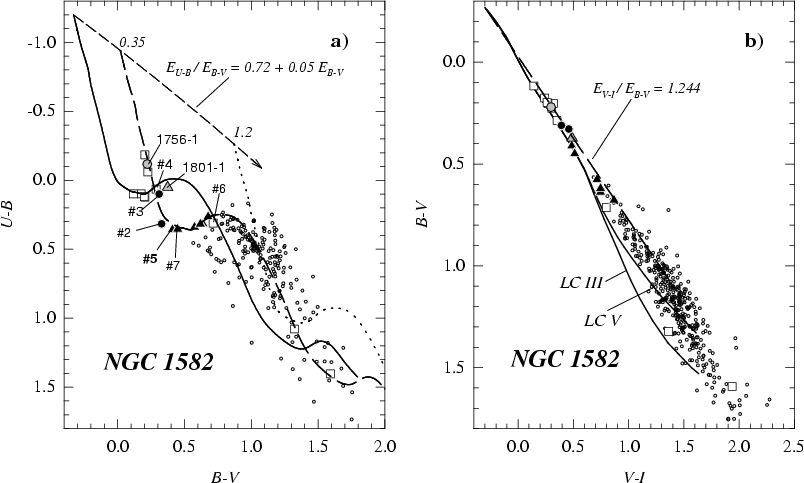

Figure 6: Color-color diagrams (CCDs) of stars in the region of NGC 1582. a) U-B vs. B-V diagram. The symbols have the following meaning: big circles are adopted member stars (m), triangles are probable member stars (pm), empty squares are non-member stars (nm), and small open circles are stars without any membership assignment. Black symbols indicate stars with CCD measurements whereas grey ones are for stars with data from the Tycho-2 catalog. The solid line is Schmidt-Kaler's (1982) ZAMS, whereas the dashed and dotted lines are the same ZAMS, but shifted by EB-V = 0.35 and 1.2, respectively. The dashed arrow indicates the normal reddening path. b) B-V vs. V-I diagram. Symbols as in Fig. 5a. The solid lines represent the intrinsic positions for stars of luminosity classes V and III (Cousins 1978a,b). The dashed line gives the normal reddening path (R = 3.1).

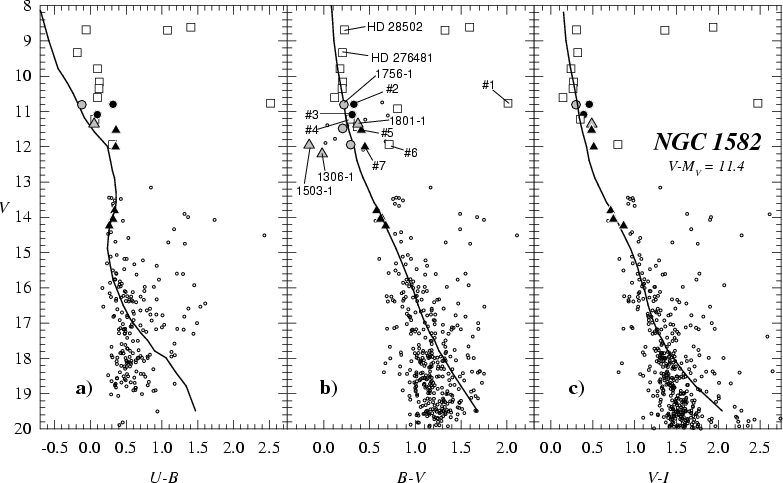

Figure 7: CMDs for all the stars covered in the field of NGC 1582. Symbols as in Fig. 5a. The solid line is the Schmidt-Kaler (1982) empirical MS fitted to the apparent distance modulus V-MV = 11.4 ( V-MV = V0-MV + 3.1 EB-V, see Sect. 3.4).

3.3 Photometric diagrams

The color-color diagrams (CCDs) and the color-magnitude diagrams (CMDs) are shown in Figs. 6-8. The first two figures include all the stars measured in the direction of NGC 1582 and also several bright stars with available spectral classification and Hipparcos (ESA 1997) or Tycho-2 magnitudes within  $20^{\prime }$ from the cluster center and not covered by our photometry. Tycho-2 magnitudes are converted to the Johnson system using the relations given by Bessell (2000) and approximated (U-B) and (V-I) colors are obtained according to the spectral types (when they are available) together with Schmidt-Kaler (1982) and Cousins (1978a,b) calibrations. Figure 8 presents the CMDs from 2MASS catalog for stars placed inside the cluster radius ( $R < 15^{\prime}$, see Sect. 3.1) and for star placed in a ring around the cluster ( $20^{\prime} < R < 25^{\prime}$, see Fig. 3) that is adopted as a comparison field. Radii are selected in such a way that both diagrams in Fig. 8 cover equal sky areas.

If we inspect Fig. 6a and compare the star positions with Schmidt-Kaler's (1982) Zero Age Main Sequence (ZAMS), using different reddening values, there seem to be two populations: one having a lower excess (dashed curve) mainly defined by the brightest stars, and another one with a much larger reddening. We claim that the former define the open cluster NGC 1582, whereas the latter population is identified as the Galactic disk component, made of stars placed at different distances and with a different amounts of absorption. To guide the eye we have placed another ZAMS reddened by E_B-V = 1.2 (dotted curve). A similar conclusion can be deduced from Figs. 7 and 8, where we see that most of the stars observed are just Galactic disk field stars and NGC 1582 looks like a small group of stars brighter than $V \approx 14$ above the mean stellar background.

3.4 Members selection

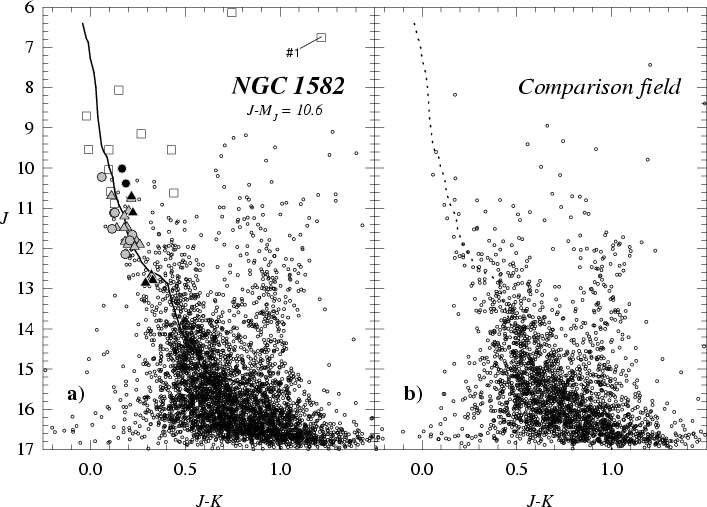

Figure 8: CMDs from 2MASS catalog. Symbols are as in Fig. 6a. a) Stars placed inside the cluster area. b) Stars placed in a ring around the cluster. The solid line in panel  a) and the dotted one in panel  b) are the intrinsic position for MS stars from the Schmidt-Kaler (1982) and Koornneef (1983) calibrations fitted to the apparent distance modulus J-MJ = 10.6 ( J-MJ = V0-MV + (3.1 - 2.3) EB-V, see Sect. 3.4).

We derive cluster membership by comparing the distribution of the stars in the different photometric diagrams (e.g. Baume et al. 1999; Ortolani et al. 2002; Carraro 2002b). But we also take into account their location in the finding chart (Fig. 2), in the vector point diagram and the measured radial velocities (Fig. 4). At first, we use only Figs. 6 and 7 and we notice that there are five bright blue stars (#2, 3, 4, 5 and 7) that fit pretty well the empirical ZAMS shifted by  E_B-V = 0.35 (dashed line). These stars also are well placed in the vector point diagram, although three of them, stars #4, 5 and 7, slightly depart from the central concentration in this diagram. Additionally, star #4 has a radial velocity value very different from that of stars #2 and 3. Therefore, stars #2 and 3 are adopted as cluster members (m), stars #5 and 7 as probable members (pm), and star #4 is considered to not belong to the cluster (nm).

Using stars #2, 3, 5 and 7, we compute colour excess values for each of them applying the relations E_U-B/E_B-V = 0.72 + 0.05 E_B-V and (U-B)₀ = 3.69 (B-V)₀ according to Vázquez & Feinstein (1991); this yields a mean value  $E_{B-V} = 0.35 \pm 0.03$ (s.d.), here adopted as the cluster color excess. Beside, following the reddened ZAMS path onto CCDs and CMDs, we select four additional stars and adopt them as probable cluster members (pm).

Star #2 is of spectral type A0 V, as derived from its spectrum and from its position in the CCD. However by comparing its position in the CMDs with respect to other members, we notice that it appears over-luminous by 0.75 mag. This can be explained by assuming it is a binary system. Of course, this is only a suggestion, which can be confirmed for instance by looking for radial velocity variations in other-epoch spectra. Therefore we keep it on the adopted members list. On the other hand, star #6 is well placed on the CCDs (see Fig. 6) as a F-type star, but its position in the CMDs (see Fig. 7) contradicts this hypothesis and it is therefore considered a non-member (nm).

At this point, we are ready to use Fig. 8 as well. In this figure we superimpose on the data an empirical Main Sequence (MS) obtained by the combination of the Schmidt-Kaler (1982) and Koornneef (1983) calibrations shifted according to the relation among colors obtained from the van de Hulst extinction curve #15 (Johnson 1968). By closely inspecting this figure, we notice that there are some stars not covered by our survey, but within the cluster radius, which are properly located both in the CMD (Fig. 8a) and in the proper motion diagram of Fig. 4a (grey symbols in those figures), and one of them (TYC 2892-1756-1) also has a radial velocity value compatible with those of adopted member stars #2 and 3 (see Fig. 4b). This group of stars has a counterpart in the corresponding comparison field (Fig. 8b). We compute then the J distributions for stars with J-K < 0.2 (see Table 4) in each diagram and we compare them by using a $\chi^2$ test. We find that they are different with a probability higher than 95%. Therefore, although we are aware that we are dealing with small numbers of stars and that a statistical analysis is therefore only indicative, the difference between both distributions turns out to be noticeable and therefore we are inclined to consider the group of stars mentioned above as cluster members (m). An exception are stars TYC 2892-1306-1, TYC 2892-1503-1 and TYC 2892-1801-1. The first two have high errors in their B-V measurements and are situated leftward of the MS in Fig. 7b, and the third has a radial velocity value with a huge error and is far from the adopted values for cluster members (see Fig. 4b and Table 3). We cannot exclude that this might be due to a binary effect. Thus we consider these three particular stars as only probable members (pm). On the other hand, the photometric diagrams also reveal that some stars with available spectral classification and Tycho-2 data do belong to the field stellar population; they are therefore taken as non-members (nm).





Table 4: J magnitude distributions from stars with J-K < 0.2 in Fig. 8.

$\Delta J$	8-9	9-10	10-11	11-12	12-13
Cluster	2	3	16	20	22
Comparison field	1	1	4	7	6

Star #1 (GSC 02892-01209) deserves special attention. It is the brightest and one of the reddest stars in our sample. Unfortunately, we were not able to find out either its distance or its proper motion components. This star might in principle be a giant cluster member. However, from its spectrum we obtained a radial velocity value that disagrees with the adopted one for adopted cluster members (see Fig. 4b). Also, it is classified as a M-type star and its parameters (reddening and distance) differ from those of the cluster, ruling out the possibility that it is a member star.

In conclusion, after the above detailed analysis of the brightest stars in the NGC 1582 region, we conclude that i) the brightest ones are merely field stars, and ii) we only consider the stars classified as m and pm as the main members of the open cluster NGC 1582. They are indicated in Fig. 2, and demonstrate that we are dealing with a sparse, poor and severely field-star-contaminated open cluster.

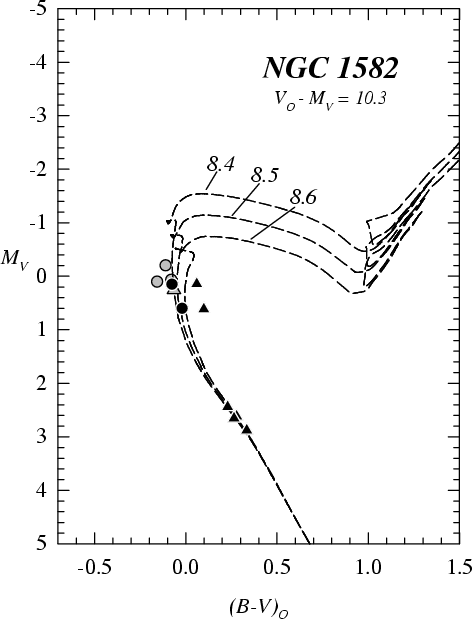

Figure 9: MV vs. (B-V)0 diagram of the members and probable members in the region of NGC 1582. Symbols as in Fig. 6a. Dashed curves are the isochrones from Girardi et al. (2000). The reported numbers give the  $\log~(age)$.

3.5 Hints for distance and age

In Fig. 9 we plot the reddening-corrected M_V vs. (B-V)₀ diagram for the cluster members and probable cluster members adopting a distance modulus of $V_{0}-M_{V} = 10.3 \pm 0.2$ (error from inspection). Last value fits very nicely the empirical Schmidt-Kaler (1982) ZAMS. We also apply the spectroscopic parallax method to three classified stars, obtaining $V_{0}-M_{V} = 9.9 \pm 0.2$. These values are in quite good agreement and imply that the few stars identified as NGC 1582 are located $1100 \pm 100$ pc away from the Sun in the outer edge of the Orion arm.

From the obtained spectral classification (see Table 3) and from the location of adopted cluster members stars in Fig. 5a along the shifted ZAMS (dashed curve), we infer that the spectral types range from B7 to F2. If the stars having B7 spectral type are still on the main sequence, we derive an age of about 300 Myr for NGC 1582 (Girardi et al. 2000). A similar result is obtained by the isochrone fitting method shown in Fig. 9.

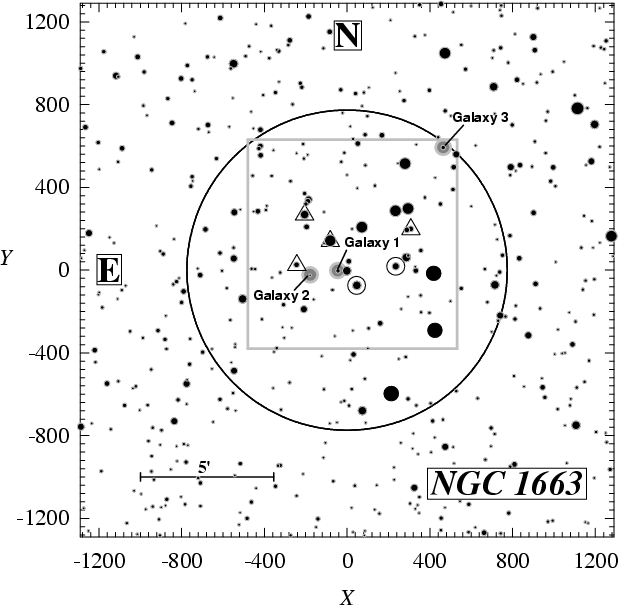

Figure 10: Finding chart of the NGC 1663 region ( $20^{\prime } \times 20^{\prime }$ and J filter). The black solid circle, $6^{\prime }$ radius, indicates the adopted angular size for the cluster (see Sect. 4.1 and Fig. 10). As in Fig. 2, grey square indicates the area covered from Asiago, and adopted members and probable members are enclosed in small circles and triangles, respectively. For a coordinate reference, the center (X = 0; Y=0) corresponds to the cluster coordinates (see Table 1), and each X-Y unit is $0\hbox{$.\!\!^{\prime\prime}$ }465$. Field galaxies positions are indicated as grey circles.

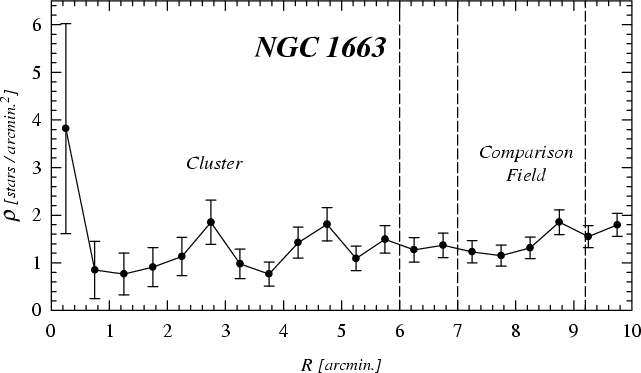

Figure 11: Stellar densities in the region of NGC 1663 as a function of the radius from DSS-2 image. The dotted lines indicate the adopted limits for the cluster and for the comparison field related with Fig. 14b.

4 NGC 1663

NGC 1663 (= $\rm OCL~461 = C0445$+130) is located quite high above the galactic plane for an open cluster (see Table 1) and does not emerge much from the general Galactic field toward its direction. According to Lyngå (1987) it has a diameter of  $12^{\prime}$ and therefore our observations cover most of the cluster region (see Fig. 10). Unfortunately, proper motions are available only for four stars in the region  $10^{\prime}$ around NGC 1663 (see Table 5), so we must rely mostly on photometric data to derive cluster members and cluster fundamental parameters.

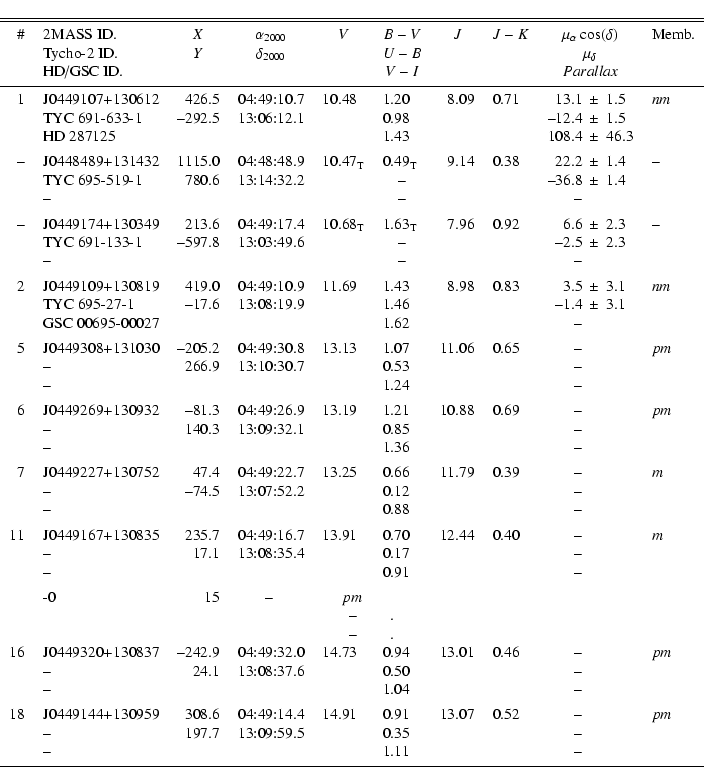

Table 5: Some bright stars in the field of NGC 1663.

$$\begin{tabular}{rlrcr@{.}lr@{.}lr@{.}lr@{.}lr@{$~\pm~$}ll} \h... ...}{l}{~~~~~~~--} & \\ \noalign{\smallskip }\hline \end{tabular}$$

Notes:
- Letters T indicate data obtained from Tycho-2 catalog.
- Proper motion and parallax values are expressed in mas/yr and mas respectively.

4.1 Stellar counts

NGC 1663 appears as a loose aggregate of a few relatively bright stars. As for NGC 1582, we perform stellar counts in concentric rings around the cluster center, but this time, since the cluster does not appear much extended, we only use the DSS-2 red data. The stellar density profile is shown in Fig. 11. One can readily see the lack of any clear trend, and therefore it is a difficult task to define the cluster radius. Anyway, if we inspect the DSS-2 image, the region where is located the over-density of stars is about $6^{\prime }$ radius (see Fig. 10). In conclusion, it is hard to decide upon the real nature of this cluster, although, broadly speaking, the over-density we found seems to suggest that we are looking at an aggregate of the kind suggested by Bica et al. (2001), namely a POCR. The lack of an unambiguous cluster center, and the loose distribution of the brightest stars across the field support this suggestion.

4.2 Photometric diagrams and member selection

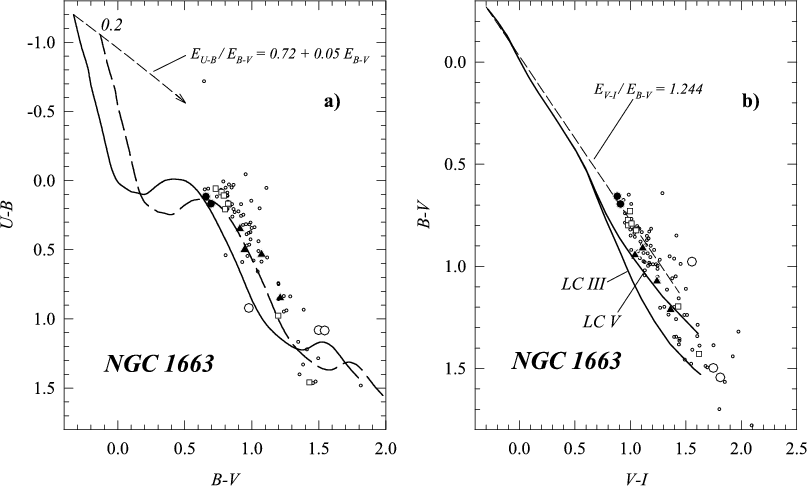

Figure 12: CCDs of the stars in the region of NGC 1663. a) U-B vs. B-V diagram. As for NGC 1582, symbols have the following meaning: circles are adopted member stars (m), triangles are probable member stars (pm), empty squares are non-members stars (nm) and small open circles are stars without any membership assignment. Field galaxies are indicated as white circles. The solid line is Schmidt-Kaler's (1982) ZAMS, whereas the dashed one indicates the same ZAMS, but shifted by EB-V = 0.2. The dashed arrow indicates the normal reddening path. b) B-V vs. V-I diagram. Symbols as in Fig. 12a. The solid lines are the intrinsic positions for stars of luminosity classes V and III (Cousins 1978a,b), while the dashed one provides the normal reddening path (R = 3.1).

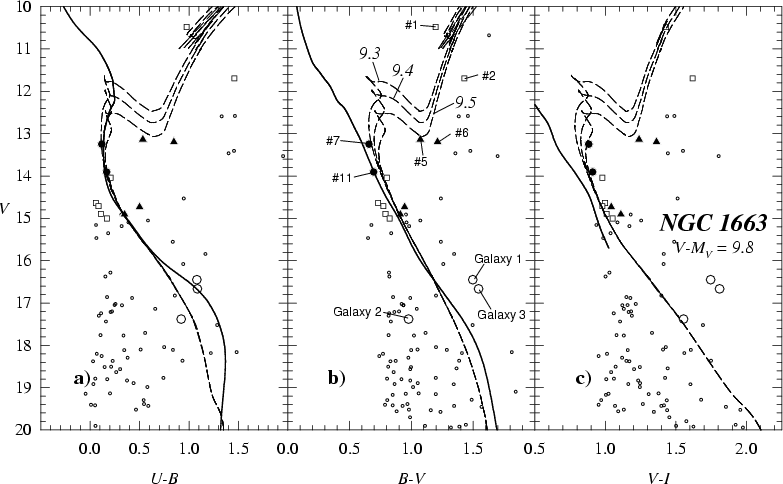

Figure 13: Color-magnitude diagrams (CMDs) for all the stars covered in the field of NGC 1663. Symbols as in Fig. 12a. The solid line and dashed curves are the Schmidt-Kaler (1982) empirical ZAMS and isochrones from Girardi et al. (2002) respectively. They were fitted to the apparent distance modulus V-MV = 9.8 ( V-MV = V0-MV + 3.1 EB-V, see Sect. 4.2). The numbers indicate $\log~(age)$.

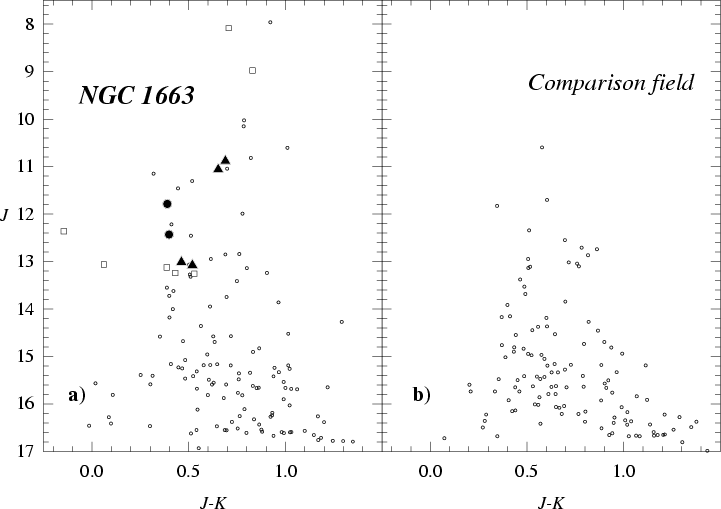

Figure 14: CMDs from the 2MASS catalog. Symbols as in Fig. 12a. a) Stars placed inside the cluster area b) Stars placed in a ring around the cluster (see Fig. 10).

We follow the same method applied above for NGC 1582 to derive preliminary individual reddening and membership of the cluster. Photometric diagrams are shown in Figs. 12-14, where all the observed stars are presented in the first two, whereas the last one is obtained from 2MASS data. Let us fix our attention in Fig. 12a: here all the stars seem to crowd along an empirical ZAMS shifted by  E_B-V = 0.20. It is however clear that in this case a reddening solution cannot be found, since all the stars lie well beyond the location of A5 spectral type stars (Ortolani et al. 2002). The low color excess and the small dispersion in reddening are not unexpected, due to the position of the cluster high above the Galactic plane and toward the anti-center direction. The CMDs are not easy to interpret, since most of the stars are just Galactic disk field stars, as is readily seen by inspecting both panels in Fig. 14. From this figure it is evident that NGC 1663 emerges as an over-density of a dozen stars brighter than $V \approx 16{-}17$ above the mean stellar background.

In conclusion, only preliminary membership information can be derived from the CMDs of Figs. 13 and 14. We therefore try to fit the distribution of the stars with both the empirical Schmidt-Kaler (1982) ZAMS and with several isochrones from Girardi et al. (2000) by conservatively assuming that the metal content is solar. A possible relationship might exist between some MS stars and the brightest star (star #1). This is the star HD 287125 with spectral type G5 and it could be a giant cluster member, but its parallax value (see Table 5) definitely rules out this possibility, and we are left with a nearby foreground star. The shape of the upper part of the CMDs seems to suggest that the turn-off point (TO) is located at about V = 13.2, B-V = 0.6, and that the stars rightwards of the TO are sub-giant stars. On this basis we will consider two stars as cluster members (m), four more as probable ones (pm) and a few bright ones were identified as non-members (nm).

Figure 13 shows the CMDs corresponding to the cluster area, and to a ring around it adopted as a comparison field (see Fig. 11). As in Fig. 8 for NGC 1582, radii were selected in such a way that both diagrams in Fig. 14 represent equal sky areas. By comparing both diagrams we can see a notable over-density of bright stars in the cluster region, which would favor the idea that NGC 1663 is a physical cluster.





Table 6: Galaxies observed in the field of NGC 1663.

Name	$\alpha_{2000}$	Morphology	V	B-V	J
2MASS ID	$\delta_{2000}$	$D \times d$		U-B	H
				V-I	K
Galaxy 1	04:49:25.7	E3	16.45	1.50	14.52
J0449257+1308	13:08:25.0	$17.8^{\prime\prime}\times13.3^{\prime\prime}$		1.08	13.76
				1.75	13.49
Galaxy 2	04:49:29.9	S0	17.38	0.98	16.33
J0449299+1308	13:08:15.4	$23.1^{\prime\prime}\times9.4^{\prime\prime}$		0.92	15.85
				1.56	14.57
Galaxy 3	04:49:09.5	E0	16.67	1.55	14.82
J0449095+1313	13:13:03.0	$13.5^{\prime\prime}\times13.5^{\prime\prime}$		1.09	13.99
				1.81	13.54

4.3 Hints for NGC 1663 distance and age

As discussed in the previous section, Fig. 13 allows us to derive a rough estimate of the distance and the age of NGC 1663. These diagrams yield a cluster distance of about 700 pc ( $V_{0}-M_{V} = 9.2 \pm 0.2$) and an age of about 2000 Myr ( $\log~(age) = 9.4$). We also tried other combinations of distance moduli and color excesses over the CMDs, in order to check whether the reddest stars could be cluster members, but the obtained solutions did not agree at all with the corresponding CCDs of Fig. 12.

In conclusion, if NGC 1663 really is a star cluster, we may be facing a dissolving aggregate of the kind proposed by Bica et al. (2001).

5 Field galaxies

Since NGC 1663 is located well above the Galactic plane, it is not very improbable that we should observe field galaxies toward its direction. In our case three of them are clearly detectable and we notice that they were not catalogued so far, except for entries in the 2MASS catalog as point sources. Therefore, we compute their integrated photometric parameters by performing aperture photometry. We use the PHOT task at increasing radius until the resulting magnitudes converged. Our results are presented in the photometric diagrams and in Table 6 together with an estimate of their angular sizes and a preliminary morphological classification that - by the way - agrees quite well with the observed colors.

6 Conclusions

We have presented the first CCD multicolor study in the regions of the two poorly known northern open clusters NGC 1582 and NGC 1663 for which no investigations had been carried out insofar. In the case of NGC 1582 we also obtained Echelle spectra of the brightest stars. In detail, we found that:

• NGC 1582 is a very poor and spread-out cluster with a radius of 15$^{\prime}$ and formed by a group of stars at a distance of about 1 kpc in the outer edge of the Orion arm. We estimate that its reddening is $E_{B-V} = 0.35 \pm 0.03$ and that it has an age of about 300 Myr. We also obtained radial velocities for 10 stars and detected two probable binary systems among its members.
• NGC 1663 has a lower reddening of E_B-V = 0.2 but, until more robust definition of its membership is available, the interpretation of the CMDs is quite difficult. We only derive a preliminary membership assignment and we suggest this object has an age of $\sim$2000 Myr and a distance value of about 700 pc. The most probable interpretation of the data at our disposal is that NGC 1663 is an open cluster remnant.

Finally, we identify three previously unclassified field galaxies in the direction of NGC 1663. We provide their integrated magnitudes and colors, angular sizes and preliminary morphological types. Two of them are found to be ellipticals and the third is either a flattened S0 or a spiral one.

This article is partially based on the Second Generation Digitized Sky Survey that was produced at the Space Telescope Science Institute under US government grant NAG W-2166. The images of these surveys are based on photographic data obtained using the Oschin Telescope on Palomar Mountain and the UK Schmidt Telescope. The plates were processed into the present compressed digital form with the permission of these institutions. This study has also made use of: a) the SIMBAD database, operated at CDS, Strasbourg, France, and b) the data from the Two Micron All Sky Survey, which is a joint project of the University of Massachusetts and the Infrared Processing and Analysis Center, funded by NASA and NSF
