All Figures

$\begin{figure} \par {\includegraphics[width=14cm,clip]{Fd161_f1.ps} }\end{figure}$ Figure 1: a) V direct image of J1131GL obtained with EFOSC-2 (4 $\times$ 150 s integration time). The 4 lensed images and the deflecting galaxy are identified on this CCD frame. b) Deconvolved image using the MCS method (see text) and c) Idem but with the quasar images removed. A conspicuous Einstein ring candidate is seen on the deconvolved images.
Open with DEXTER

In the text

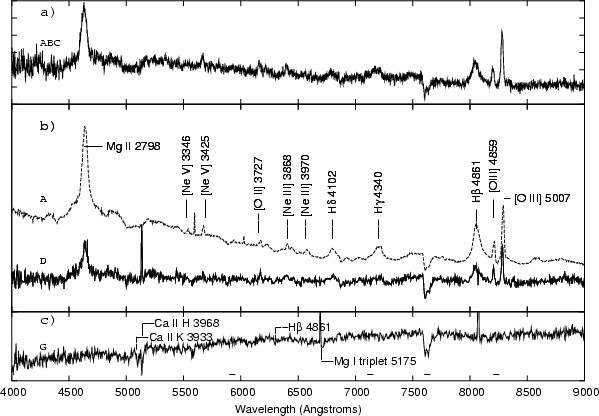

$\begin{figure} \par\resizebox{8.5cm}{!}{\includegraphics[clip]{Fd161_f2.ps}} \end{figure}$ Figure 2: a) Integrated spectrum of the three bright components A, B, C. b) Spectrum of A (2 $\times$ 900 s) and D (900 s). Emission lines of a quasar at z= 0.658 are easily identified. c) Spectrum of the lensing galaxy (900 s). The typical absorption lines of an elliptical galaxy at z= 0.295 are identified. The flux scales are arbitrary. The small horizontal lines above the wavelength axis on c) indicate telluric absorption lines.
Open with DEXTER

In the text

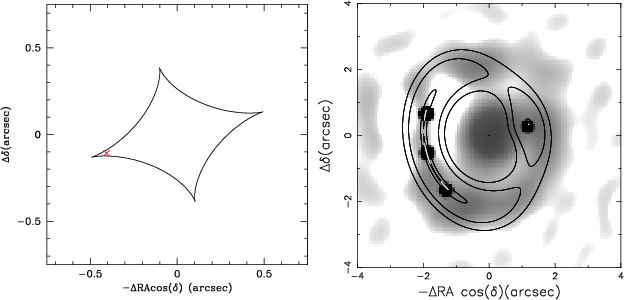

$\begin{figure} \par\resizebox{8.8cm}{!}{\includegraphics[clip]{Fd161_f3.eps}} \end{figure}$ Figure 3: Results of the SIS $+\gamma$ model expressed in a system of coordinates centered on the lensing galaxy G. Left panel: the source plane position of the source (x), relative to G, is (-0.411 $^{\prime \prime }$ ,-0.1084 $^{\prime \prime }$ ). This corresponds to a closest distance to a fold caustic of 0.016 $^{\prime \prime }$ (115 pc in the source plane). Right panel: the contours (calculated from the model) corresponding respectively to 110, 740, 3700 and 5200 pc from the central engine in the source plane are overplotted on the deconvolved EFOSC frame.
Open with DEXTER

In the text

$\begin{figure} \par {\includegraphics[width=14cm,clip]{Fd161_f1.ps} }\end{figure}$	Figure 1: a) V direct image of J1131GL obtained with EFOSC-2 (4 $\times$ 150 s integration time). The 4 lensed images and the deflecting galaxy are identified on this CCD frame. b) Deconvolved image using the MCS method (see text) and c) Idem but with the quasar images removed. A conspicuous Einstein ring candidate is seen on the deconvolved images.
