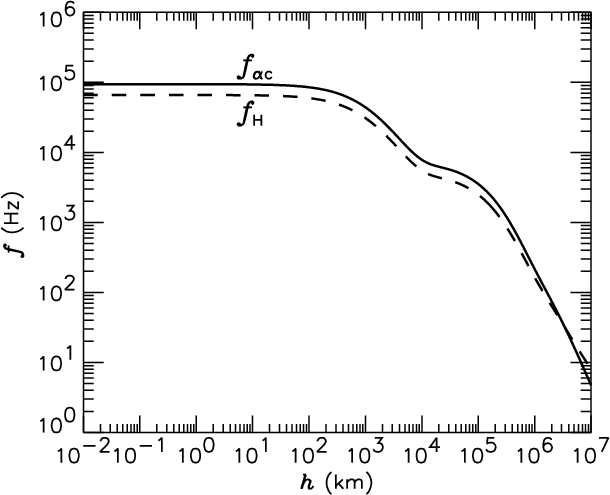

$\begin{figure} \par\includegraphics[width=8.6cm,clip]{H4077F1.ps} \end{figure}$ Figure 1: Gyro-frequency of alpha particles in a flux tube, the curve for $f_{\rm H}$ (dashed line) is taken from model 1 in Fig. 2.
Open with DEXTER

In the text

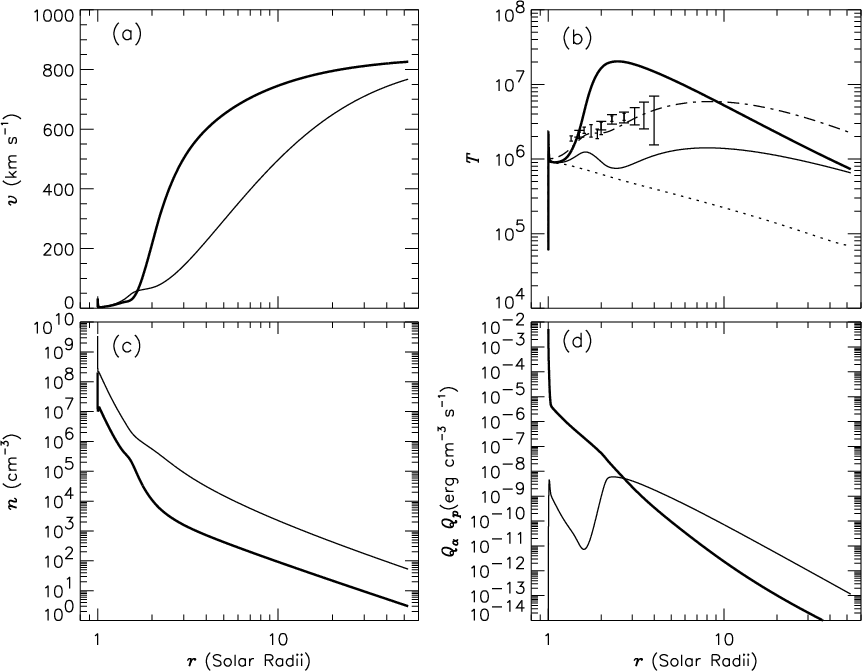

$\begin{figure} \par\includegraphics[width=16cm,clip]{H4077F2.ps} \end{figure}$ Figure 2: A coronal heating and fast solar wind model in which the plasma is heated by ion cyclotron waves, Model 1. a) Speed of protons (thin solid line) and alpha particles (thick solid line). b) Temperature of electrons (dotted line), protons (thin solid line) and alpha particles (thick solid line). The dashed-dotted line is the proton effective temperature calculated from model 1. The narrow and wide vertical bars represent the observed proton effective temperatures from UVCS observations reported by Esser et al. (1999) and Kohl et al. (1998), respectively. c) Density of protons (thin solid line) and alpha particles (thick solid line). d) Heating rates of protons (thin solid line) and alpha particles (thick solid line). Here $f_{\rm d}=50~000$ Hz.
Open with DEXTER

In the text

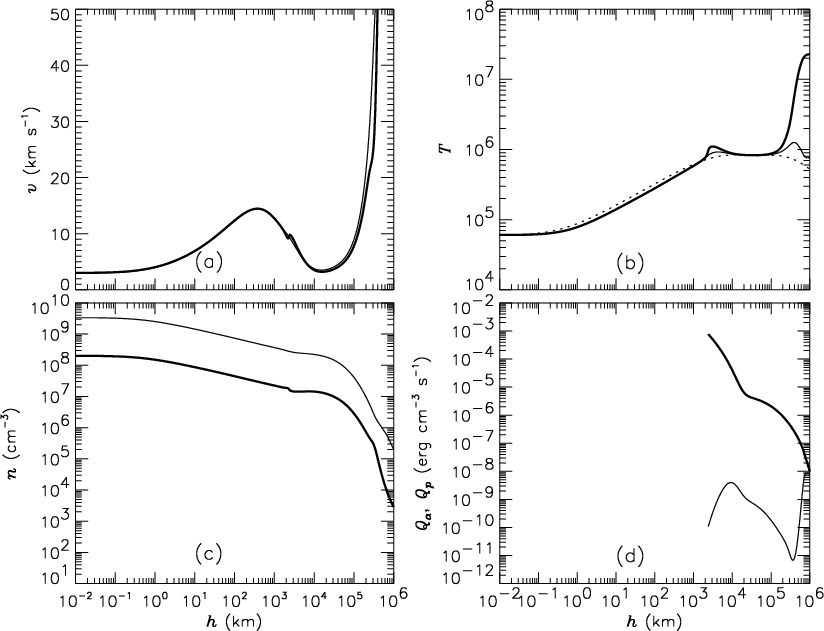

$\begin{figure} \par\includegraphics[width=15.3cm,clip]{H4077F3.ps} \end{figure}$ Figure 3: An enlarged version of Fig. 2 in the region just above the lower boundary.
Open with DEXTER

In the text

$\begin{figure} \par\includegraphics[width=8cm,clip]{H4077F4.ps}\end{figure}$ Figure 4: Ratio between alpha particle heating term due to waves and collisional heating terms in alpha particle energy energy equation (Hu & Habbal 1999).
Open with DEXTER

In the text

$\begin{figure} \par\includegraphics[width=7.7cm,clip]{H4077F5.ps} \end{figure}$ Figure 5: Model 1: thermal pressure of electrons (dotted line), protons (thin solid line), and alpha particles (dashed line). The thick solid line represents the total pressure $n_{\rm e}T_{\rm e}+n_{\rm p}T_{\rm p}+n_\alpha T_\alpha$ .
Open with DEXTER

In the text

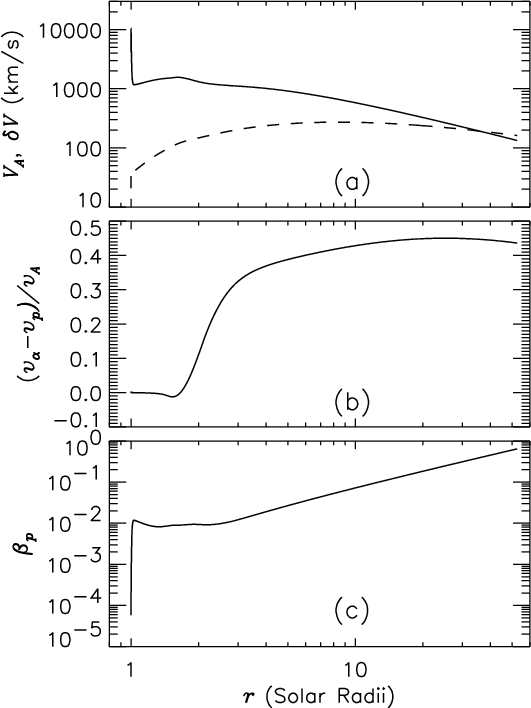

$\begin{figure} \par\includegraphics[width=7.5cm,clip]{H4077F6.ps} \end{figure}$ Figure 6: Model 1: a) the Alfvén speed (solid line) and the wave amplitude (dashed line); b) ratio $(v_\alpha -v_{\rm p})/v_{\rm A}$ ; c) Proton beta value.
Open with DEXTER

In the text

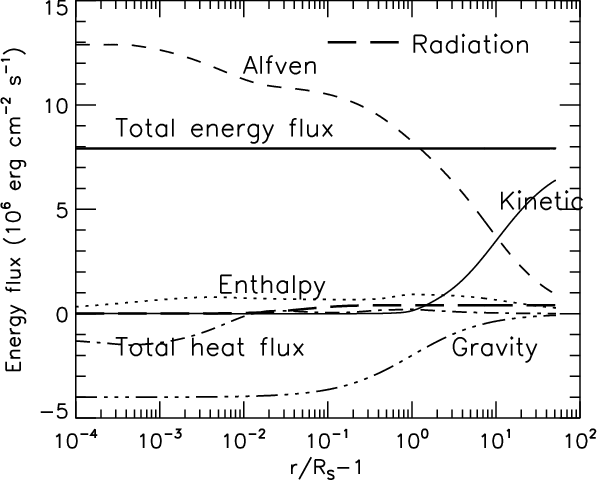

$\begin{figure} \par\includegraphics[width=8.4cm,clip]{H4077F7.ps} \end{figure}$ Figure 7: Contributions to the energy flux density, multiplied by $a(r)/a(R_{\rm S})$ for Model 1: Alfvén wave energy flux (dashed); total enthalpy (dotted); total kinetic energy flux (thin solid); total heat flux (dot-dashed); gravity (dash-triple-dotted); radiation (thick dashed). The thick solid line is the total energy flux density.
Open with DEXTER

In the text

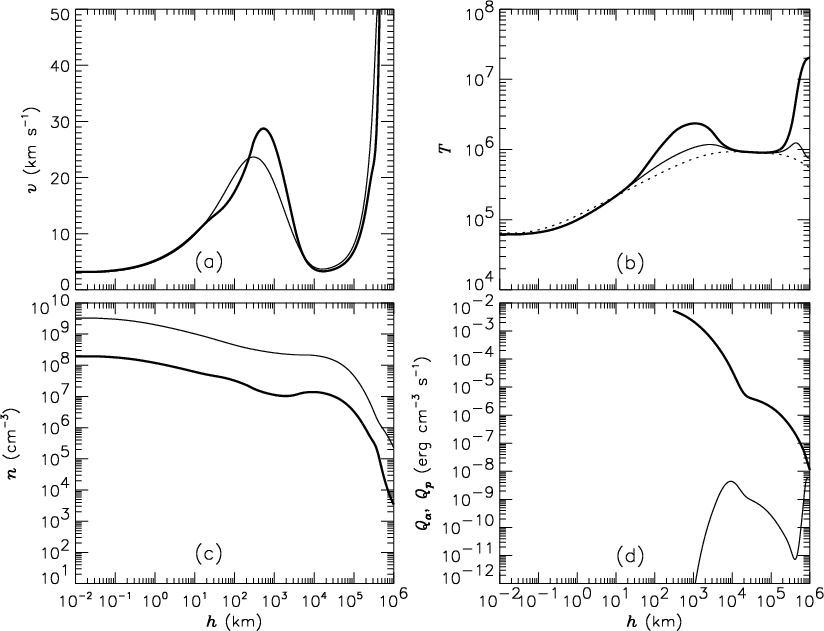

$\begin{figure} \par\includegraphics[width=15.3cm,clip]{H4077F8.ps} \end{figure}$ Figure 8: A small region just above the lower boundary for Model 2. Here $f_{\rm d}=17~000$ Hz.
Open with DEXTER

In the text

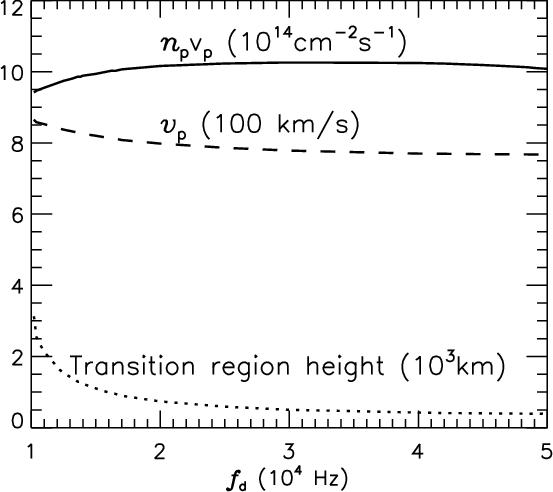

$\begin{figure} \par\includegraphics[width=7.8cm,clip]{H4077F9.ps} \end{figure}$ Figure 9: Proton particle flux density (solid line) at the lower computation boundary, proton speed (dashed line) at $52.5~R_{\rm S}$ , and the transition region height (see text), as a function of $f_{\rm d}$ .
Open with DEXTER

In the text

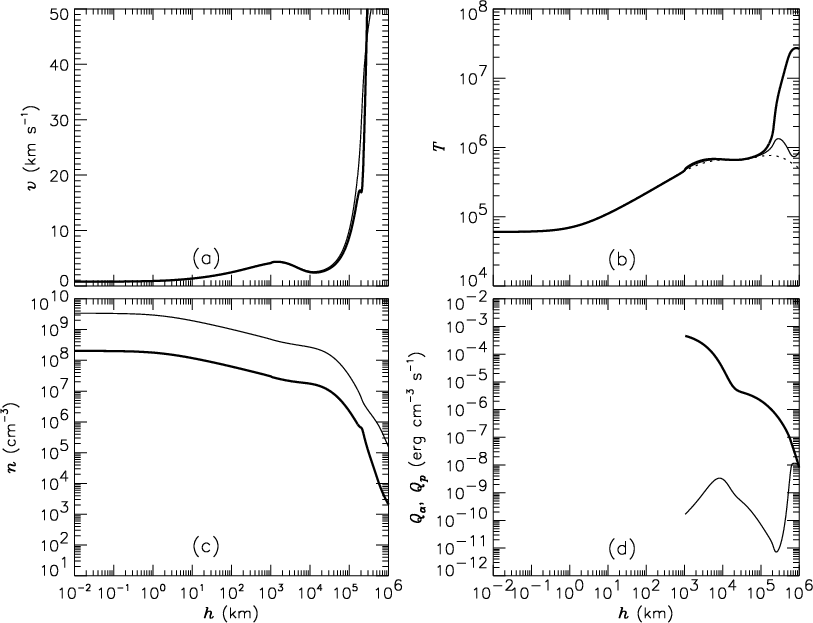

$\begin{figure} \par\includegraphics[width=15.1cm,clip]{H4077F10.ps} \end{figure}$ Figure 10: A small region just above the lower boundary for Model 3. Here $f_{\rm d} =15~000$ Hz.
Open with DEXTER

In the text

$\begin{figure} \par\includegraphics[width=8.6cm,clip]{H4077F1.ps} \end{figure}$	Figure 1: Gyro-frequency of alpha particles in a flux tube, the curve for $f_{\rm H}$ (dashed line) is taken from model 1 in Fig. 2.
Open with DEXTER

$\begin{figure} \par\includegraphics[width=15.3cm,clip]{H4077F3.ps} \end{figure}$	Figure 3: An enlarged version of Fig. 2 in the region just above the lower boundary.
Open with DEXTER

$\begin{figure} \par\includegraphics[width=8cm,clip]{H4077F4.ps}\end{figure}$	Figure 4: Ratio between alpha particle heating term due to waves and collisional heating terms in alpha particle energy energy equation (Hu & Habbal 1999).
Open with DEXTER

$\begin{figure} \par\includegraphics[width=7.7cm,clip]{H4077F5.ps} \end{figure}$	Figure 5: Model 1: thermal pressure of electrons (dotted line), protons (thin solid line), and alpha particles (dashed line). The thick solid line represents the total pressure $n_{\rm e}T_{\rm e}+n_{\rm p}T_{\rm p}+n_\alpha T_\alpha$ .
Open with DEXTER

$\begin{figure} \par\includegraphics[width=7.5cm,clip]{H4077F6.ps} \end{figure}$	Figure 6: Model 1: a) the Alfvén speed (solid line) and the wave amplitude (dashed line); b) ratio $(v_\alpha -v_{\rm p})/v_{\rm A}$ ; c) Proton beta value.
Open with DEXTER

$\begin{figure} \par\includegraphics[width=8.4cm,clip]{H4077F7.ps} \end{figure}$	Figure 7: Contributions to the energy flux density, multiplied by $a(r)/a(R_{\rm S})$ for Model 1: Alfvén wave energy flux (dashed); total enthalpy (dotted); total kinetic energy flux (thin solid); total heat flux (dot-dashed); gravity (dash-triple-dotted); radiation (thick dashed). The thick solid line is the total energy flux density.
Open with DEXTER

$\begin{figure} \par\includegraphics[width=15.3cm,clip]{H4077F8.ps} \end{figure}$	Figure 8: A small region just above the lower boundary for Model 2. Here $f_{\rm d}=17~000$ Hz.
Open with DEXTER

$\begin{figure} \par\includegraphics[width=7.8cm,clip]{H4077F9.ps} \end{figure}$	Figure 9: Proton particle flux density (solid line) at the lower computation boundary, proton speed (dashed line) at $52.5~R_{\rm S}$ , and the transition region height (see text), as a function of $f_{\rm d}$ .
Open with DEXTER

$\begin{figure} \par\includegraphics[width=15.1cm,clip]{H4077F10.ps} \end{figure}$	Figure 10: A small region just above the lower boundary for Model 3. Here $f_{\rm d} =15~000$ Hz.
