All Figures

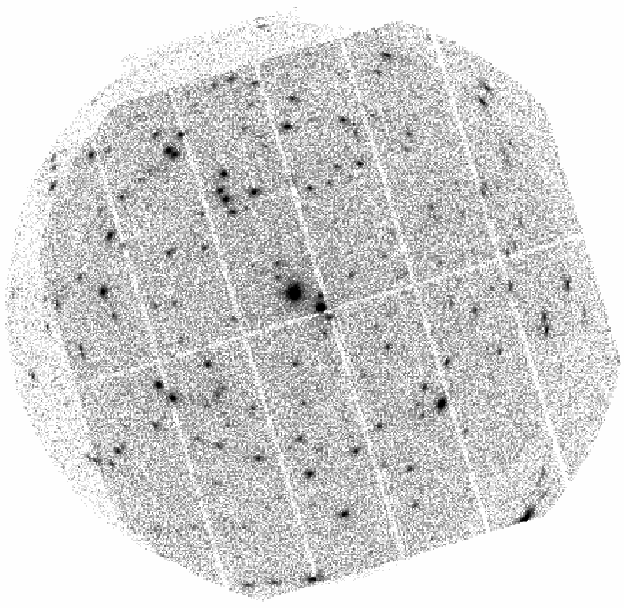

$\begin{figure} \par\includegraphics[width=8.8cm,clip]{3535_f1.ps} \end{figure}$ Figure 1: Composite EPIC (MOS1+MOS2+PN) image of the Praesepe field.
Open with DEXTER

In the text

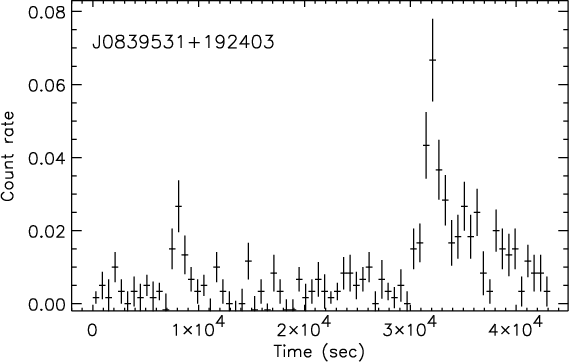

$\begin{figure} \par\includegraphics[width=8.5cm,clip]{3535_f2.ps} \end{figure}$ Figure 2: EPIC MOS1+MOS2+PN background-subtracted light curve of the M-type Praesepe candidate 2MASS J0839531+192403. Data are binned over 600 s.
Open with DEXTER

In the text

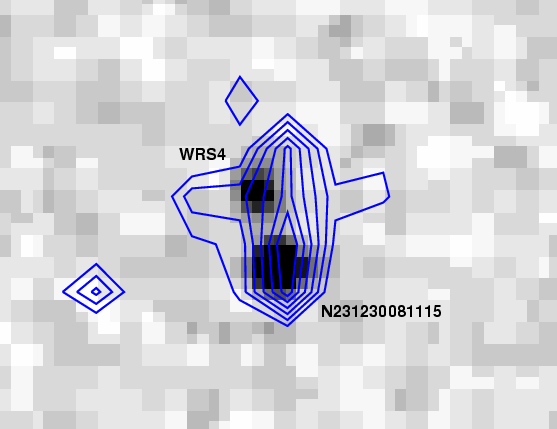

$\begin{figure} \par\includegraphics[width=8cm,clip]{3535_f3.ps} \end{figure}$ Figure 3: 2MASS H-band image of WRS 4 and GSC2 N231230081115, with superimposed the contour levels of the blended X-ray source. X-ray contours correspond to 0.24, 0.32, 0.40, 0.48, 0.56, 0.64 cts/arcsec².
Open with DEXTER

In the text

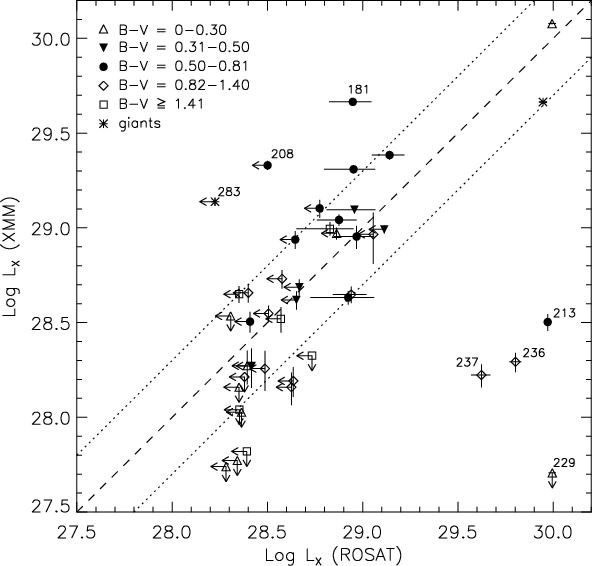

$\begin{figure} \par\includegraphics[width=8.5cm,clip]{3535_f4.ps}\end{figure}$ Figure 4: Comparison of the X-ray luminosities of Praesepe members falling in the XMM- Newton field of view derived from XMM- Newton and ROSAT. Different symbols are used for A stars (open triangles), early F stars (filled triangles), late F-G stars (filled circles), K stars (diamonds), M stars (squares) and giants (asterisks). $1\sigma$ errors are shown for X-ray detections, while upper limits are indicated by an arrow (where error bars are not shown, they are smaller than the symbol size). Dotted lines indicate variations of a factor of two in the X-ray luminosity. Stars that have changed by more than this factor are labeled with their corresponding KW numbers (Klein-Wassink 1927).
Open with DEXTER

In the text

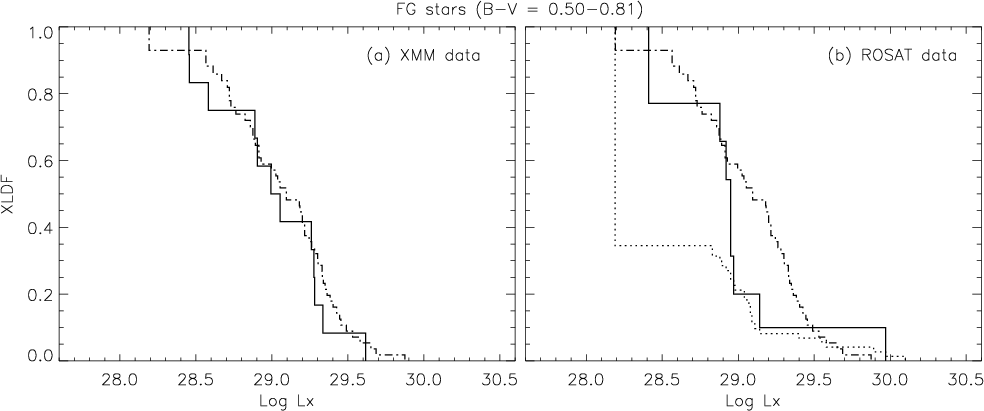

$\begin{figure} \par\includegraphics[angle=90,width=17.5cm,clip]{3535_f5.ps}\end{figure}$ Figure 5: Comparison of the XLDF of Praesepe (solid line) and the Hyades (dash-dotted line) for late F-G dwarf stars in the colour range $0.50 \le B-V \le 0.81$ . In panel a) we show the Praesepe XLDF obtained from the present XMM- Newton data. Panel b) shows the XLDF derived, for the same sample of stars, from the previous ROSAT observations; for comparison, we also show the Praesepe XLDF derived from the entire ROSAT sample (dotted line). The Hyades XLDF was derived from the ROSAT observations by Stern et al. (1995).
Open with DEXTER

In the text

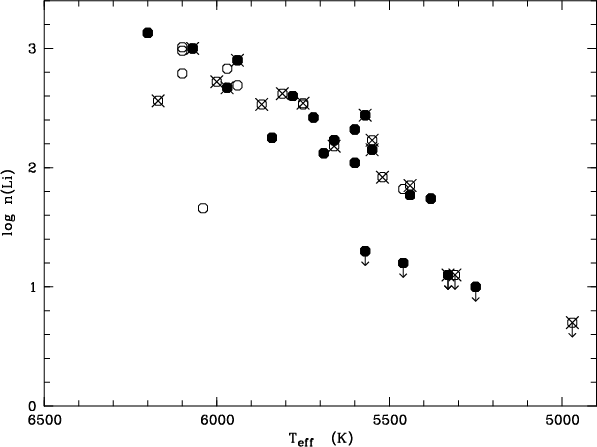

$\begin{figure} \par {\includegraphics[angle=-90,width=8.5cm,clip]{3535_f6.ps} }\end{figure}$ Figure 6: $\log n$ (Li) vs. $T_{\rm eff}$ for Praesepe members with available X-ray data. Lithium data have been retrieved from Soderblom et al. (1993). Filled symbols denote stars with $\log L_{\rm X} \leq 28.6$ erg s^-1, while crossed symbols indicate photometric and/or spectroscopic binaries.
Open with DEXTER

In the text

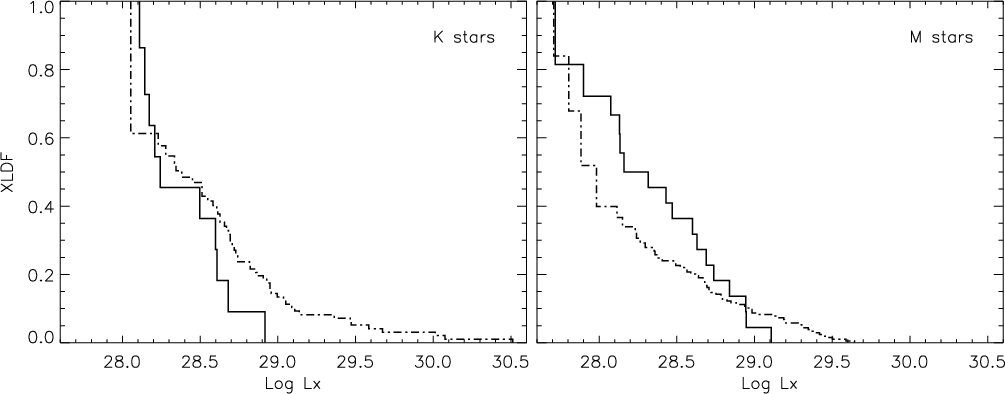

$\begin{figure} \par {\includegraphics[angle=90,width=17.5cm,clip]{3535_f7.ps} } \end{figure}$ Figure 7: Comparison of the XLDF of Praesepe (solid line) and the Hyades (dash-dotted line) for K dwarfs ( $0.82 \le B-V \le 1.40$ , left panel) and M dwarfs ( $B-V \ge 1.41$ , right panel). The Hyades XLDF was derived from the ROSAT observations by Stern et al. (1995) and Pye et al. (1994).
Open with DEXTER

In the text

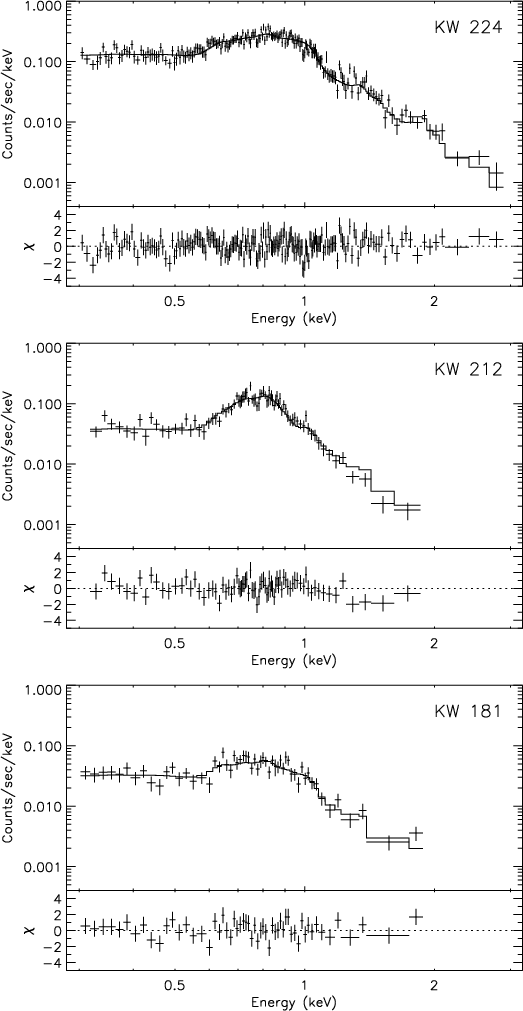

$\begin{figure} \par {\includegraphics[width=8.5cm,clip]{3535_f8.ps} }\end{figure}$ Figure 8: PN spectra of the three brightest sources in the Praesepe field. The best-fit model is also shown. For KW 212 and KW 181 the emission is dominated by background above 2 keV.
Open with DEXTER

In the text

$\begin{figure} \par\includegraphics[width=8.8cm,clip]{3535_f1.ps} \end{figure}$	Figure 1: Composite EPIC (MOS1+MOS2+PN) image of the Praesepe field.
Open with DEXTER

$\begin{figure} \par\includegraphics[width=8.5cm,clip]{3535_f2.ps} \end{figure}$	Figure 2: EPIC MOS1+MOS2+PN background-subtracted light curve of the M-type Praesepe candidate 2MASS J0839531+192403. Data are binned over 600 s.
Open with DEXTER

$\begin{figure} \par\includegraphics[width=8cm,clip]{3535_f3.ps} \end{figure}$	Figure 3: 2MASS H-band image of WRS 4 and GSC2 N231230081115, with superimposed the contour levels of the blended X-ray source. X-ray contours correspond to 0.24, 0.32, 0.40, 0.48, 0.56, 0.64 cts/arcsec².
Open with DEXTER

$\begin{figure} \par {\includegraphics[angle=-90,width=8.5cm,clip]{3535_f6.ps} }\end{figure}$	Figure 6: $\log n$ (Li) vs. $T_{\rm eff}$ for Praesepe members with available X-ray data. Lithium data have been retrieved from Soderblom et al. (1993). Filled symbols denote stars with $\log L_{\rm X} \leq 28.6$ erg s^-1, while crossed symbols indicate photometric and/or spectroscopic binaries.
Open with DEXTER

$\begin{figure} \par {\includegraphics[angle=90,width=17.5cm,clip]{3535_f7.ps} } \end{figure}$	Figure 7: Comparison of the XLDF of Praesepe (solid line) and the Hyades (dash-dotted line) for K dwarfs ( $0.82 \le B-V \le 1.40$ , left panel) and M dwarfs ( $B-V \ge 1.41$ , right panel). The Hyades XLDF was derived from the ROSAT observations by Stern et al. (1995) and Pye et al. (1994).
Open with DEXTER

$\begin{figure} \par {\includegraphics[width=8.5cm,clip]{3535_f8.ps} }\end{figure}$	Figure 8: PN spectra of the three brightest sources in the Praesepe field. The best-fit model is also shown. For KW 212 and KW 181 the emission is dominated by background above 2 keV.
Open with DEXTER
