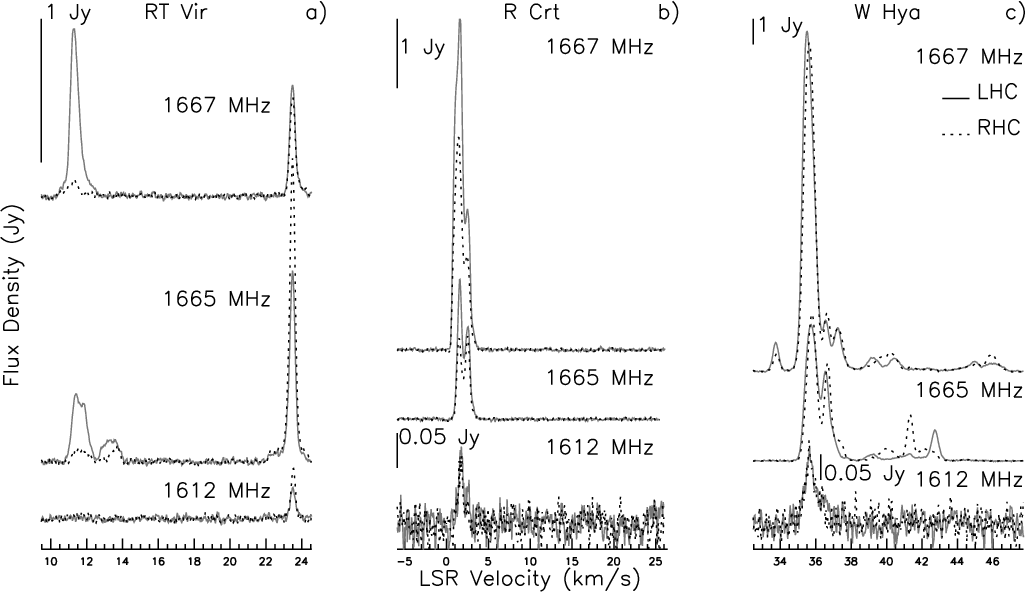

$\begin{figure} \par\includegraphics[width=14.5cm,clip]{Fc242_f1.ps} \end{figure}$ Figure 1: a) Integration-time weighted average of all RT Vir spectra taken from 2001/04/19 to 2002/10/15 at 1667, 1665 and 1612 MHz in both LHC and RHC polarization. b) Same for R Crt between 2001/08/26 and 2002/10/08. c) Same for W Hya between 2001/02/27 and 2002/10/15. The 3 ${\sigma }$ for the averaged spectra range from 0.037 Jy to 0.04 Jy.
Open with DEXTER

In the text

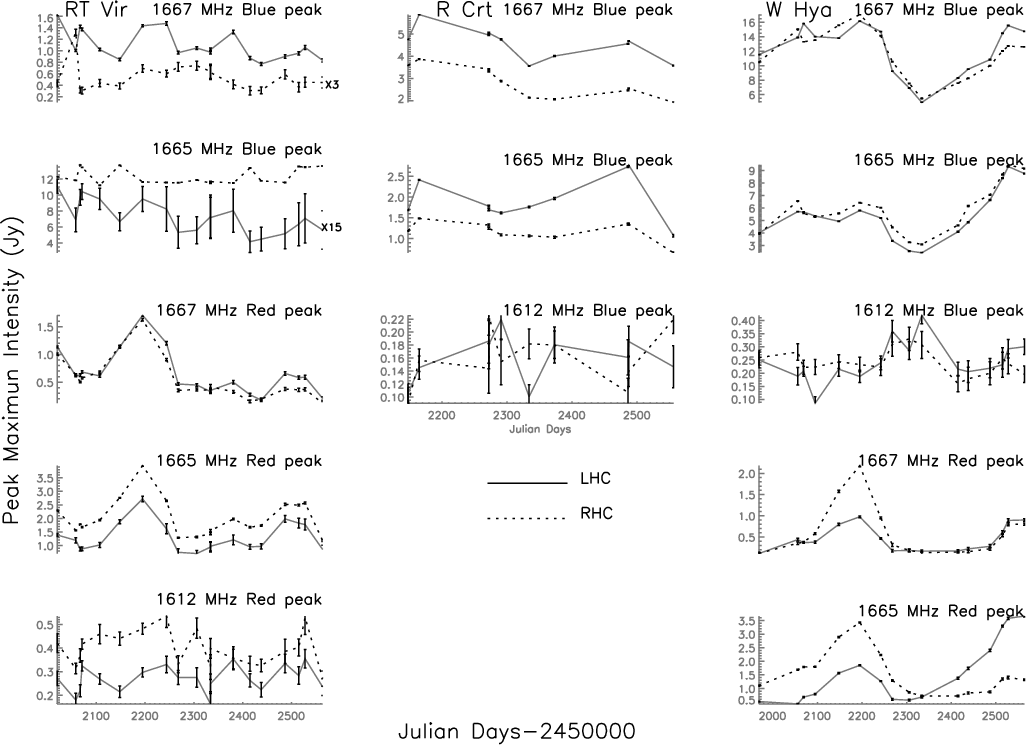

$\begin{figure} \par\includegraphics[width=14.5cm,clip]{Fc242_f2.ps} \end{figure}$ Figure 2: Variability of the peak maximum intensity of the 3 sources over the period of the observations. The ${\sigma }$ reached for each observation is given by the size of the error bars displayed.
Open with DEXTER

In the text

$\begin{figure} \par\includegraphics[width=14.5cm,clip]{Fc242_f1.ps} \end{figure}$	Figure 1: a) Integration-time weighted average of all RT Vir spectra taken from 2001/04/19 to 2002/10/15 at 1667, 1665 and 1612 MHz in both LHC and RHC polarization. b) Same for R Crt between 2001/08/26 and 2002/10/08. c) Same for W Hya between 2001/02/27 and 2002/10/15. The 3 ${\sigma }$ for the averaged spectra range from 0.037 Jy to 0.04 Jy.
Open with DEXTER

$\begin{figure} \par\includegraphics[width=14.5cm,clip]{Fc242_f2.ps} \end{figure}$	Figure 2: Variability of the peak maximum intensity of the 3 sources over the period of the observations. The ${\sigma }$ reached for each observation is given by the size of the error bars displayed.
