A&A 438, 785-792 (2005)
J.-U. Pott1,2 - A. Eckart1 - M. Krips1,3 - T.P. Krichbaum4 - S. Britzen4 - W. Alef4 - J.A. Zensus4
1 - I. Physikalisches Institut, University of Cologne, Zülpicher Strasse 77, 50939 Köln, Germany
2 - European Southern Observatory, Karl-Schwarzschild-Str. 2, 85748 Garching b. München, Germany
3 - Institut de Radio-Astronomie Millimétrique (IRAM), 300 rue de la piscine, 38406 Saint-Martin-d'Hères, France
4 - Max-Planck-Institut für Radioastronomie, Auf dem Hügel 69, 53121 Bonn, Germany
Received 22 November 2004 / Accepted 25 February 2005
Multi-epoch GHz Very Long Baseline Interferometry (VLBI) data of the radio-loud quasar J1101+7225 were analyzed to estimate the proper motion of extended optically thin jet components. Two components separated from the core could be mapped at 1.66 GHz, which is consistent with earlier observations. In one case we found evidence of high apparent superluminal motion ( ) at large (deprojected) distances to the core . Typically in other quasars such high separation velocities are only found much closer to the core component. Furthermore the Doppler factor, the magnetic field strength, and the angular size of the optically thick core were derived using published X-ray data. Analysis of 5 GHz VLBI data reveals the existence of further jet components within the central 5 mas. Additionally the data published so far on the GHz-spectrum were discussed at all angular resolutions. J1101+7225 turns out to be a standard quasar for studying different aspects of radio jet kinematics out to kpc-scales.
Key words: galaxies: active - galaxies: jets - galaxies: kinematics and dynamics - quasars: individual: J1101+7225 - galaxies: nuclei
Table 1: General properties of J1101+7225.
In Table 1 the general properties of J1101+7225 are summarized to introduce the quasar. B02 estimated the position of J1101+7225 with (sub)mas-accuracy (Table 1), which is necessary for high-sensitivity phase-referencing experiments. In Sect. 2 details are given concerning the VLBI observations that are the basis for this article. Flux densities, the resulting maps, and a kinematical analysis of the mapped structure are presented in Sect. 3. Finally the results are discussed and summarized in Sect. 4.
Table 2: Details of the observing schedule of the EVN observation with eight antennae of J1101+7225.
The quasar J1101+7225 was observed as a calibrator source within a larger European VLBI Network (EVN) experiment. The observations were conducted during the period 13-14 Feb. 2002, 21h-09h UT, while the scans of J1101+7225 typically lasted for three minutes at a total observing time of 1.6 h. We observed at 18 cm with the 100 m antenna of the Max-Planck Institut für Radioastronomie (MPIfR) at Effelsberg, Germany, the 76 m antenna at Jodrell Bank, UK, the 32 m antenna at Medicina, Italy, the 25 m antenna at Onsala, Sweden, the 25 m antennae at Shanghai and Urumqi, China, the 32 m antenna at Torun, Poland, and the m antenna array at Westerbork, the Netherlands. Details concerning the observing mode are given in Table 2. After the observations, the data were correlated at the VLBI correlator of the MPIfR in Bonn, Germany, and imported into the Astronomical Image Processing System (AIPS) via MK4IN (Alef & Graham 2002). The data were fringe-fitted and calibrated in a standard manner with the AIPS package and imaged using the DIFMAP VLBI package (Pearson et al. 1994).
Further we present 5 GHz VLBI maps of J1101+7225, obtained in VLBA and global VLBI observations as part of a multi-epoch VLBI study (the Caltech-Jodrell Bank flat-spectrum sample CJF; Taylor et al. 1996; Britzen 2002). These observations aim at a statistical investigation of the kinematics of a complete sample of AGN (Britzen 2002; Britzen et al. in prep.). The sources were observed in 5.5 min snapshot observations to determine the position and motion of jet components in the central 5 mas. The data were recorded over 32 MHz total bandwidth broken up into 4 baseband channels with 1-bit sampling. The recorded data were correlated in Socorro, USA.
In Sect. 3.2 we include the VLBI-maps of J1101+7225 published earlier to analyze the evolution of the structure found. T95 observed the quasar with global VLBI at 1.66 GHz in the CJ1 survey which later on became a part of the CJF sample. The other map at 2.3 GHz was reduced from VLBA data (B02) via automatic imaging using the Caltech DIFMAP package.
Table 3: Measured radio flux densities or peak brightnesses of J1101+7225, obtained with single-dish telescopes, local interferometers, and VLBI. The VLBI flux densities are our fitted core flux densities as presented in Tables 5 and 7.

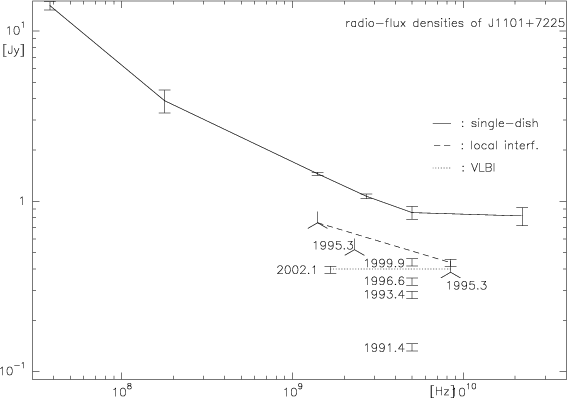

|Figure 1: The radio spectrum of J1101+7225 at different angular resolutions, corresponding to Table 3. All VLBI measurements are labelled with the observing date. While the flux densities are plotted with error bars, the stars indicate peak brightnesses. Because the peak brightnesses may underestimate the flux densities, the corresponding spectra are dotted / dashed (see Sect. 3.1).|
|Open with DEXTER|
The flux density of J1101+7225 has been measured occasionally during the last two decades. In Table 3 we summarize the measurements at the various frequencies. Based on these data we calculated the spectrum, shown in Fig. 1. The single-dish observations show a curved radio spectrum with a steep spectrum at low MHz frequencies ( ) and considerable flattening towards higher frequencies ( ; ). The spectral trend of the Very Large Array (VLA) measurements follows the single dish measurements. The slightly flatter shape ( ) plotted in Fig. 1 may overestimate the real spectrum, because only the peak brightness is published at 1.4 GHz.
In contrast with the EVN we measured a core flux density of mJy at 1.66 GHz. In combination with the core flux densities obtained at 5 GHz and the lower flux density limits given by the peak brightnesses of B02, this confirms a flat spectral shape (within the scatter due to different observations and epochs) at GHz-frequencies, which is shown as a dotted line in Fig. 1. These findings indicate that the continuous flattening of the single-dish spectrum is evoked by superposition of spectrally steep components, still unresolved with local interferometry but fully resolved and/or separable at VLBI resolution, and by the flat VLBI core, which is still nearly unresolved at the observing frequencies of 1.66 GHz and 2.3 GHz. Königl (1981) calculated such flat GHz-spectra of compact synchrotron sources, involving optical thickness for the synchrotron radiation due to synchrotron self-absorption. Thus most of the central radio emission of J1101+7225 at these frequencies is emitted by a compact, unresolved core.
A significant fraction (up to 50%) of the single-dish flux density of the whole galaxy is radiated by the inmost region, still unresolved by interferometric observations. Relativistic beaming models explain the extraordinary luminosity of radio-loud cores with unresolved radio-jet components approaching nearly along the line of sight at relativistic velocities (e.g. Blandford & Königl 1979, and see Sect. 3.4).
Table 4: The published single-dish flux densities at 5 GHz to investigate the source variability. (1) observed at 4.9 GHz and corrected to 5 GHz via a spectral index ; (2) at 4.85 GHz; (3) at 4.75 GHz; (a): Kühr et al. (1981); (b): Gregory et al. (1996); (c): Gregory & Condon (1991); (d): Reich et al. (2000).
One consequence of these models is a straightforward explanation of the often observed variability of the core flux density by small variations in the jet orientation with respect to the observer. This variability is still observable with single-dish observations in case of core-dominated GHz emission. Table 4 presents single-dish radio flux densities, measured at 5 GHz at different epochs. The values show a flux density variation up to 20% between 1986 and 1987. This variability has to be taken into account and leads to significant changes of short-range spectral indices in the GHz domain from different observing epochs. The underlying variability of the VLBI core flux density was observed at 5 GHz (Table 3) and shows the same minimum at around 1992. Therefore only the later measurements were taken in Fig. 1 to approximate the spectral index of the VLBI core. The observed flux density variability of the core component strongly supports the concept of beamed radio emission, which can be confirmed in Sect. 3.4.

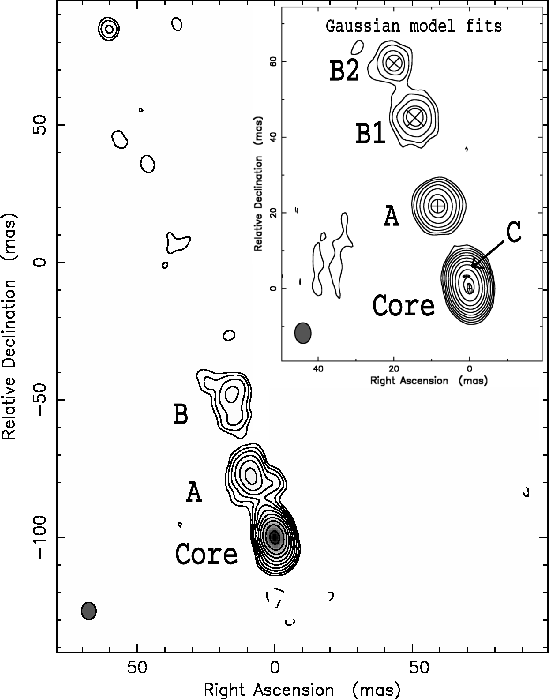

|Figure 2: Cleaned map of the EVN observation of J1101+7225 at 1.66 GHz. The map shows a peak brightness of 407 mJy/beam. The contour levels are -0.15, 0.15, 0.3, 0.6, 1.2, 2.4, 4.8, 9.6, 19.2, 38.4, 76.8% of the peak brightness, and the beam size is mas at position angle (PA) of 4. In the upper right corner the Gaussian model fit representation of the VLBI image is given (with the same contour levels, but now with respect to a 399 mJy/beam peak brightness), obtained by fitting Gaussian components to the visibility data (beam: mas at PA 2). By this technique the extended structure at 50 mas distance to the core could be clearly resolved into two components.|
|Open with DEXTER|
Table 5: The best fit Gaussians as mentioned in the text. a labels the major axis of elliptical Gaussians. A, B1, and B2 were only fitted by circular Gaussians, because the locations of components of lower flux density can be fitted more reliably with less degrees of freedom. The flux density errors are , the uncertainties of the location, and size of the Gaussians range between 0.2-0.5 of the beamsize depending on the respective flux density.
In Fig. 2 we present the map made from the EVN observation in Feb. 2002. Clearly two extended regions are visible beside the core with more than 4.8% and 1.2% of the core peak brightness. They are labeled with A and B, respectively. More information about the underlying source structure can be retrieved by fitting circular and elliptical Gaussians to the visibility data and optimizing the fit to the amplitudes and closure phases (cf. Pearson 1995). The structure in 200 mas distance to the core in N-NE direction could be confirmed neither by applying different taper to the uv data nor by a respective model component. Our best model of the source structure is given in Table 5 and the corresponding map is inserted in Fig. 2. The measurement errors on the model parameters flux density, relative position, and source size are given in the respective tables. Their estimation is based on the comparison of different model fits, as described by Gómez & Marscher (2000). A more theoretical approach (Fomalont 1989) based on the dynamic range of the map gives comparable magnitudes.
This analysis shows that the extended B component from the cleaned map is a blend of at least two components (B1, B2). Furthermore within the central 5 mas a significant fraction of the flux density is radiated by an extended source beside the dominating unresolved core at a distance of a few mas to the core (see Sect. 3.3). This region close to the limit of resolution of the 1.66 GHz observations is studied in more detail in the next Sect. (3.3) at higher frequencies.
T95 detected both A and B, too. A detailed comparison of our data with the Gaussian component model of T95 reveals a high separation velocity of the A-component at an unusually large deprojected distance to the core. In contrast to Table 5, they could fit three elliptical Gaussian components to the region around A and one to the B region. Because the angular extensions of both regions (A and B) are close to the limit of resolution, we prefer the blend interpretation of this situation. Our A component does not correspond to one of the three fitted components of T95 but does correspond to a flux density-weighted mean of all three components; and vice versa, the mean of our B1 and B2 components corresponds to the one component of that region fitted by T95 to their visibility data. Although the full width at half maximum (FWHM) of the circular Gaussians B1 and B2 (cf. Table 5) are not overlapping, the modeling process showed that due to their low flux densities, the sizes of the B components are insecure up to a factor of two. It is also possible that a third component exists, slightly too weak to be fitted. Thus the used flux density-weighted mean appears to be the most adequate presentation.
Table 6: The angular distances between the core and the fitted Gaussian jet components (or their flux density weighted mean; cf. text). The errors reflect uncertainties in the fitting process and increase with decreasing component flux density, while derivation of the apparent velocities is described in the text. The position angles of the components did not change significantly during the observing epochs and were omitted. In the last column the read out values from a map by B02 are given for comparison, but cannot be included in the calculations due to lack of a Gaussian model fit.
We determined, therefore, the apparent motion of the radio jet structures A and B with respect to the core (Table 6), where in case of several fit components the labels refer to the flux density-weighted mean of these. Angular velocities are presented in Table 6 on the right side. They are confirmed by the snapshot VLBA map at 2.3 GHz of B02 (last column in Table 6). We did not directly include these data in the velocity calculation. The introduced uncertainties due to the different observing frequency and the lack of a Gaussian modelfit would annihilate the increased calculation accuracy. To demonstrate the apparent angular motion, we show the three VLBI maps in one figure in Fig. 3 on a common angular scale and rotated by about .
The dimensionless linear
are calculated via

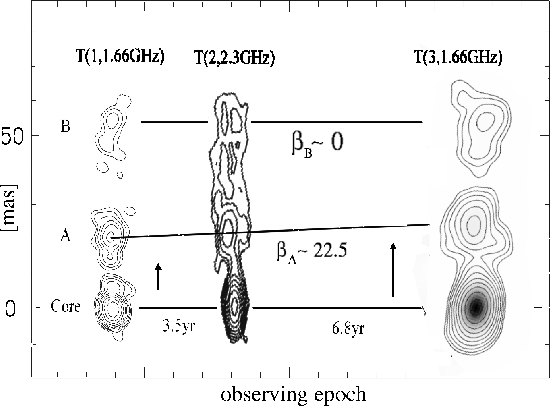

|Figure 3: The cleaned maps are aligned vertically (rotation about ), which is justified by the fact, that no significant change of the position angle of the jet axis was observed. The apparent linear velocities of the fitted Gaussian components (cf. Table 6) are given. The first map by T95 at T(1,1.66 GHz) shows a peak brightness of 476 mJy/beam, the contour levels are -2, -1, 1, 2, 4, 8, 16, 32, 63, 127, 253 mJy/beam, and the beam size is mas at PA 90. The second map by B02 at T(2,2.3 GHz) shows a peak brightness of 520 mJy/beam, the contour levels are -3, 3, 6, 12, 24, 48, 96, 192, 384 mJy/beam, and the beam size is mas at PA 20. The beam PAs given here refer to the unrotated coordinate system.|
|Open with DEXTER|

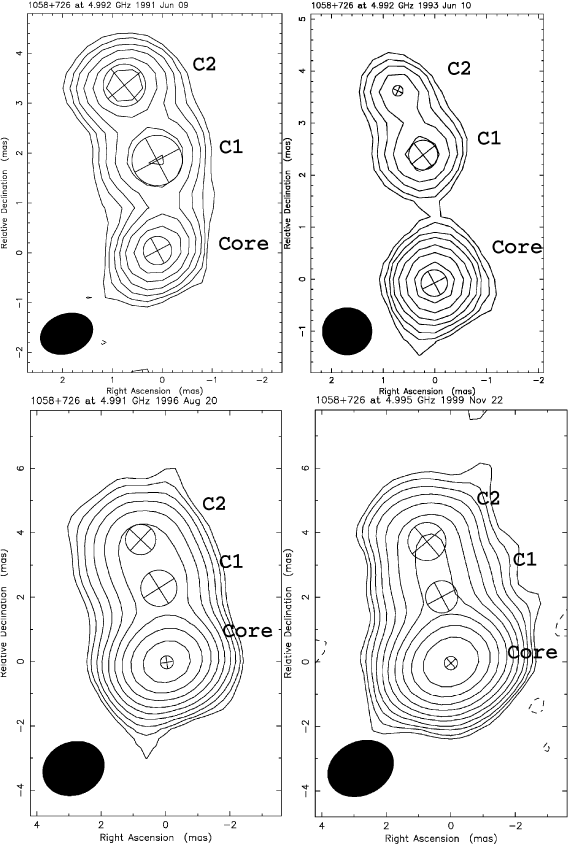

|Figure 4: 5 GHz maps of the central 5 mas. The details are given in the form: peak brightness; contour levels in %; beam size. First epoch: 0.097 mJy/beam; levels are -8, 8, 12, 18, 27, 40.5, 60.8%; beam: mas at PA . Second epoch: 0.209 mJy/beam; levels are 6, 9, 13.5, 20.3, 30.4, 45.6, 68.3%; beam: mas at PA . Third epoch: 0.314 mJy/beam; levels are 1.6, 2.56, 4.1, 6.55, 10.5, 16.8, 26.8, 42.9, 68.7, %; beam: mas at PA . Fourth epoch: 0.417 mJy/beam; levels are -0.9, 0.9, 1.44, 2.3, 3.69, 5.9, 9.44, 15.1, 24.2, 38.7, 61.8%; beam: mas at PA . Crosses indicate the positions of circular Gaussian modelfit components. The detailed model parameters are presented in Table 7.|
|Open with DEXTER|

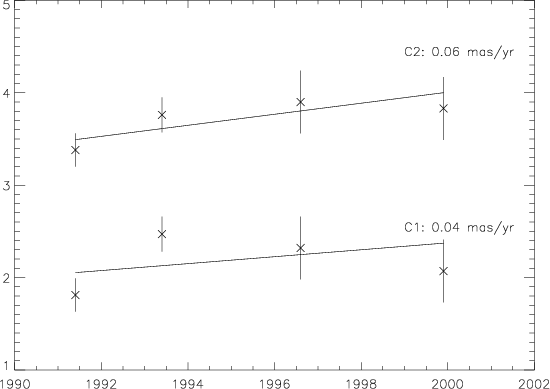

|Figure 5: Evolving core-distance (in mas) of the best fit Gaussians, taken from Table 7 over the years. A least-squares fit of a linear time-dependence is shown with respect to the errorbars. The standard deviation of the resulting apparent separation velocities is mas yr-1.|
|Open with DEXTER|
Table 7: The best fit circular Gaussians of the 5 GHz data over four epochs. The flux density errors are , and the uncertainties of the location and size of the Gaussians range between 0.2-0.5 of the beam size depending on the respective flux density.
The higher-resolution maps of the 5 GHz snapshots of Britzen et al. (in prep.) are presented in Fig. 4. They explicitly show that the Core region of the 1.66 GHz map is not totally compact on the 1 mas scale of the 5 GHz observations. Extended Gaussian components could be fitted to the data beside the dominant central source. This was already suggested by the C-component, fitted to the 1.66 GHz data (Table 5), and it confirms the power of the model fits in analysing the data.
In Table 7 the fitted Gaussian components are shown.
A linear fit of the core-distance with respect to the observing epochs (Fig. 5) demonstrates the apparently superluminal motion of both components and shows mean separation velocities of
A closer look at the modelfits in Table 7 reveals some trends over the observing epochs. The separation motion seems to decrease at later epochs in correlation with a decrease in the respective component brightnesses and an increasing position angle of C1 from 0.2 to 7.8 over the four epochs. With the given, relatively poor time-resolution of four observations within eight years it is not possible to fit these trends reliably. Nevertheless in combination with the different calculated angles in Eq. (1) and (3), they can be interpreted as indications of a spatially curved jet structure. Different line-of-sight orientations account for different brightnesses, position angles, and apparent separation velocities.
The core flux density has strongly increased over the four epochs, which suggests that over the later epochs either a new jet component has emerged from the compact core region or the unresolved jet has changed its orientation with respect to the line of sight. During the fitting process we found indications that indeed a third component in sub-mas distance to the core is hidden; but probably due to its proximity to the core, this new component could not be fitted separately without doubts.
On the other hand, the increased brightness of the core at the later epochs may affect uncertainties in the model fitting process of the close C components. The values of one fifth of the beam size (cf. caption of Table 7 and discussion in Sect. 3.2), which are used for the linear fit in Fig. 5, may still slightly underestimate the real errors due to increased overblending of the C components by the close core radiation. Because this effect is not quantifiable with our data, we kept using these errors.
The idea of a jet curvature over the observed core-distances does not rule out a ballistic situation at the origin of the jet, as was described recently by Stirling et al. (2003). As origin of the radio jet in BL Lacertae they found a "precessing nozzle'' which ejects the single components along straight trajectories. But outside 2 mas (corresponding to 0.4 mas at the redshift of J1101+7225) these trajectories became curved as well.
Summarizing the motion of all detected jet components including A and B, the situation resembles the different measured apparent component speeds of the radio jet of the S5 quasar 0836+710 which extends over more than 150 mas at (Hummel et al. 1992) and where no systematic correlation between the component speed and its distance to the core seems to be present (Otterbein et al. 1998, and references therein).
Our VLBI-data of J1101+7225 allow, in combination with published data at other wavelengths, a straightforward analysis of the observed VLBI core flux density by applying a relativistic beaming model. The crucial idea of such models is that due to relativistic bulk motion of the sources, the radiation is amplified or attenuated significantly in the rest-frame of the observer, depending on the direction of motion with respect to the line of sight. Of course the bulk motion cannot be observed directly due to the lack of spatial resolution. But we share the common assumption that the X-ray emission of the core consists mainly of synchrotron photons scattered to shorter wavelengths via the inverse Compton effect. Marscher (1983) quantitatively derived the connection between radio and X-ray flux densities, their spectral indices, and the Doppler factor for a homogeneous source of spherical shape. This implies that can be estimated from the other measured values.
In Table 8 the ingoing values of the calculations are given. The notation of the radio properties follows Marscher (1983). Typically the unresolved core consists of several components each of which dominates the unresolved spectrum at a different frequency (e.g. Marscher 1988). Therefore we can assume that the measured properties at 5 GHz describe the turn-over point (index m) of one underlying source component and that the formulae can be applied for that component. The X-ray measurements were taken independently in the 1990s. Therefore a mean of the different 5 GHz measurements is the most appropriate way to combine both datasets.
Table 8: The radio values characterize the compact core at 5 GHz as discussed in Sect. 3.4. The turn-over properties are mean values of the model fits in Table 7. The cut-off frequency of the synchrotron spectrum is extrapolated from the optical-radio spectrum. The right column gives the calculated values.
The mean measured Gaussian source size is transformed into assuming an underlying circular source shape (see Marscher 1983 and Table 8). The angular source size should be understood as an order of magnitude estimate. Further we can use only the measured peak flux density in contrast to the extrapolated one as foreseen by Marscher (1983). This results in a slight underestimation of . The calculations lead to and a magnetic field strength of B0=(0.15+0.2-0.12) G of the unresolved synchrotron-self absorbed source (cf. Table 8).
However further radio components, peaking at higher frequencies, and other processes than inverse Compton scattering may contribute to the observed X-ray flux densities. This results in a probable underestimation of and B0. In fact a flat to inverted spectral index as indicator for several components is suggested by the VCS1 map at 8.4 GHz (B02). Although the lack of a detailed model fit inhibits reproducible calculations, visual inspection of the map reveals a dominating core, probably unresolved. Under the latter assumption the given peak brightness resembles the flux density of the component in mid 1995, which is slightly larger than the respective values of the 5 GHz experiment at that time (cf. Fig. 1).
With the angular source size and the Doppler factor, the intrinsic brightness temperature can be calculated as
Furthermore we calculated the equipartition Doppler factor
(1994) and Güijosa & Daly (1996), which implies that the radiating
particles have the same energy as the penetrating magnetic field. The
results (assuming as above h=0.71)
As in the previous section, we now adopt that the intrinsic velocities along
the jet are equal to the highest minimal intrinsic velocity, as given by the
apparent separation speeds. Then the angle between the direction of motion and the
line of sight can be estimated from the Doppler factor:
For the first time the kinematics of the non-thermal radio jet components of J1101+7225 were estimated. We calculated the apparent motions of the two extended components, observable at low GHz-frequencies from VLBI-measurements. We found an apparent superluminal separation speed of for the A-component over the past decade at an exceptionally large deprojected distance to the core . The even more distant B-component was found to be stationary within the errors at a core-distance of .
Furthermore a Doppler factor was estimated for the compact optically thick (at the observing frequencies) synchrotron radiation of the core of J1101+7225. The strength of the magnetic field, which is necessary for the synchrotron process, was estimated to be B0=(0.15+0.2-0.12) G. The estimated size of the optically thick nuclear component is close to the resolution limit of an interferometric observation at cm-wavelengths, which suggests, in combination with the estimated Doppler factor and intrinsic jet velocities, that additional VLBI-components could appear outside the core in the future.
More observations of these nuclear components could reveal, if a deceleration of the A-component appears while A is approaching the B-component. This would be similar to the well known case of 4C 39.25 (Alberdi et al. 1993a). Deceleration at these distances from the core can confirm an interaction of the jet component with the circumnuclear matter of the host galaxy as described by Taylor et al. (1989) for Seyfert nuclei. Such an interaction is strongly supported by comparing the VLBI maps presented here with the jet geometry as observed with the VLA (Xu et al. 1995). In their 1.4 GHz map two corresponding radio jets appear, extending along 5'' from the core. While the southwestern jet extends in the opposite direction of the VLBI jet, the northeastern VLA-jet does not coincide with the position angle of the VLBI structure. Instead it appears to be bent towards a northwesternly direction, perhaps induced by ram pressure of the surrounding material.
Apparent superluminal velocities are explained by motion towards the observer at relativistic velocity. The additionally presented 5 GHz maps and Gaussian modelfits of the central 5 mas show further jet components with significantly smaller apparent velocities. Thus the separation velocities of the different VLBI radio jet components of J1101+7225 show no simple correlation with their distance to the core. But this does not rule out a constant intrinsic velocity, because already small variations of the angle between jet and the line of sight can introduce variations of the apparent speeds of the observed order of magnitude. In the case of such a constant intrinsic velocity along the whole jet, the very high velocity, derived from the A-component, has to be chosen. Such high intrinsic velocities explain both the large extension of the radio jet over several arcsec as estimated with the VLA and the high luminosity of the core.
We believe that our findings may indicate a helical bending of the jet, where the fast components are moving in a section that is curved towards the observer. This is supported by the estimated differing jet orientations with respect to the line of sight. Zensus et al. (1995) could explain the acceleration of a jet component of 3C 345 by a curved jet of constant intrinsic bulk velocity. It has been shown that helical jet patterns result from Kelvin-Helmholtz and current-driven jet instabilities in relativistic flows (Birkinshaw 1991; Istomin & Pariev 1996).
Beside this interpretation of the observed motion as an intrinsic bulk motion of the radiating plasma, shock waves may travel along the jet (Alberdi et al. 1993b). Different component velocities may also be observed if the slower components are trailing in the wake of faster ones. This hydrodynamical explanation could be adopted successfully to the complex component motion in the radio jet of the radio galaxy 3C 120 (Gomez et al. 2001). Hardee et al. (2001) found mechanisms to produce differentially moving and stationary features in a jet by analyzing the relativistic hydrodynamic equations.
Thus the nuclear region of J1101+7225 provides the rare possibility of observing the total range of jet kinematics including apparent superluminal separation velocities even far out of the central parsec-region. The results presented here can give observational constraints far from the jet origin for numerical jet models.
We are grateful to the correlator team of the MPIfR in Bonn for their assistance. The European VLBI Network is a joint facility of European, Chinese, South African, and other radio astronomy institutes funded by their national research councils. The National Radio Astronomy Observatory is a facility of the National Science Foundation operated under cooperative agreement by Associated Universities, Inc. This work was supported in part by the Deutsche Forschungsgemeinschaft (DFG) via grant SFB 494.
